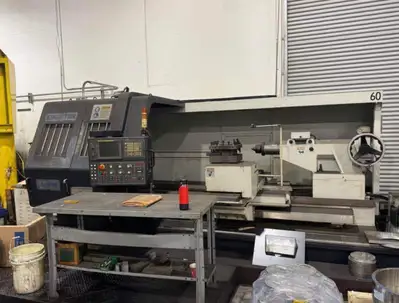

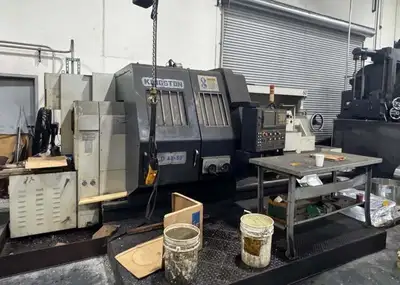

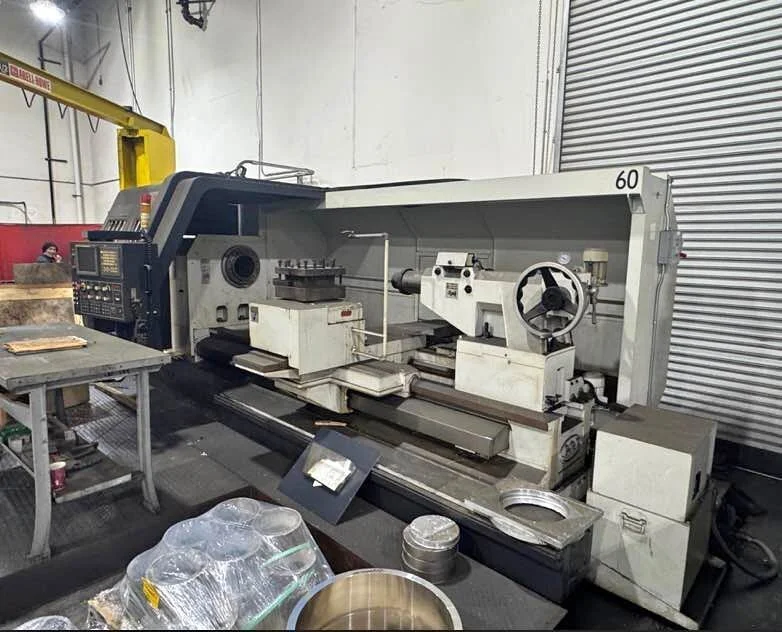

UsedCNC lathe with Fanuc 21iTF controller, 50 HP, V8 hydraulic turret, and MT#6 quill tailstock. 48" swing, 80" machining length. Features hardened box ways and a rapid traverse up to 314 in/min. No chucks included.
Core Capacities
Swing Over Bed: 48"
Distance Between Centers: 80"

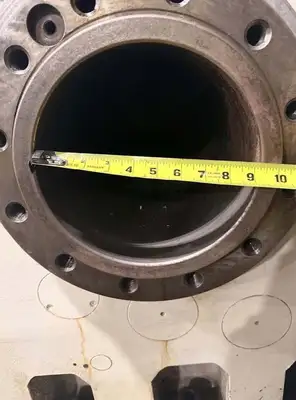

Spindle Bore : 9"

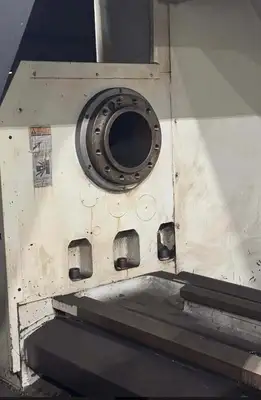

Spindle Nose: A2-28
Power and Motion
Main Spindle Motor: Standard 50 HP
Servo Motors: 5.3 HP for the X-axis and 8.0 HP to 9.4 HP for the Z-axis
Rapid Traverse: Approximately 236 in/min on the X-axis and up to 314 in/min on the Z-axis.
Bed Width: 28.5 inches.

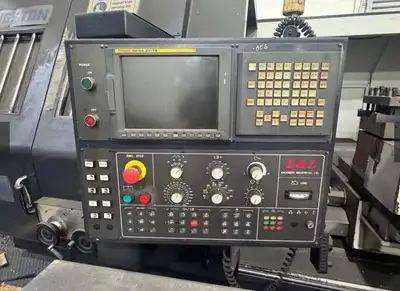

Fanuc 21iTF controller
Standard V8 Hydraulic Turret
Tailstock: Heavy-duty MT#6 quill with a load capacity of approximately 26,000 lbs.
Way Construction: Hardened and ground box ways on the cross slide and carriage
NO CHUCKS AVAILABLE FOR THIS MACHINE
