2020 DOOSAN DVF 5000
Have one to sell?
ConditionUsed
1 available

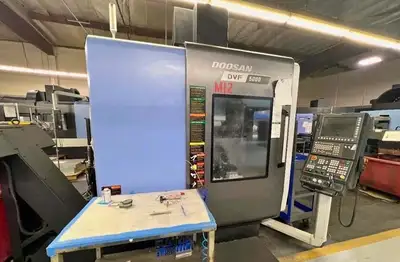

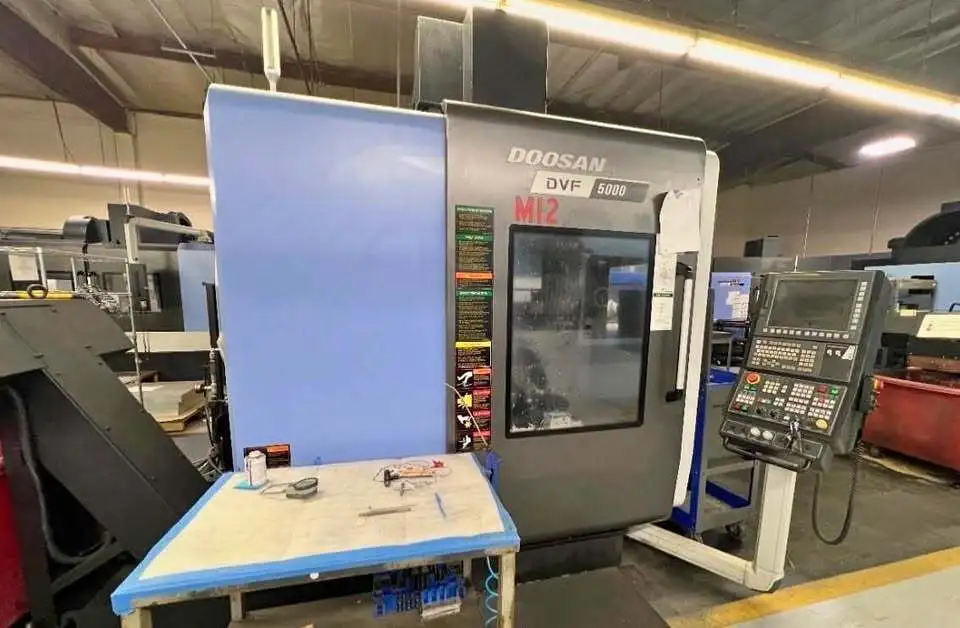

Used Vertical machining center equipped with a 42 HP motor, 18,000 RPM spindle, Fanuc 31i control, Renishaw probing, and 120 ATC. Features include a 19.7" x 19.7" table and LNS chip conveyor. Max load: 882 lbs.
X Axis Travel: 24.6"
Y Axis Travel: 17.7"
Z Axis Travel: 15.7"
Spindle Motor: 42 HP
Spindle Speed: 18,000 RPM
Spindle Taper: 40
Tool Changer: 120 ATC
Rapid Rate X Axis: 1,575 IPM
Rapid Rate Y Axis: 1,575 IPM
Rapid Rate Z Axis: 1,575 IPM
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Table Size: 500 mm (19.7 in.)
Max Part Diameter: 550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)
Table Size: 19.7" x 19.7"
Weight: 16,534 LBS
5-Axis Articulating Head
Fanuc 31i Control
120 Tool Changer
Renishaw Probing
LNS Chip Conveyor
Spindle Chiller
