TIMEMASTER 32/36" x 120
Have one to sell?
ConditionUsed
1 available

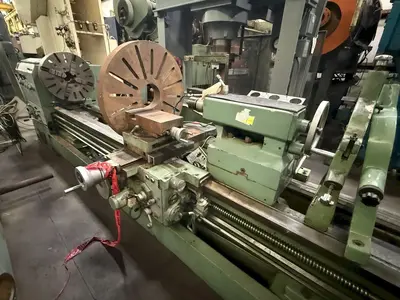

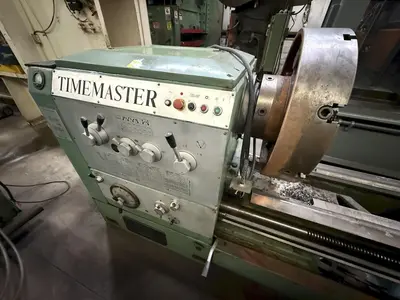

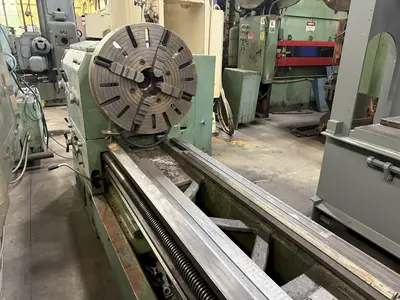

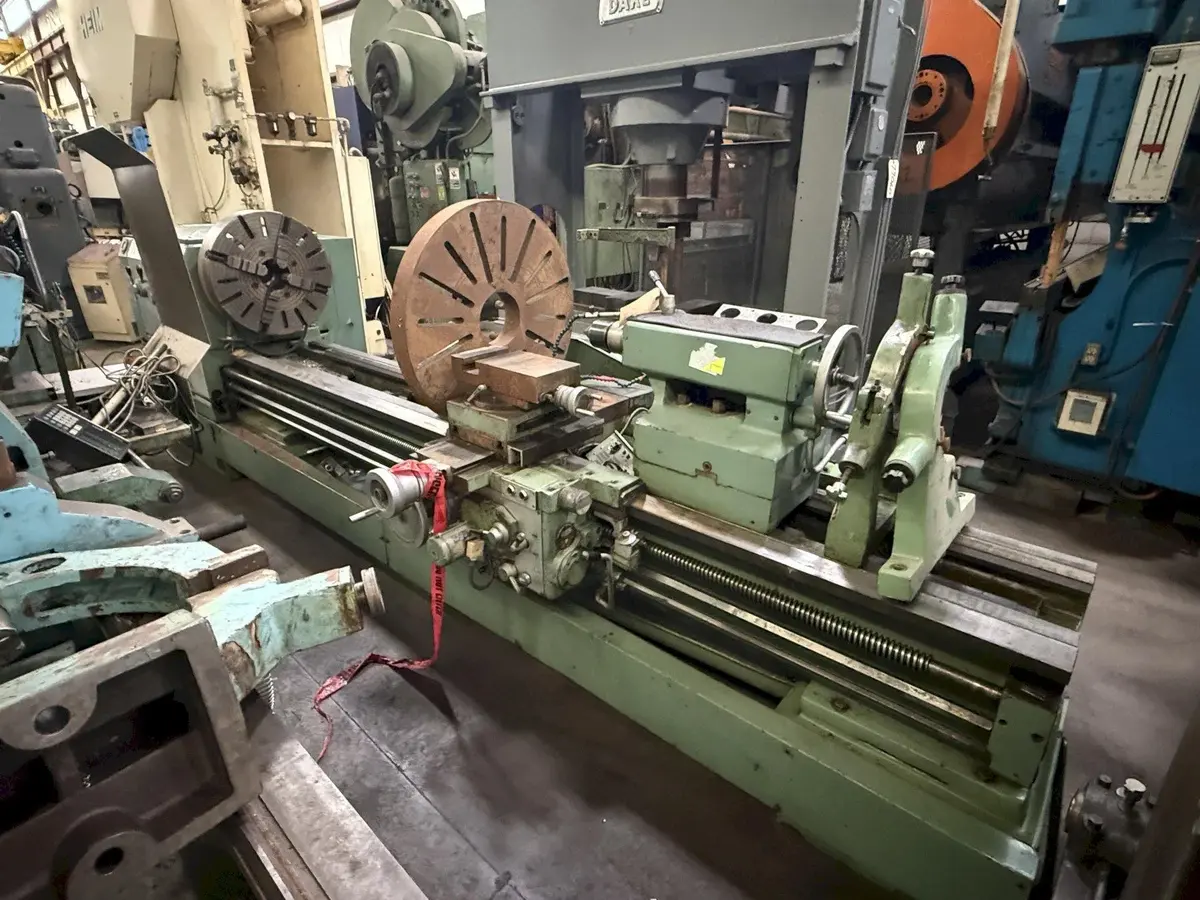

Used engine lathe available. Key features include 32" swing over ways, 120" center distance, 16-900 RPM spindle speeds, and a 23-3/4" 4-jaw chuck. Comes equipped with a taper attachment and coolant.
SWING OVER WAYS ................ 32"
SWING IN GAP ................... 36"
SWING OVER CROSSLIDE ........... 19-7/8"
CENTER DISTANCE ................ 120"
SPINDLE DIAMETER ............... 4-1/8"
SPINDLE SPEEDS ................. 16 TO 900 RPM
ENGLISH FEEDS .................. .007 TO 1.52 IPR
ENGLISH THREADS ................ 1 TO 76 TPI
METRIC THREADS ................. 1 TO 240 MM PITCH
CHUCK DIAMETER ................. 23-3/4" 4-JAW
TAPER ATTACHEMENT
COOLANT
