2023 DN SOLUTIONS PUMA 3100LY
Have one to sell?
ConditionUsed
1 available

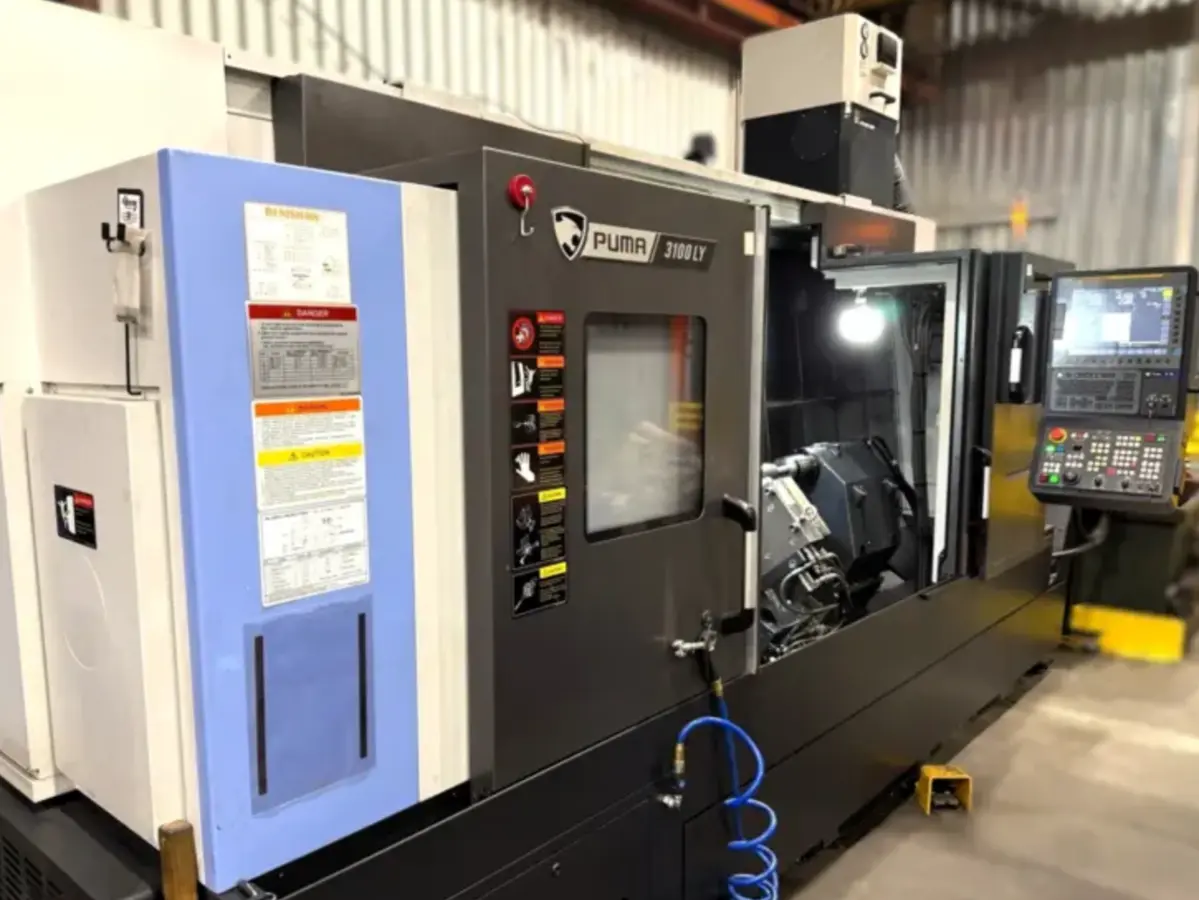

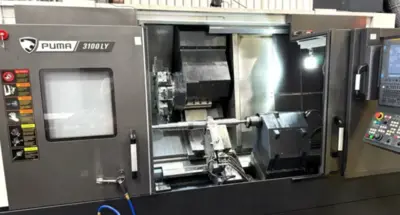

Used CNC Lathe. Featuring a 33.5" swing, 50.6" machining length, 12" chuck, and powerful 35 hp motor. Enhanced by a FANUC control, live milling, and a programmable tailstock. Cutting time: 2,159 hours.
SWING OVER BED 33.5"
MAX CUTTING DIAMETER 16.53"
MAX CUTTING LENGTH 50.6"
X-AXIS TRAVEL 11.5"
Y-AXIS Yes
Y-AXIS TRAVEL 5.12"(±2.6")
Z-AXIS TRAVEL 53.1"
C-AXIS INDEXING FULL C-AXIS
CHUCK SIZE 12"
BAR CAPACITY 4"
SPINDLE BORE 4.5"
SPINDLE NOSE A2-11
SPINDLE MOTOR 35 hp
SPINDLE SPEED 2,800 RPM
RAPID TRAVERSE RATE - X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE - Y-AXIS 393.7 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,181 in/min.
TURRET CAPACITY 12
TURRET TYPE BMT65
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 10 hp
Dimensions 178" x 81" x 91"
Weight 17,637 lbs
FANUC 0i-PLUS CONTROL W/iHMi TOUCH SCREEN
GUIDE I CONVERSATIONAL PROGRAMMING
Y-AXIS
LIVE MILLING
LONG BED (50")
12", 3-JAW HYDRUALIC CHUCK
TOOL PRESETTER
PROGRAMMABLE TAILSTOCK
RENISHAW RLP40 PROBE (RADIO LATHE PROBE) & RMI RECEIVER
LNS AUTOBLOCK SELF-CENTERING HYDRAULIC STEADY REST
PROGRAMMABLE POSITIONING BRACKET FOR HYRDAULIC STEADY REST

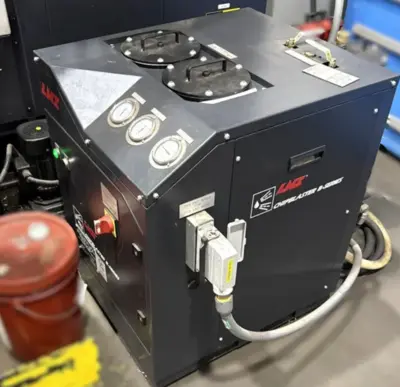

1,000 PSI CHIPBLASTER B-SERIES
LNS FOX MIST COLLECTOR (WS2-1020)
TURBO SIDE DISCHARGE CHIP CONVEYOR
AUTO DOOR (DOUBLE DOOR PNUEMATIC)
CAST IRON SLANT BED
BOX WAYS
AS OF SEPTEMBER, 2025 - CUTTING TIME HOURS: 2,159
