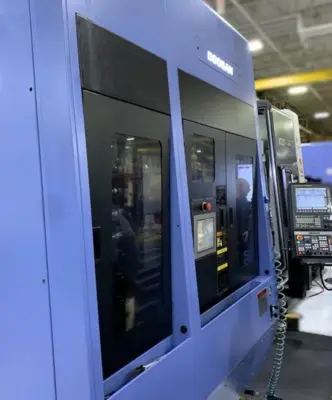

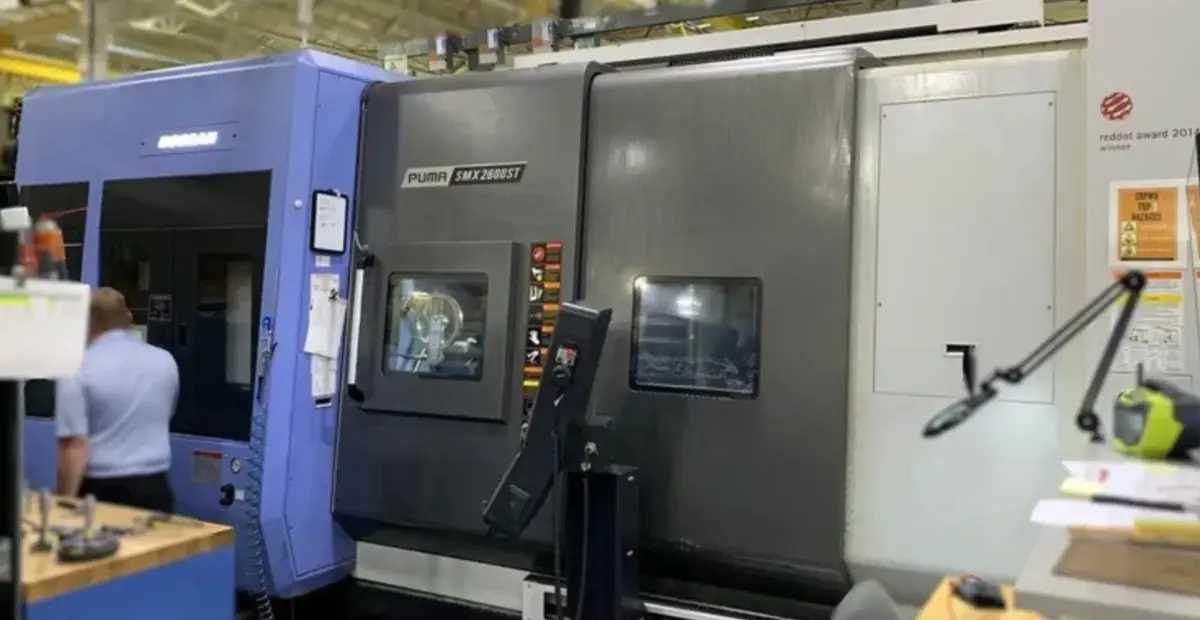

2019 DOOSAN PUMA SMX2600ST

General Specifications:
Maximum turning diameter: 660 mm (26 in.)
Maximum turning length: 1,540 mm (60.6 in.)
Chuck size: 10 inches (255 mm) on both spindles
Bar capacity: 81 mm (3.2 in.)
Machine weight: 18,000 kg (39,683 lbs)
Machine dimensions (L x W x H): 5,790 x 3,021 x 2,820 mm (228 x 119 x 111 in.)
X-axis travel (upper turret): 695 mm (27.4 in.)
X2-axis travel (lower turret): 235 mm (9.3 in.)
Y-axis travel: (pm 150) mm ((11.8pm 5.9) in.)
Z-axis travel (upper turret): 1,585 mm (62.4 in.)
Z2-axis travel (lower turret): 1,540 mm (60.6 in.)
B-axis swivel: (pm 120) degrees
Rapid traverse rate (X/Z-axis): 48 m/min (1,889.8 IPM)
Rapid traverse rate (Y-axis): 36 m/min (1,417.3 IPM)
Rapid traverse rate (Z2-axis): 36 m/min (1,417.3 IPM)
Main spindle speed: 4,000 RPM
Main spindle power: 26 kW (35 hp)
Milling spindle speed: 12,000 RPM
Milling spindle power: 22 kW (29.5 hp)
Milling spindle taper: CAPTO C6

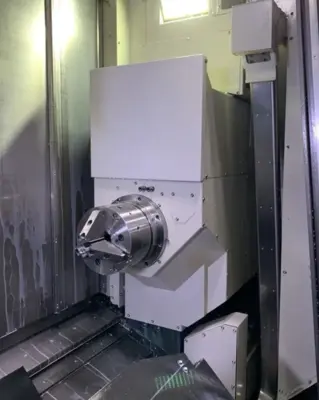

Right (sub) spindle speed: 4,000 RPM
Right (sub) spindle power: 26 kW (35 hp)
ATC capacity: 120
Lower turret stations: 12
Tool change time (tool-to-tool): 1.8 seconds
Tool change time (chip-to-chip): 7.8 seconds

Control and features

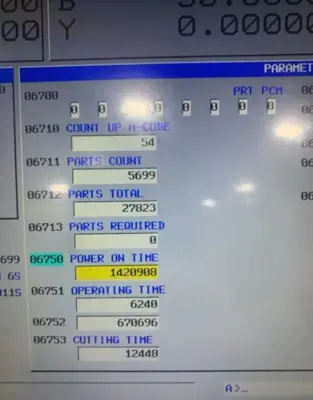

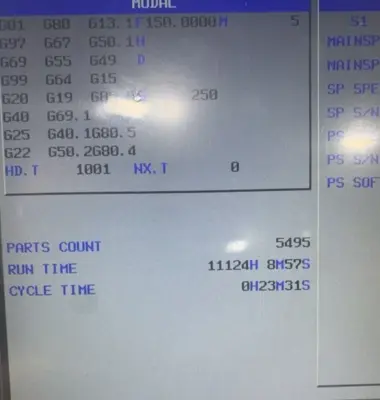

CNC control: FANUC 31i-B5 with CUFOS platform and 19″ iHMi touchscreen

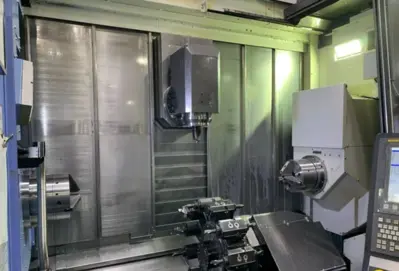

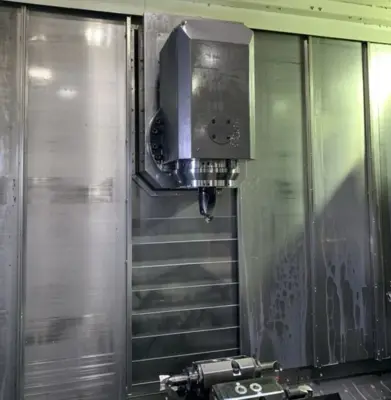

5-axis machining: The B-axis milling head offers true 5-axis contouring and positional milling.
Ergonomics: The machine features a movable control panel, easy front access to the tool magazine, and thermal compensation to minimize heat deformation.

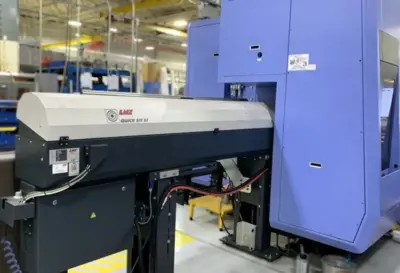

Automation readiness: Options for robotic part handling, bar feeding, and high-pressure coolant are available.
