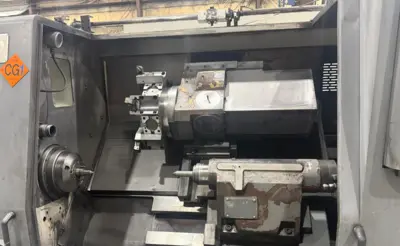

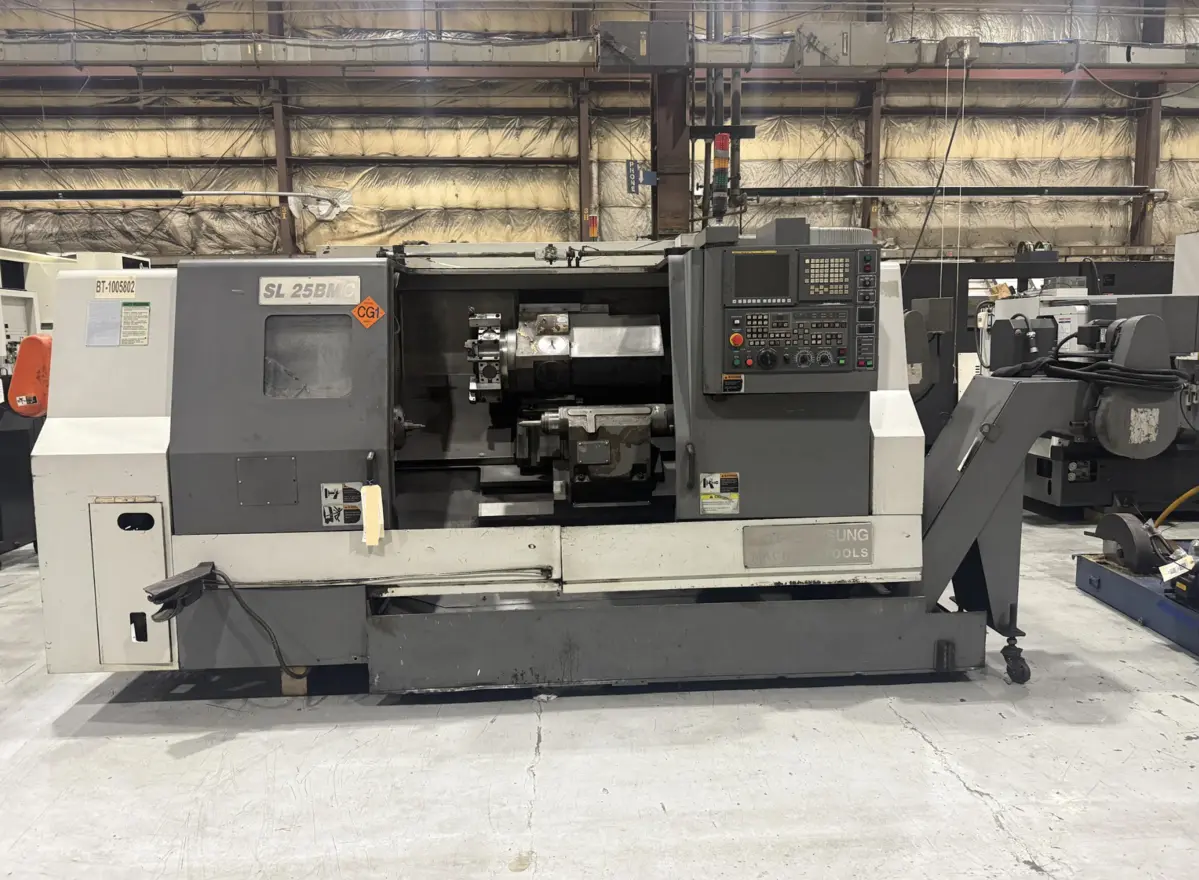

2013 SAMSUNG SL25BMC/1000
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used. Features 25.06" swing, 3-axis, 10" chuck, 30 hp, 3,500 RPM, max turning dia 13.78". Equipped with Fanuc 0i-TD control, box ways, and coolant system. Includes live tooling and toolholders.
X Axis Travel 8.66 in
Z Axis Travel 42.91 in
Rapid Traverse (X/Z) 709/945 ipm
Turret Capacity 12
Center Distance 44.30 in
- Fanuc 0i-TD CNC Control
- Box Ways
- Tool Eye
- Chip Conveyor
- Coolant Tank & Pump
- (1) Axial (1) Radial Live Tool Holder
- Misc. Static Toolholders
CNC Lathe, used. Features 25.06" swing, 3-axis, 10" chuck, 30 hp, 3,500 RPM, max turning dia 13.78". Equipped with Fanuc 0i-TD control, box ways, and coolant system. Includes live tooling and toolholders.
Imperial
| Swing | 25.06" |
| # Axis | 3 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 13.78" |
| Tailstock | Yes |
| Live Tooling | Yes |
| Control | CNC (Fanuc) |
| Weight | 14400 lbs |
X Axis Travel 8.66 in
Z Axis Travel 42.91 in
Rapid Traverse (X/Z) 709/945 ipm
Turret Capacity 12
Center Distance 44.30 in
- Fanuc 0i-TD CNC Control
- Box Ways
- Tool Eye
- Chip Conveyor
- Coolant Tank & Pump
- (1) Axial (1) Radial Live Tool Holder
- Misc. Static Toolholders
