| Swing | 23.6" | 599.44 mm |
| Machining Length | 60.2" | 1,529.1 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 3.4" | 86.36 mm |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 16.5" | 419.1 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 26,400 | 26,400 |
SWING OVER BED 23.6"
MACHINING LENGTH 60.2"
DISTANCE BETWEEN CENTERS 64.6"
CHUCK SIZE 1 15"
SPINDLE NOSE 1 A2 - 11
SPINDLE BAR CAPACITY 1 3.4"
TURNING DIAMETER, SHAFT DIAMETER 16.5"
SPINDLE SPEEDS 1 2,000 RPM
SPINDLE HORSEPOWER 1 35 hp
SPINDLE BORE DIAMETER 1 4.1"
X1 - AXIS TRAVEL 10.8"
Z1 - AXIS TRAVEL 63.2"
RAPID TRAVERSE RATE - X1 787 in/min.
RAPID TRAVERSE RATE - Z1 964 in/min.
GEAR RANGES 2
TURRET CONFIGURATION 1 12
TAILSTOCK QUILL DIAMETER 4.7"
TAILSTOCK QUILL TRAVEL 5.1"
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 54.9"
TOOL SETTER
CHIP CONVEYOR

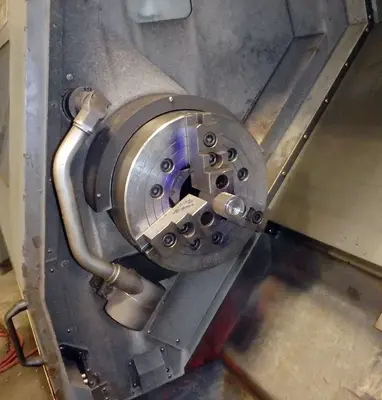

15" 3-JAW HYDRAULIC CHUCK

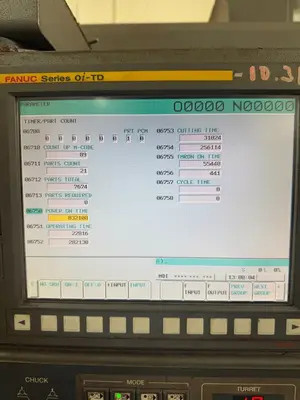

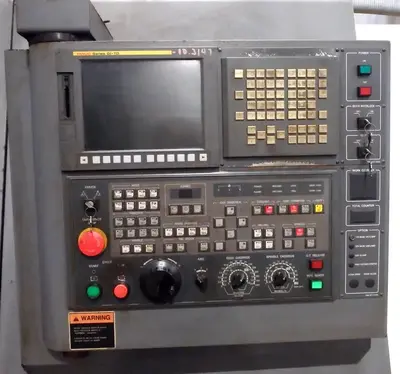

FANUC OI-TD CNC COLOR CONTROL CNC CONTROL
This equipment is currently unavailable. Similar equipment available now is shown below.
