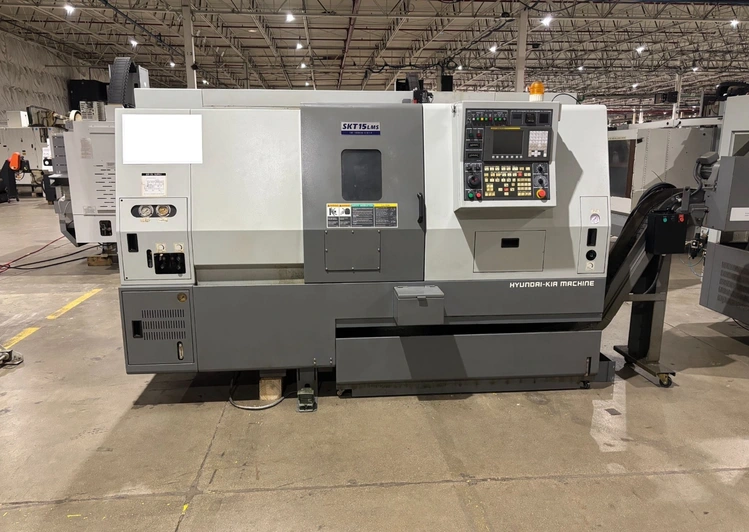

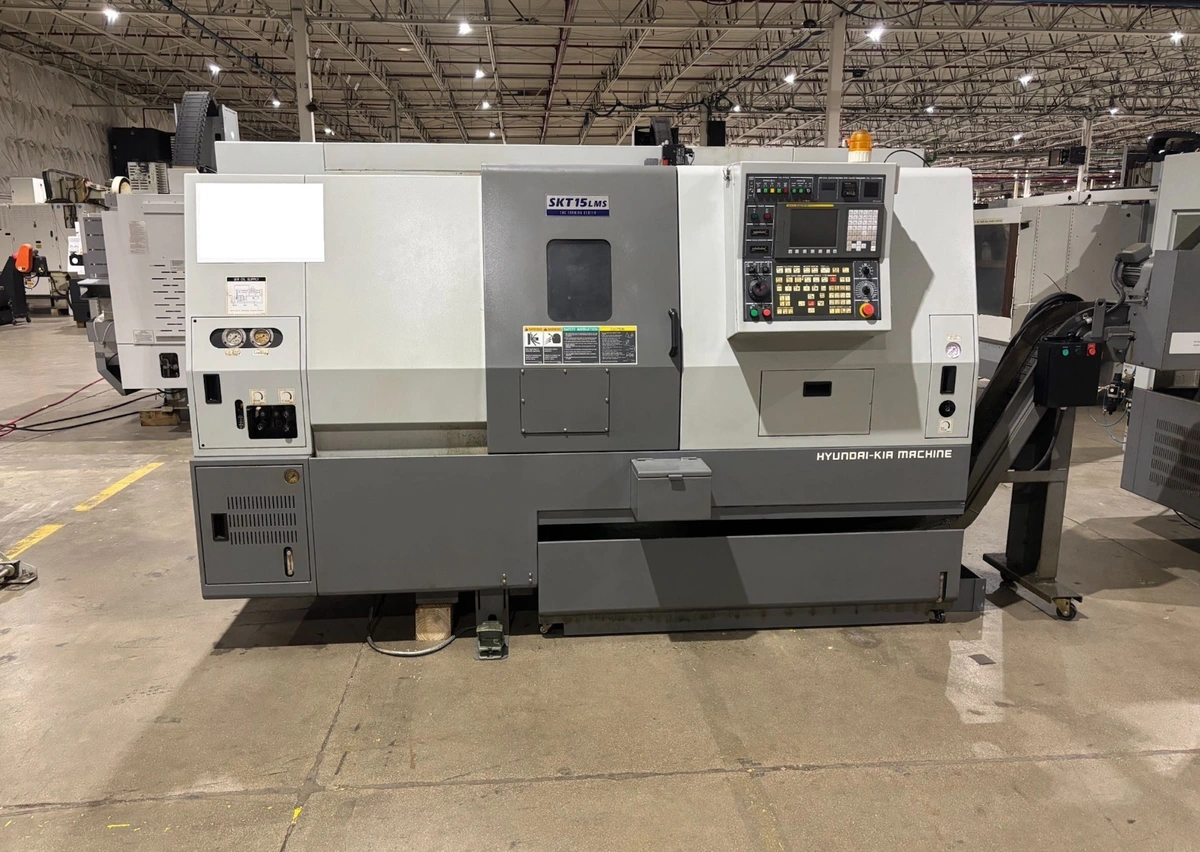

2009 HYUNDAI KIA SKT 15 LMS
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe. Equipped with Fanuc Oi-TC Control, live tooling, sub-spindle, and various spindle liners.
Swing 21.6″
Turning Dia 10″
Center Distance 20.8″
Chuck Size 6″
Bar Capacity 1.7″
X-axis Travel 8.3″
Y-axis Travel 24.8″
Z-axis Travel 21.65″
C Axis Indexing Yes
B-axis Travel 29.5
Rapid Traverse Rate (X/Y/Z) 1417
Spindle Nose A2-5
Spindle Speed (rpm) 6,000 RPM
Spindle Motor (hp) 15 hp
Tailstock No
Live Tooling Yes
Live Tooling Speed (rpm) 4,000 RPM
Live Tooling Motor (hp) 5 hp
Sub Spindle Yes
Sub Spindle Speed (rpm) 5,000 RPM
Sub Spindle Motor (hp) 5 hp
Turret Capacity 12
Machine Weight 9,500 lb

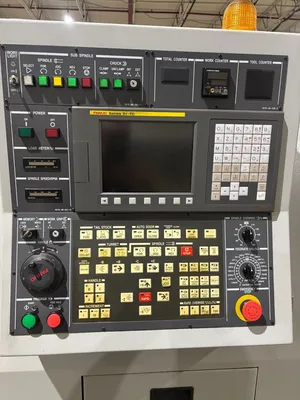

Fanuc Oi-TC Control
Main Spindle Micro Centric CB42-ND Collet Chuck
Main Spindle C axis
Sub Spindle ATS Work Holding Collet Chuck
RS-232
Tool Eye

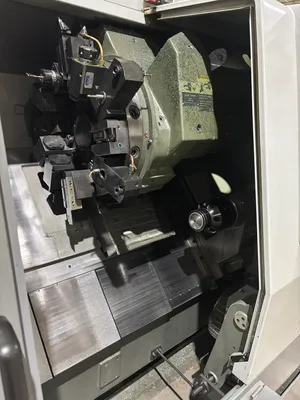

Live Tooling
Live Tooling Holders
Sub Spindle Parts Catcher
Chip Conveyor, coolant tank with pump

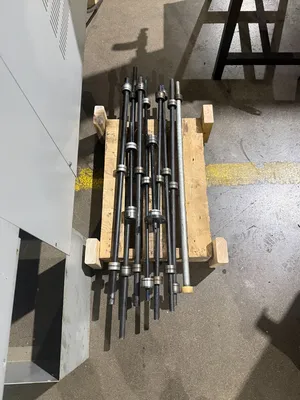

Various Diameter Spindle Liners
Machine Voltage: 208
Machine KVA: 30
