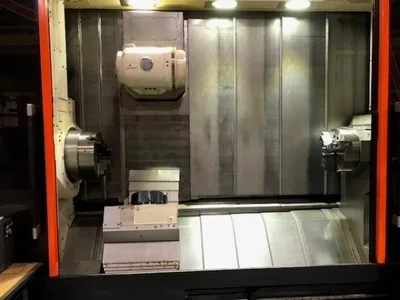

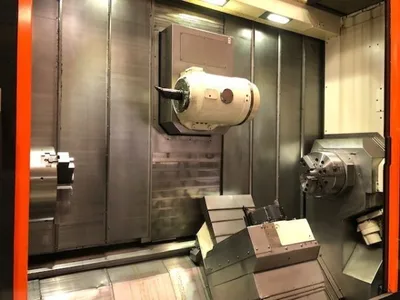

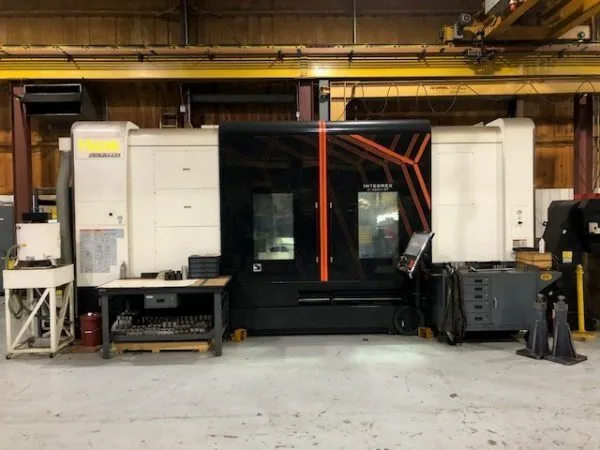

2016 MAZAK INTEGREX E-420H-ST
Have one to sell?
ConditionUsed
1 available
Used 5-axis CNC lathe. Max turning: length 80", diameter 26.3". Dual 40HP spindles, 2,500 RPM. 30HP milling spindle at 12,000 RPM. Features include Mazatrol SmoothX Control, Renishaw RMP600, and 80 ATC Capto C6.
Max Turning Length: 80″
Max Turning Diameter: 26.3″
Main Spindle Bore: 5.19″
Sub Spindle Bore: 5.19″
Travels:
X-Axis: 33.27 inches (Upper) / 14.25 inches (Lower)
Y-Axis: 16.54 inches
Z-Axis: 82.2 inches (Upper) / 74.53 inches (Lower)

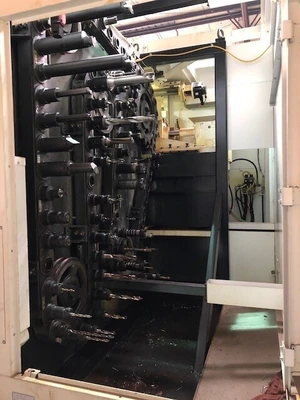

Tooling: 80 ATC Capto C6

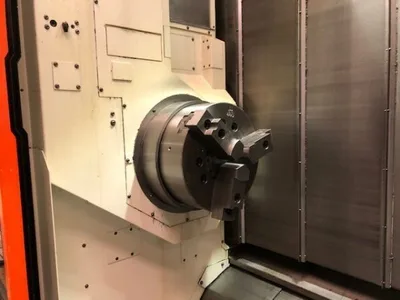

Main Spindle:
Chuck: 15″ (Kitagawa B-15A11)
Speed: 2,500 RPM
Power: 40HP
Nose: A2-11

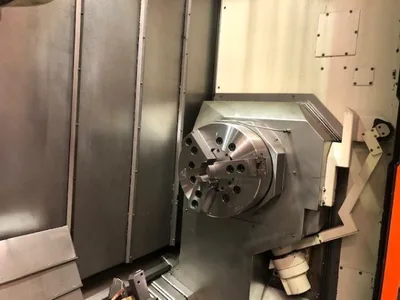

Sub Spindle:
Chuck: 15″ (B15)
Speed: 2,500 RPM
Power: 40HP
Nose: A2-11

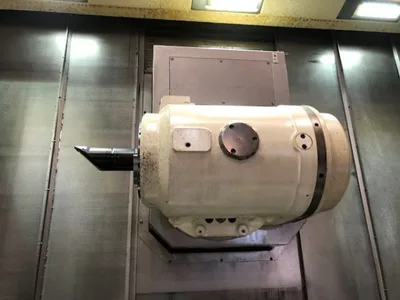

Milling Spindle:
B-Axis: 240º programmable
Speed: 12,000 RPM
Power: 30HP
Approx Footprint: 210″ x 115″ x 115″
Approx Weight: 48,000 lbs

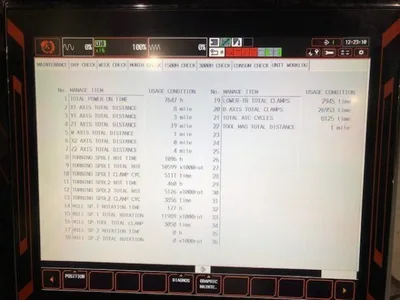

Mazatrol SmoothX Control
B-Axis Milling Spindle

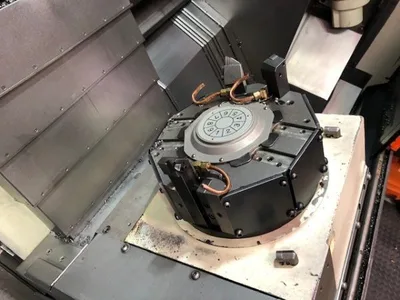

9-Station Lower Turret
Mazak Super Flow V8M Variable 1,000 PSI TSC
C1/C2 Spindle Sync
Renishaw RMP600
Tool Setter
Chip Conveyor
Mist Collector
All Available Manuals
