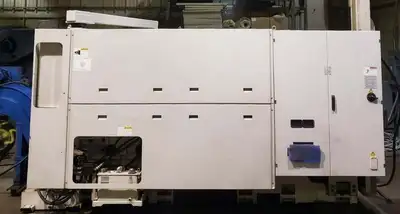

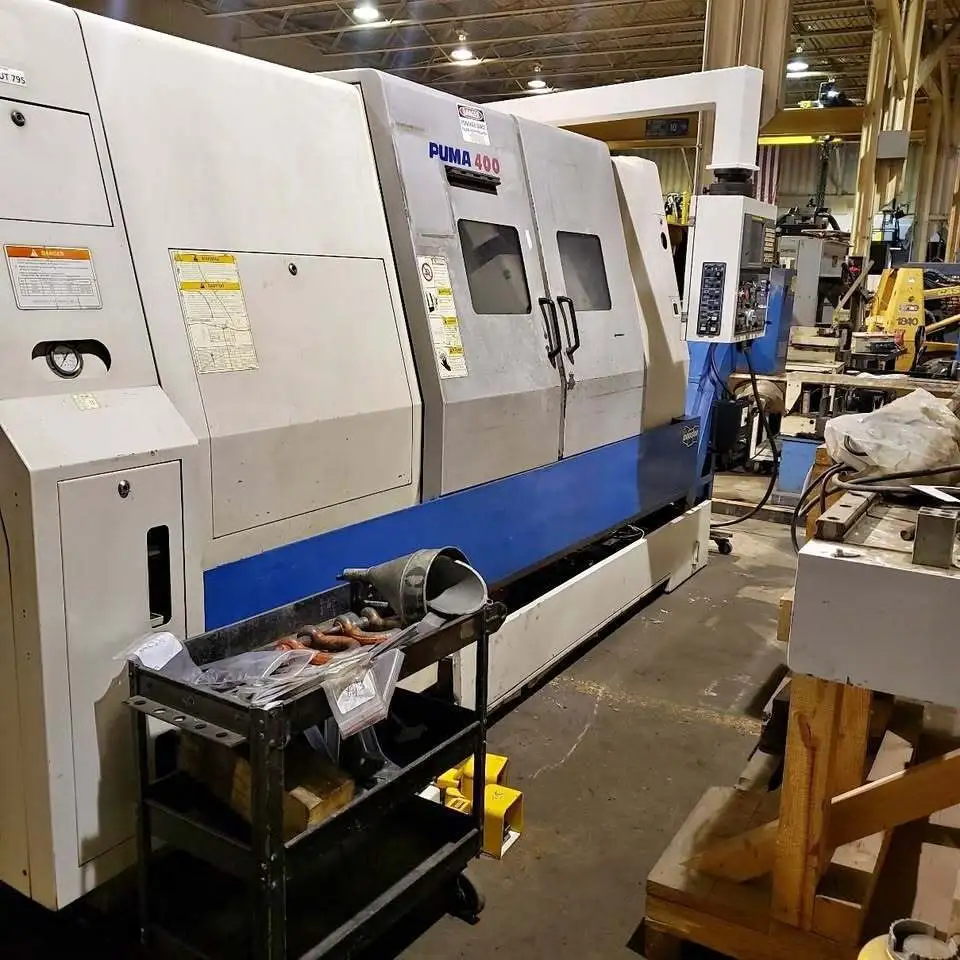

2007 DOOSAN PUMA 400C
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition, featuring 27.5" swing over bed, 40.3" max machining length, and 21.6" max diameter. Equipped with a 50 HP spindle motor, 12 turret stations, Fanuc 21itb Control.
Swing Over Bed: 27.5″
Swing Over Saddle: 23.2″
Max Machining Length: 40.3″
Max Machining Diameter: 21.6″
Distance Between Centers: 44.7″
X-Axis Travels: 14.3″
Z-Axis Travels: 43.5″
Spindle Speed: 15 – 1,500 Rpm
Spindle Bore / Bar Capacity: 7.12″ / 6.55″
Spindle Motor: 50 Hp
Turret Stations: 12

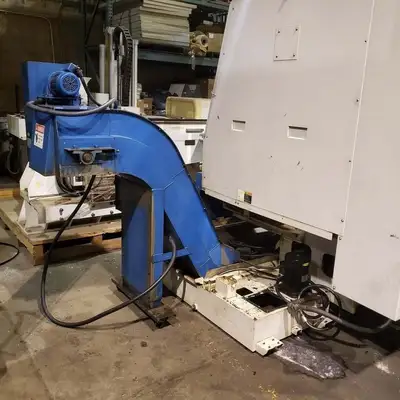

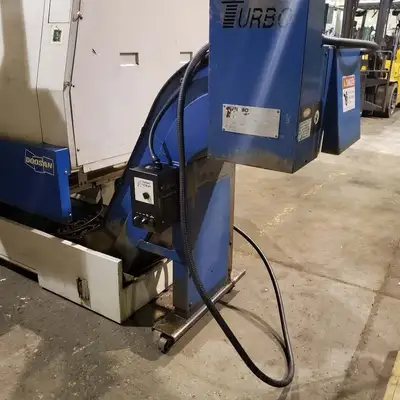

- Turbo Systems Chip Conveyor Model
- 15" Schunk Hyd .Chuck
- Tailstock

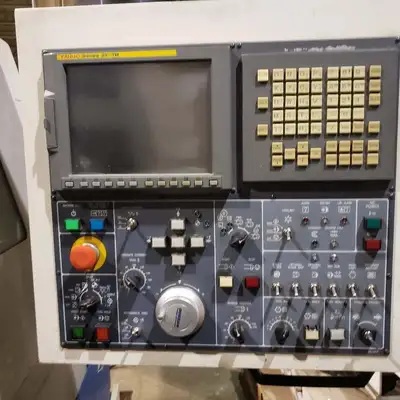

Fanuc 21itb Cnc Control
