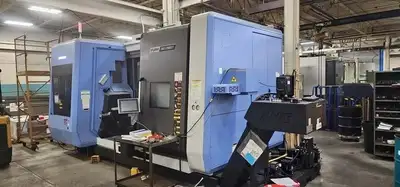

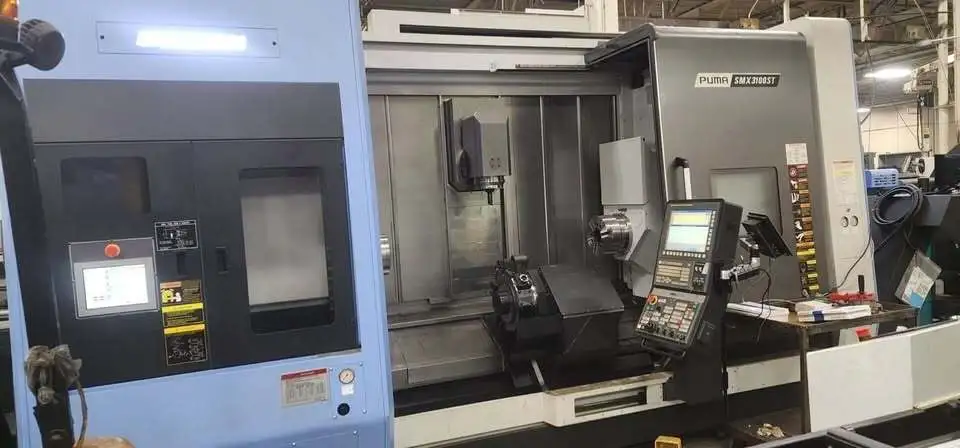

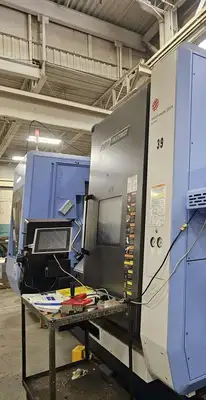

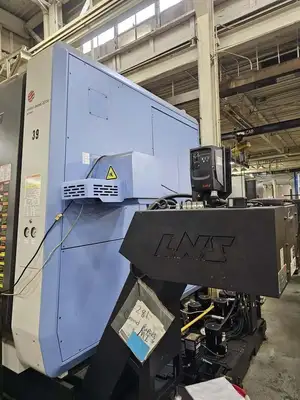

2019 DOOSAN SMX3100ST
Have one to sell?
ConditionUsed
1 available
Used Multi-axis CNC lathe. Features 12,000 RPM B-axis mill head, 12-station live tool turret, 80-station ATC, and Fanuc 31i control. Includes coolant chiller, mist collector, chip conveyor, and probing system. Comprehensive collet set included.
Max Machining Diameter Upper / Lower: 26" Max Turning/Machining Diameter (Main Spindle)
Max Machining Length: 60.6" Max Turning/Machining Length

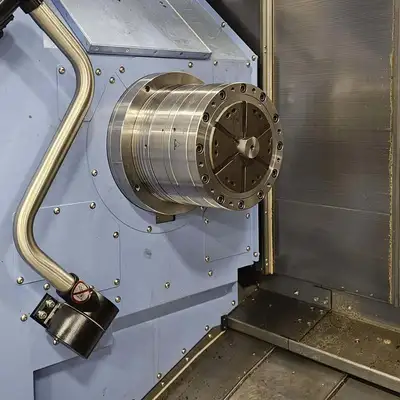

Main Spindle Chuck Size: Samchully Hch-18 18" 3-Jaw Chuck
Main Spindle Speeds: 3000 Max Rpm
Main Spindle Drive: 40 Hp
Main Spindle Nose / Bore: 4.1" Bore, Current Spindle Liner Setup Is Configured For 2.875" Bar Capacity
Main Spindle Indexing: Full C-Axis
Second Spindle Chuck Size: Samchully Mh-212 12" 3-Jaw Chuck
Second Spindle Speeds: 4000 Rpm
Second Spindle Drive: 35 Hp
Second Spindle Indexing: Full C-Axis

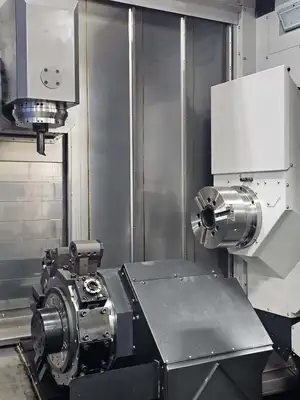

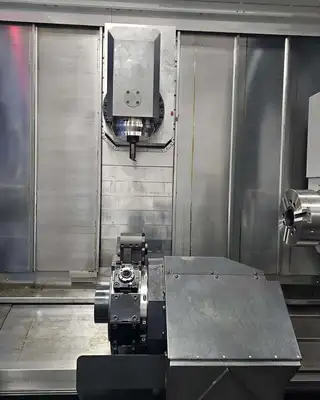

Milling Head Speeds: 12,000 Max Rpm
Milling Head Drive: 35hp
Milling Head Travel X / Z / Y: 27.4" / 62.4" / 11.8"
Milling Head B-Axis Programmable: +/- 240°
Milling Head Taper: Capto C6
Automatic Tool Changer Capacity For Milling Head: 80 Stations
Lower Turret Capacity: 12 Stations, All Live Capable
Lower Turret Travels: 9.3" X / 60.6" Z
Live Tool Speed: 5000 Max Rpm
Live Tool Drive: 9.4 Hp
Rapid Traverse Rates Milling Head (X / Z): 1889 Ipm

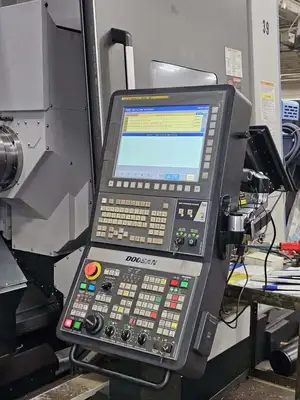

Never Ran Production, Never Tooled UP, Mill-Turn Center with 12,000 RPM B-Axis Articulating Milling Head, 12 Station Live Tool Lower Turret, 80 Station ATC, 1000 PSI High Pressure Coolant, Fanuc Series 31i-Model B5 CNC Control w/ Doosan Easy Operation Package and 15" Display, LNS Barfeed, 12,000 RPM Capto C6 Taper B, Z, & Y Axis Milling Spindle, 80 Station Tool Changer With Tool Library Control Screen, Samchully HCH-18 18" 3-Jaw Chuck on Left Spindle, Samchully MH-212 12" 3-Jaw Chuck on Right Spindle, Full C-Axis on Both Spindles, 40HP Left Spindle, 30HP Right Spindle, Lower X/Z Axis Live Milling & Static Tool Turret with 12 Stations (All Live Capable), Tool Presetter, Renishaw Tool & Parts Probing System with RMI-Q Radio Reciever, RPM600 Parts Probe, Renishaw TRS2 Laser Tool Breakage Detection, Servo Auto Door, 36,000 BTU Coolant Chiller, 1200 CFM Mist Collector, LNS MF2 Filtering Chip Conveyor with Variable Speed Drive, MP Systems AT-RC36 Heavy Duty Dual Outlet 8GPM 1000 PSI High Pressure Coolant Unit with Variable Pressure and Dual Filtration, Complete Coolant System and Tank, Machine Manuals, Capto C6 Tool Holders, Live Tools, and Static Tool Holders.
Serrated Collets
1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 , 2 1/4, 2 3/8, 2 1/2, 2 5/8
2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8, 4 1/2,
Smooth Collets, 3 5/8, 3 7/8
