| Swing | 33.27" | 845.06 mm |
| Machining Length | 79.88" | 2,029 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 10.8" | 274.32 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 22.83" | 579.88 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Mazatrol SMOOTH) | CNC (Mazatrol SMOOTH) |
Swing Over Carriage 20.87"
X-Axis Travel 12.6"
Z-Axis Travel 83.46"
Spindle Nose A2-20
Spindle Bore 10.8
Turret Capacity 12-position drum turret
SMOOTH Control
10.8" Spindle Bore
Re-threading

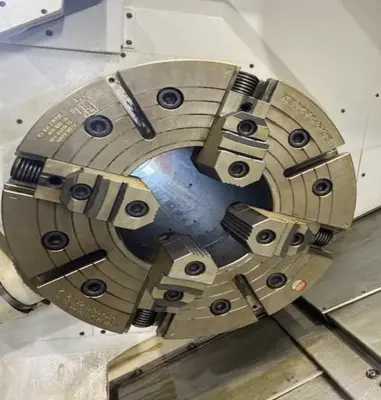

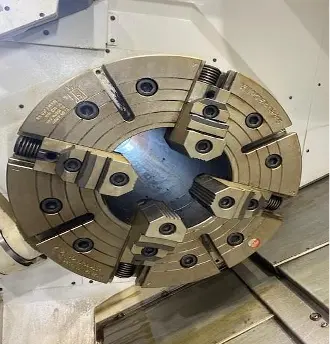

24" Pratt Burned 4-Jaw Manual Chuck- Front
24" SMW Autoblock BB-N-ES 600/275 Pneumatic Chuck Package (For 10.8" Bore) - Rear
ATLM
Chip Conveyor
This equipment is currently unavailable. Similar equipment available now is shown below.
