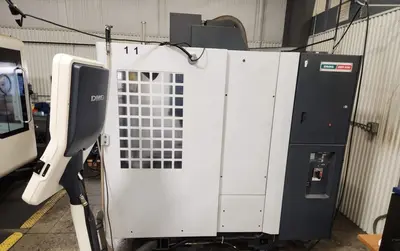

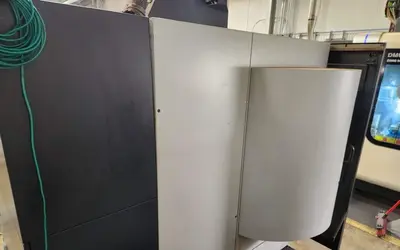

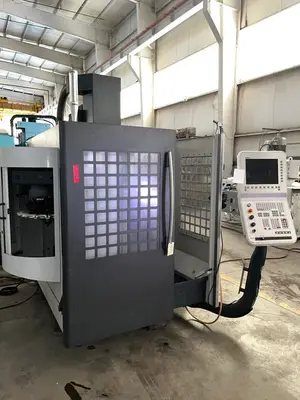

2011 DMG MORI SEIKI DMU 50 ECO
Have one to sell?
ConditionUsed
1 available

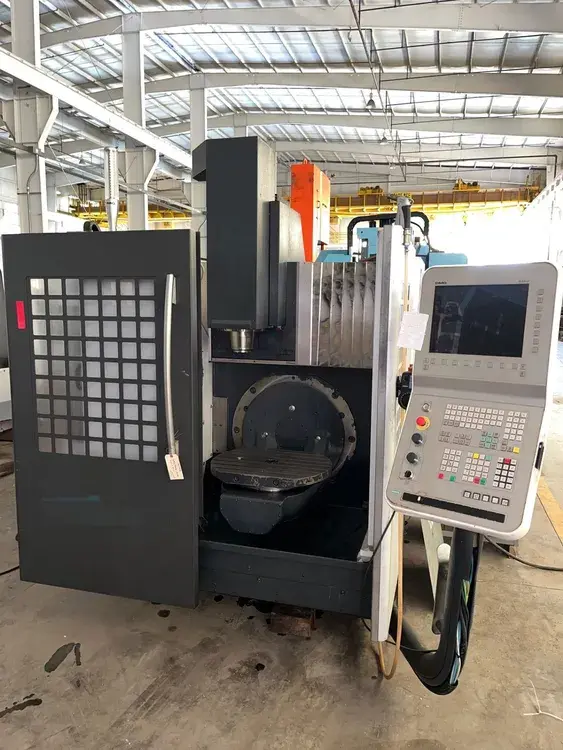

Used 5-axis vertical machining with Siemens control, 16-position tool changer, and 24.7" x 19.7" swiveling table. Features a 17.5 HP motor, 8000 RPM spindle, and chip conveyor.
Table Load Capacity 440 LBS
Longitudinal Travel (X-Axis) 19.7"
Cross Travel (Y-Axis) 17.7"
Vertical Travel (Z-Axis) 15.7"
Table Tilt Range (B-Axis) -5 to 110-DEGREES
Table Rotation (C-Axis) 360-DEGREES
Spindle Nose to Table 31"
Spindle Taper CAT 40
Spindle Speeds, Range 0 to 8000 RPM
Power Rapid Traverse, X, Y, Z-Axis' 472 IPM
Spindle Motor, Horsepower Rating 17.5 HP
Weight Approximately 8800 LBS

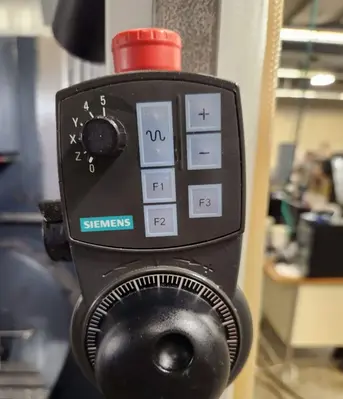

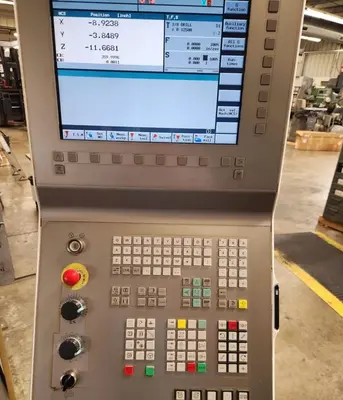

Siemens Sinumerik "810D" 5-Axis CNC Control

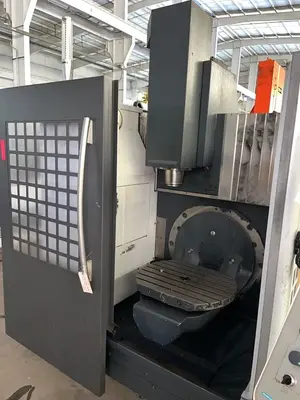

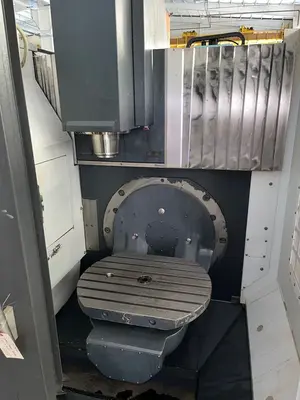

24.7" x 19.7" Swiveling Rotary Table w/Digital Drives

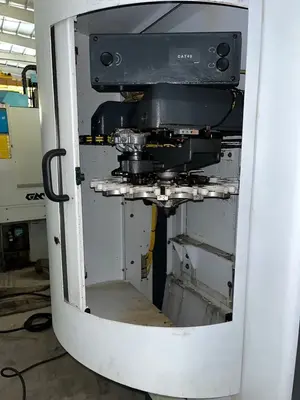

16-Position Side-Mounted Tool Changer
8000 RPM Spindle Speed

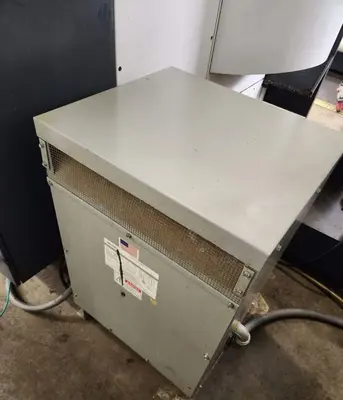

Federal Pacific Transformer
Chip Conveyor
