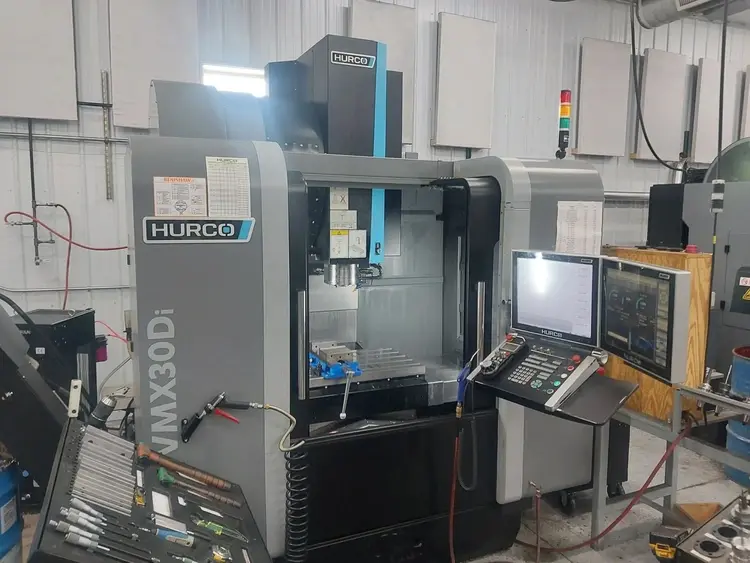

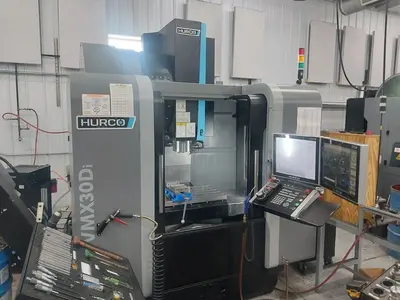

2021 HURCO VMX30DI Vertical Machining Center: Features include 762 mm X-axis travel, 15,000 RPM spindle, part and tool probing, and Ultimotion. Equipped with NC productivity package, thru spindle coolant, and chip conveyor.
X, Y, Z Axis Travel 762 x 508 x 610 mm
T-Slot Size 5 x 18 x 100 mm
Max. Weight on Table 1,500 kg
Table Size 1,020 x 510 mm
Spindle Nose to Table 152 mm min / 762 mm max
Spindle
Max. Spindle Speed 15000 rpm
Spindle Power (peak - 1 min) 15 kW
Spindle Torque (peak - 1 min) 95.45 Nm @ 1500 rpm
Tool Changer
Taper Big Plus 40
Max Tool Diameter 76 mm
Max Tool Length 300 mm
Max Tool Weight 7 kg
Feedrates
Rapid Traverse X,Y,Z Axis 45, 45, 42 m/min
Max Programmable Feedrate 32 m/min
Size
Machine Weight 4,850 kg
Machine Type 3-Axis Machining Centre
Chip Conveyor
15000 RPM
Part and Tool Probing
NC Productivity Package
NC Conversational Merge
Tool Change Optimization
Ultimotion
Tool and Material Library
Selectsurface Finish Quality
Glass Scales
Thru Spindle Coolant

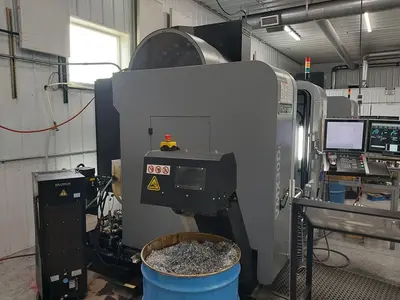

Chip Conveyor
Rigid Tap
Air Blast

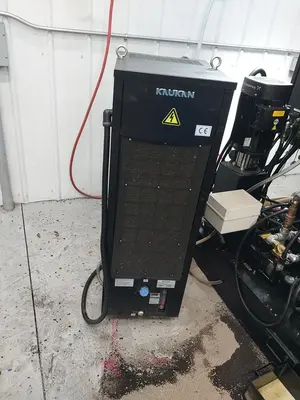

Chiller
Coolant Wash Down
