2019 HURCO VMX30DI with 4th axis
Have one to sell?
ConditionUsed
1 available

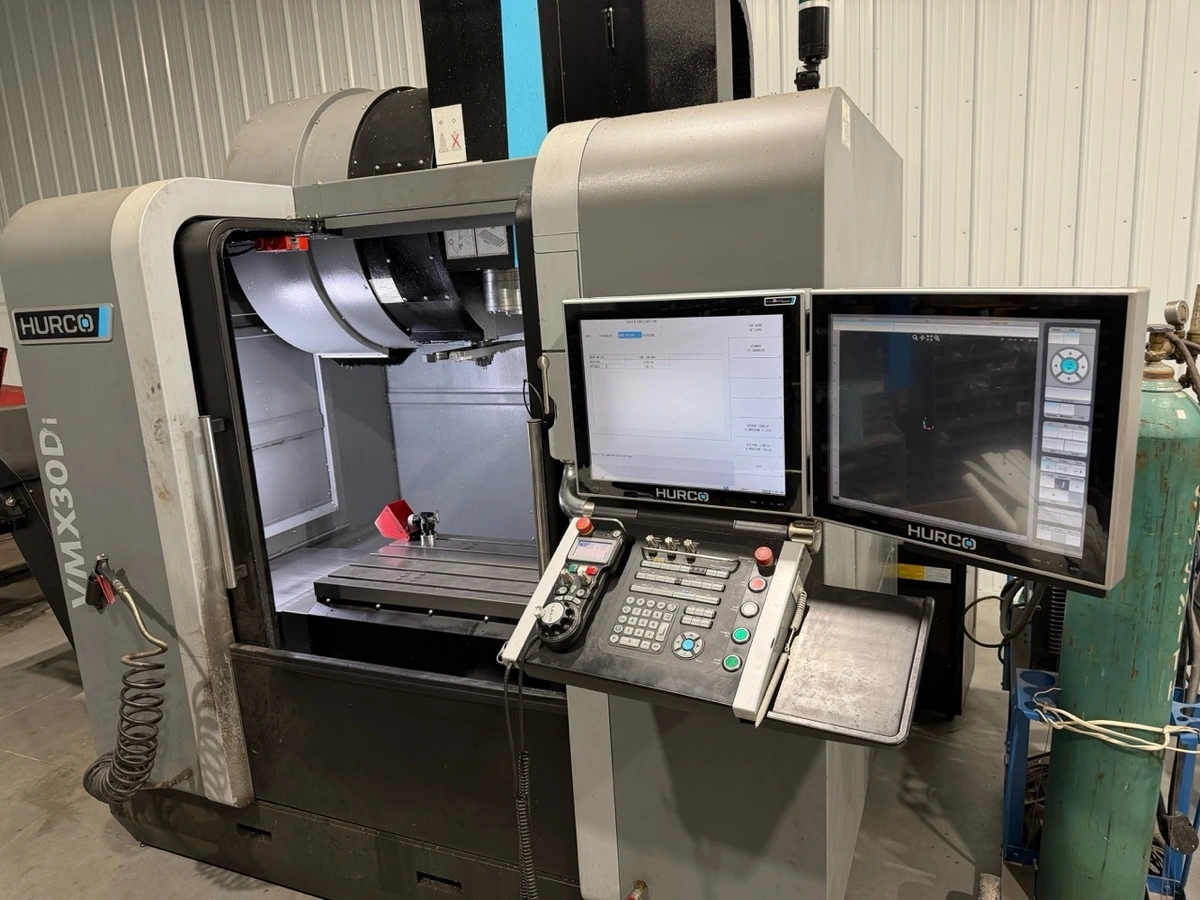

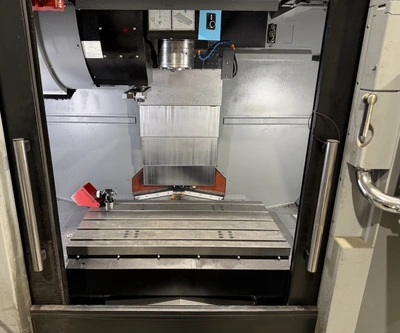

2019 used HURCO VMX30DI Vertical Machining Center. Features include a 15,000 rpm max spindle speed, 30" X-Axis travel, and a capacity for 30 CAT 40 tools. Equipped with WinMax Control, 4th Axis Rotary, and more.
X-Axis Travel: 30″
Y-Axis Travel: 20″
Z-Axis Travel: 24″
Table Size: 40″ x 20″
Max. Spindle Speed: 15,000 rpm
Spindle Power: 20 hp
Spindle Torque: 70.4 ft-lbs @ 1500 rpm
Tool Capacity: 30
Tool Type: CAT 40 / Big Plus
Max. Weight on Table: 3,300 lbs
Machine Weight: 11,685 lbs
WinMax Control

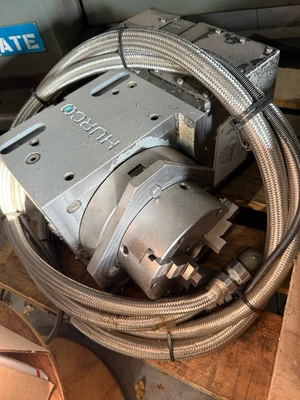

H-200 4th Axis Rotary
4th Axis Hurco Tailstock

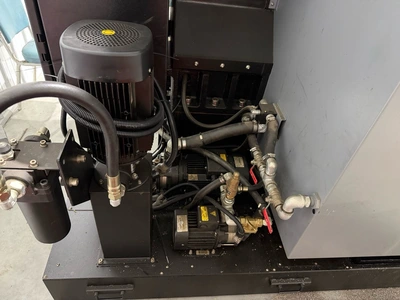

Thru Spindle Coolant (300 psi)
Chip Conveyor
Chiller

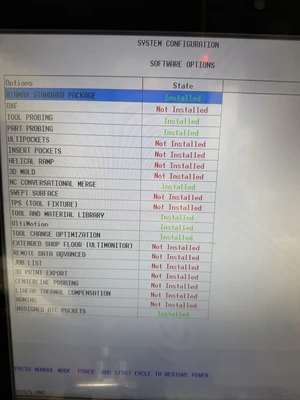

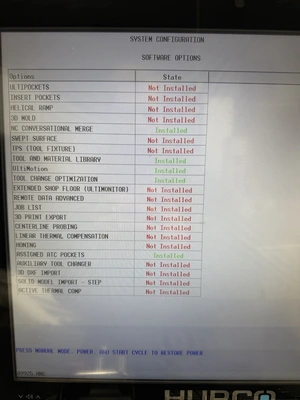

Winmax Standard Package

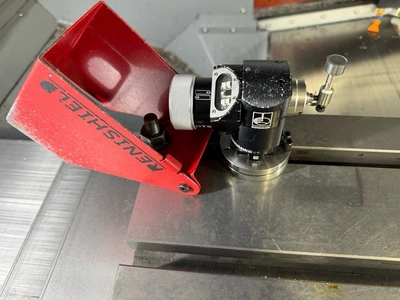

Tool Probing
Part Probing
NC Conversational Merge
Tool and Material Library
UltiMotion
Tool Change Optimization
Assigned ATC Pockets
