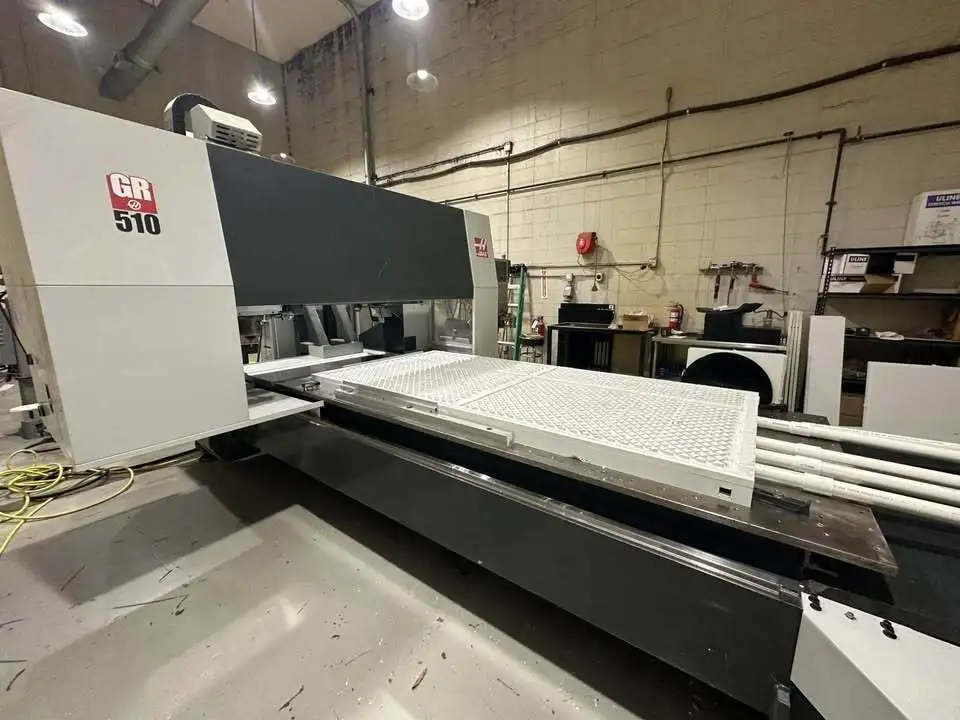

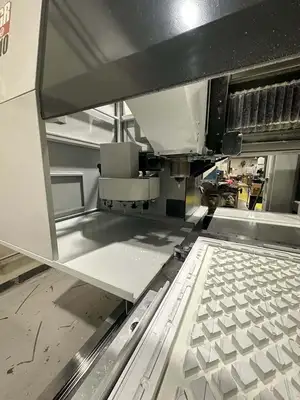

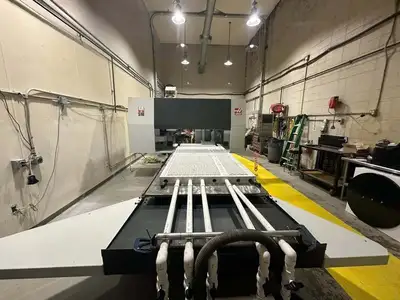

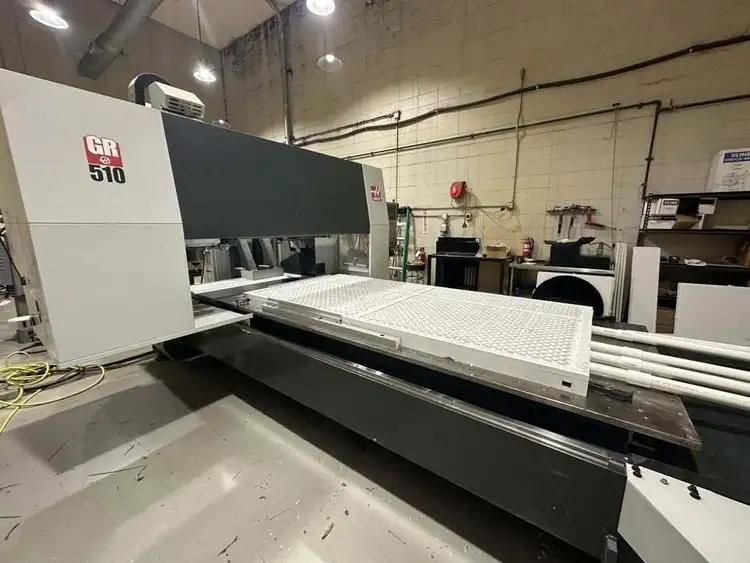

2020 HAAS GR-510

Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
HAAS
Model:
GR-510
Year:
2020
Stock #:
X2X3193
HAAS GR-510, 2020, used, with 121" x 61" x 11" travels and a 15,000 RPM spindle. Features include Haas CNC control, remote jog handle, coolant system, and high-speed machining. Supports up to 6000 lbs on table. Dimensions: 206" x 111" x 108".

X Axis Travel: 121"
Y Axis Travel: 61"
Z Axis Travel: 11"
Spindle Speed: 15,000RPM
Spindle Motor: 15HP
Spindle Nose to Table: 2.5" - 13.5"
Max Torque: 48.0 ft-lbf @ 1500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Taper: CT40
Max Weight on Table (evenly distributed): 6000 LBS Distance Between Columns: 62"

Feedrates
Max Cutting: 800 IPM
Rapids on X: 800 IPM
Rapids on Y: 2100 IPM
Rapids on Z: 1100 IPM

Axis Motors
Max Thrust X: 2520 LBF
Max Thrust Y: 1020 LBF
Max Thrust Z: 2050 LBF

Tool Changer
Tool Capacity: 10
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 LBS
Dimensions: 206" x 111" x 108"
Weight: 19,400

HAAS CNC Control
Probe
Haas CNC Control
Upgraded 15,000 RPM Spindlne
Gantry Router Coolant System
Programmable Coolant Nozzle
Steel Table Inch
32 GB Expanded Memory
Second Home Position
High Speed Machining
Remote Jog Handle with Touchscreen Display
Rigid Tapping
Low Volt
Chip Tray Filter Kit
Early Power Failure Detection Module
Ethernet Interface
HaasConnect: Remote Monitoring
HaasDrop
Media Display M-Code M130
10 Pocket Carousel Tool Changer

This equipment is currently unavailable. Similar equipment available now is shown below.
