2017 HAAS VF-6/50
Have one to sell?
ConditionUsed
1 available
2017 HAAS VF-6/50 Vertical Machining Center: 64" x 32" x 30" travel, 30 hp, 7,500 RPM, 30 ATC. Features 4th Axis Rotary Table, 200+ cat 50 holders, 4th/5th Axis wiring, Extended Z, Next Gen Control. Table 28" x 64", max load 4,000 lbs.
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Max Weight: 4,000 lbs
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Diameter: 4"
Max Tool Diameter: 10"
Max Tool Length: 16"
Max Tool Weight: 30 LBS.
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s

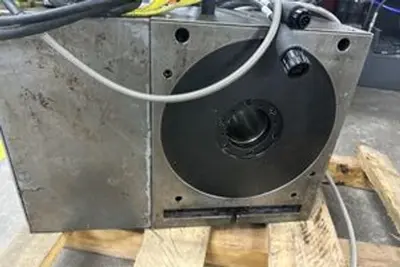

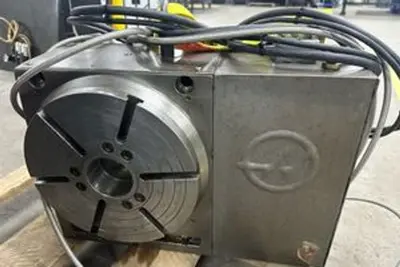

4th Axis Rotary Table

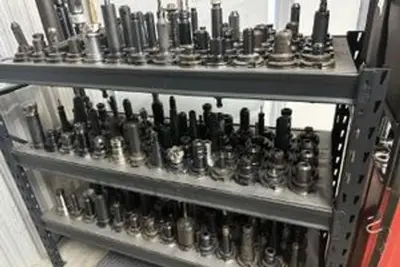

200 plus cat 50 holders Included
4th and 5th Axis wired
Extended Z Travel

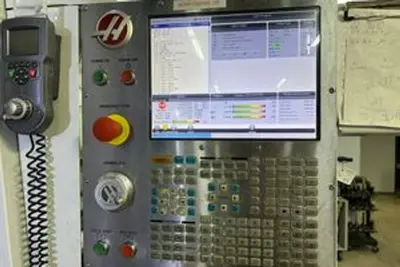

Next Gen Control
