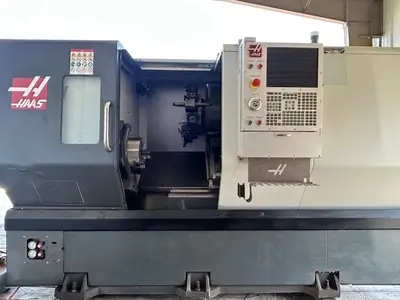

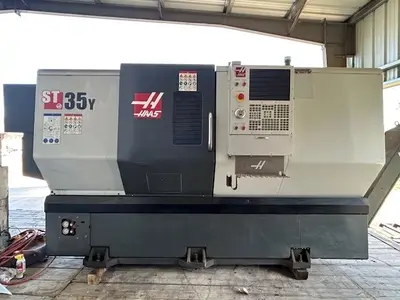

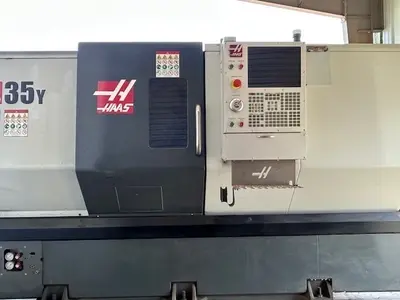

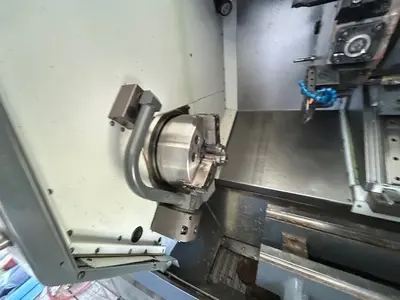

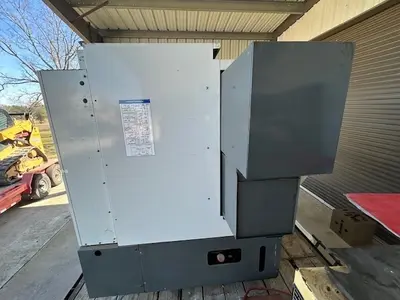

2020 HAAS ST-35Y

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HAAS
Model:
ST-35Y
Year:
2020
Stock #:
X3X3164
Status:
For Sale

Description

Used CNC Lathe. Features include 31.75" swing, 18" turning dia, 23" length, 12" chuck, 4-axis, 40 hp, 3,200 RPM, live tooling, C/Y-Axis, 4000 RPM turret, 1GB memory, Ethernet, HAAS Connect, and more.

Swing31.75"806.45 mm
Machining Length23"584.2 mm
# Axis44

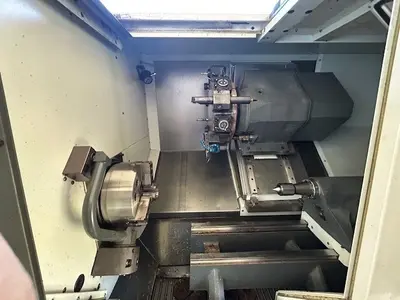

Chuck Size12"304.8 mm
Bar Capacity4"101.6 mm
Power40 hp29.8 kW
Max RPM3,200 RPM3,200 RPM
Turning Dia18"457.2 mm
TailstockYesYes
Live ToolingYesYes

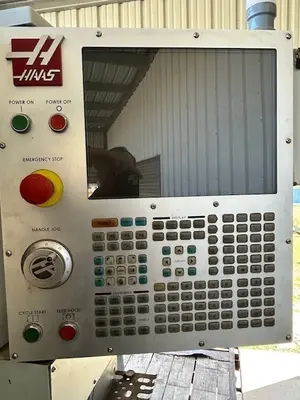

ControlCNC (HAAS)CNC (HAAS)

Distance Between Centers 23"

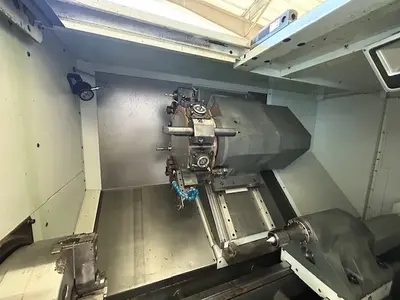

Turret 12 Station

4000 RPM Live Tooling With C Axis 12 Station BMT Turret
Media Display Code: M130
1GB Memory
Auto Tool Presetter
Early Power Failure Detection Module
Ethernet Interface

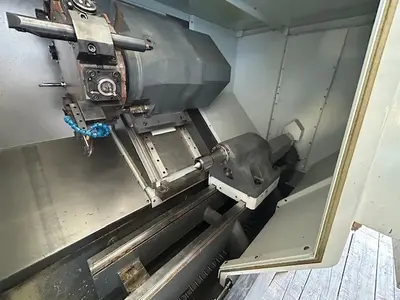

Programmable Hydraulic Tailstock
Rigid Tapping
Spindle Orientation
Wireless Intuitive Probing System
User Definable Macros
Visual Part Programming System
HAAS Connect Remote Monitoring
C-Axis Live Tooling, Y-Axis
