2013 HAAS TL-1
Have one to sell?
ConditionUsed
1 available

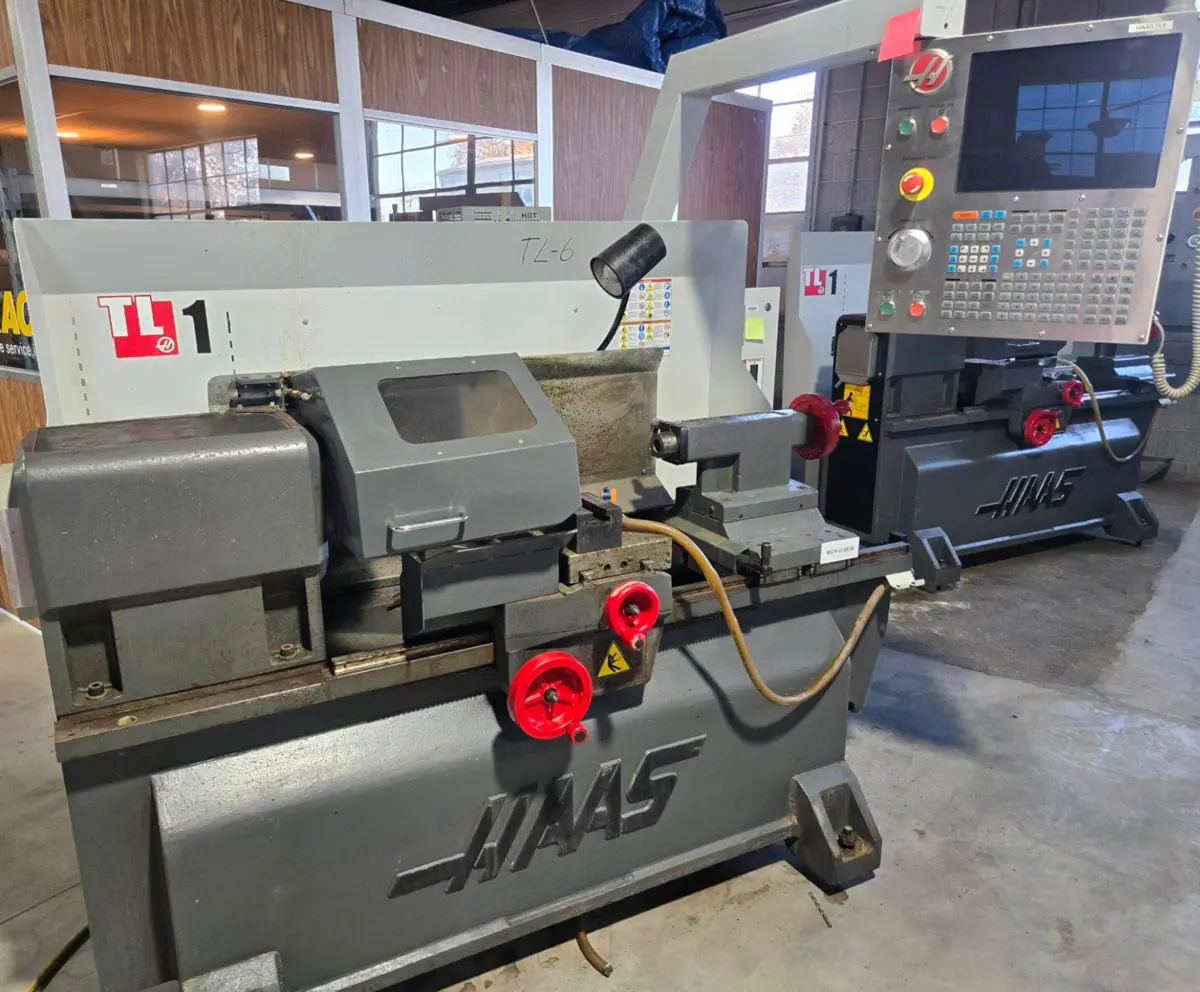

Used CNC Lathe for sale. Features Haas CNC control, 8″ chuck, tailstock, and coolant pump kit. 220V, 10hp, and spindle speed of 1,800 rpm. Max cutting diameter 16″, X-axis travel 8″, Z-axis 30″. Compact dimensions: 78″ × 55″, weight 4,500 lbs.
Power Requirement: 220V/3 phase
Spindle Motor Power: 10hp
Spindle Speed: 1,800 rpm
Spindle Nose: A2-5 S
Spindle Bore: 2.5″
Bar Capacity: 2.25″
X-Axis Travel: 8″
Z-Axis Travel: 30″
Maximum Cutting Diameter: 16″
Maximum Swing: 16″
Chuck Size: 8″
Machine Dimensions: 78″ × 55″
Machine Weight: 4,500 lbs
Haas CNC Control

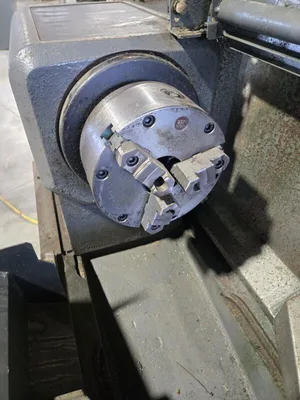

8″ Chuck
Tailstock
Chuck Cover
Coolant Pump Kit
Memory Lock Switch
USB Port
15″ Color LCD
1 MB of Memory
Intuitive Programming System
