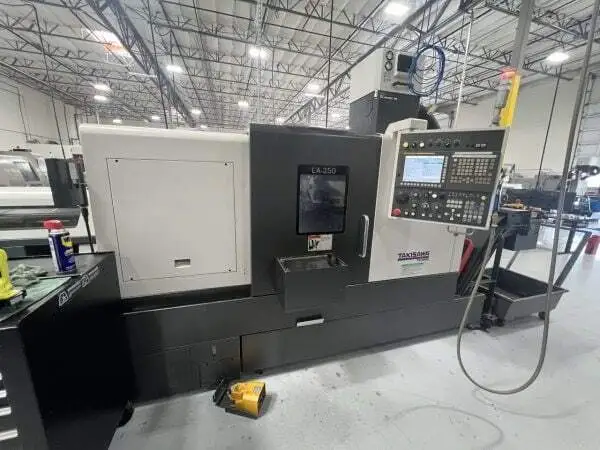

2018 TAKISAWA LA-250
Have one to sell?
ConditionUsed
1 available
CNC lathe in used condition. Features a 10" chuck, 3" bar capacity, and speeds up to 3,500 rpm. Equipped with Fanuc 0i-TF Control and tailstock. Offers a maximum turning diameter of 17.7" and length of 30.1".
Distance Between Center: 34.6″
Chuck Diameter: 10″
Max Turning Diameter: 17.7″
Max Turning Length: 30.1″
Bar Capacity: 3″
X-Axis Travel: 10″
Z-Axis Travel: 31.5″
Spindle Speed: 3,500 rpm
Spindle Nose: A2-8
Spindle Thru-Hole Diameter: 3.4″
Spindle Bearing Diameter: 4.7″

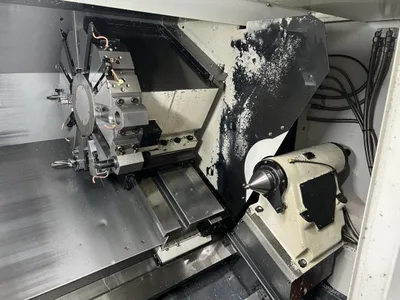

Turret: 12 station
OD Tool Shank: 1″ square
Diameter of Boring Bar Holder: 1-1/2″
Time of Tool Change: 0.6 sec
Tailstock Stroke: 28.7″
Tailstock’s Shaft Stroke: 5.9″
Tailstock Taper: MT #5
Tailstock’s Shaft Hole Diameter: 4.3″
X-Axis Rapid: 630 ipm
Z-Axis Rapid: 787 ipm
Jog Feed Rate X-Axis: 0-50 ipm
Jog Feed Rate Z-Axis: 0-50 ipm
Spindle Motor: 25 / 20 HP

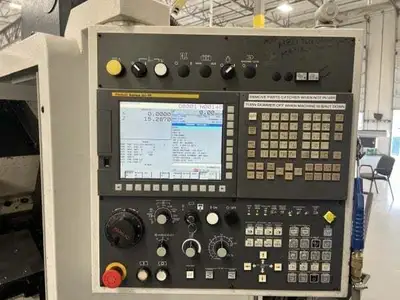

Fanuc 0i-TF Control
Tailstock
