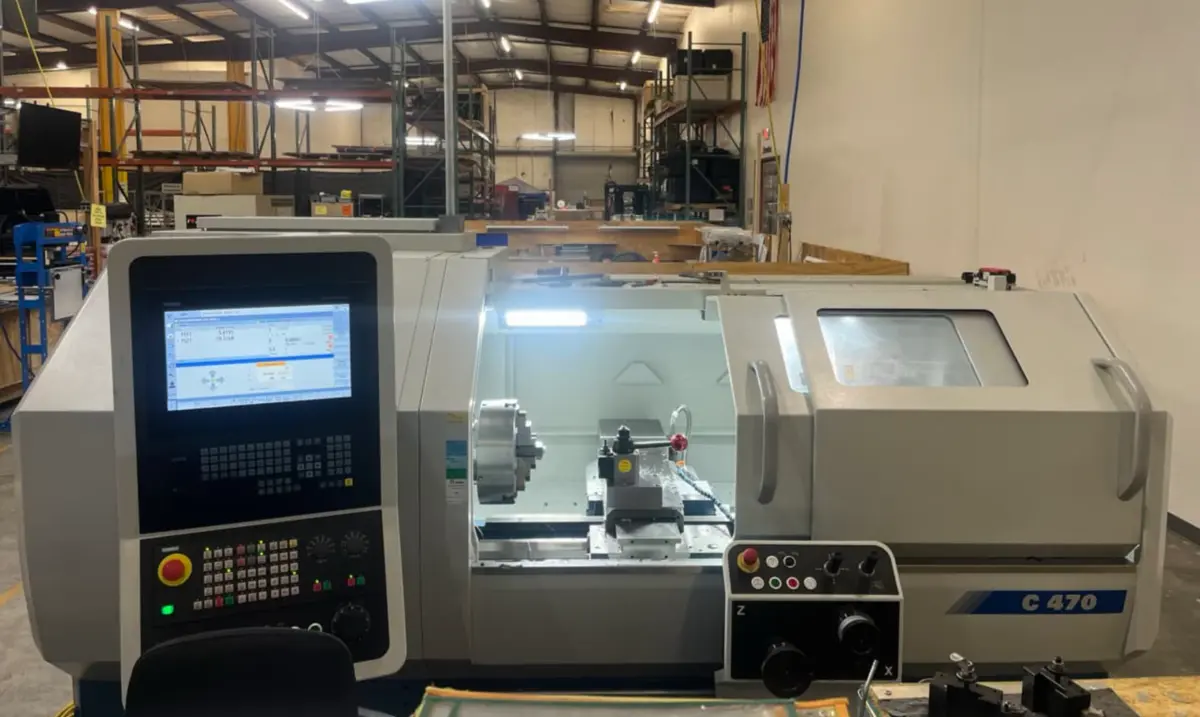

Swing over bed: 18.50″
Swing over cross slide: 7.87″
Distance between centers: 39.37″
Cross slide (X-axis) travel: 8.66″
Longitudinal (Z-axis) travel: 41.93″
Center height: 9.45″
Spindle nose: A2-6
Spindle bore (through hole): 2.56″
Maximum spindle speed: 3,000 rpm
Main motor power (S6, 40%): 12.5 hp
Rapid traverse (X and Z axes): 394″/min
Turret: 8-station electric turret, 1″ × 1″ tool capacity
Tailstock: Manual (standard), optional hydraulic quill
Tailstock quill stroke: 4.72″
Tailstock quill diameter: 2.36″
Tailstock taper: Morse Taper #4
Machine footprint (L × W): 114.6″ × 48.8″
Machine weight: 5,732 lb
Siemens Sinumerik 828D Control
(10) Od holders
(7) ID holders with a bore of 1″
Tailstock
This equipment is currently unavailable. Similar equipment available now is shown below.
