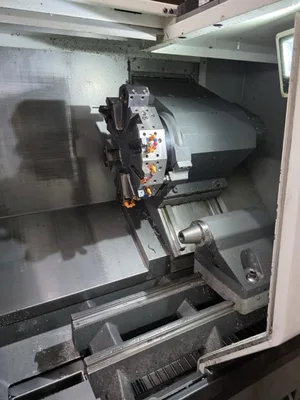

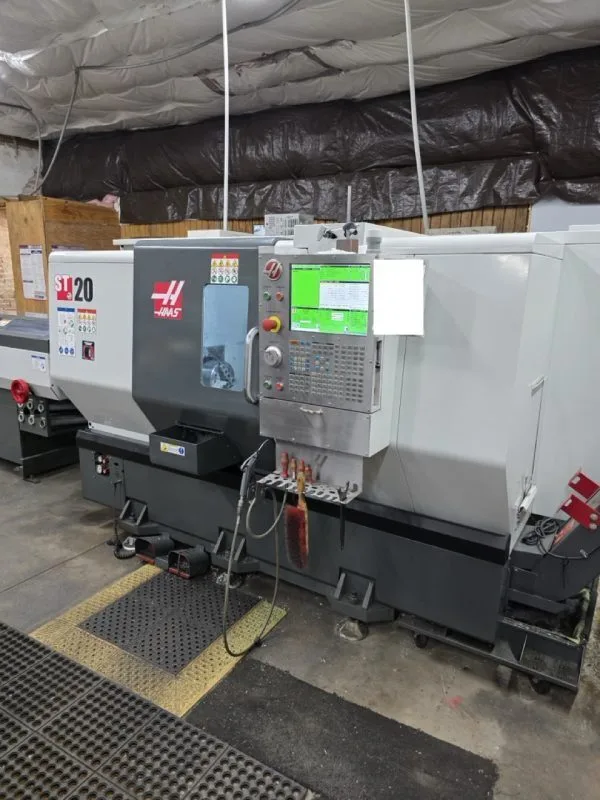

2017 HAAS ST-20
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used condition. Featuring 8.3″ chuck, max part swing 21″, bar capacity 2.5″, spindle 4,000 RPM, 20 HP motor, and a 3-phase electrical setup. Includes bar feeder, 3 jaw chuck, Royal Collet Chuck, and tailstock.
Chuck Size: 8.3″
Max Part Swing: 21″
Bar Capacity: 2.5″
X-Axis Travels: 8.4″
Z-Axis Travels: 22.5″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Spindle Nose: A2-6
Max Cutting Diameter: 13″
Max Cutting Length: 22.5″
Feedrate Rapids: 945 in/minute
Coolant Capacity: 55 Gallons
Electrical: 220V, 3-Phase
Approximate Dimensions: 130″ x 64″ x 77″
Approximate Machine Weight: 8,820lbs
Haas Bar Feeder
3 Jaw Chuck
Royal Collet Chuck
Tailstock
