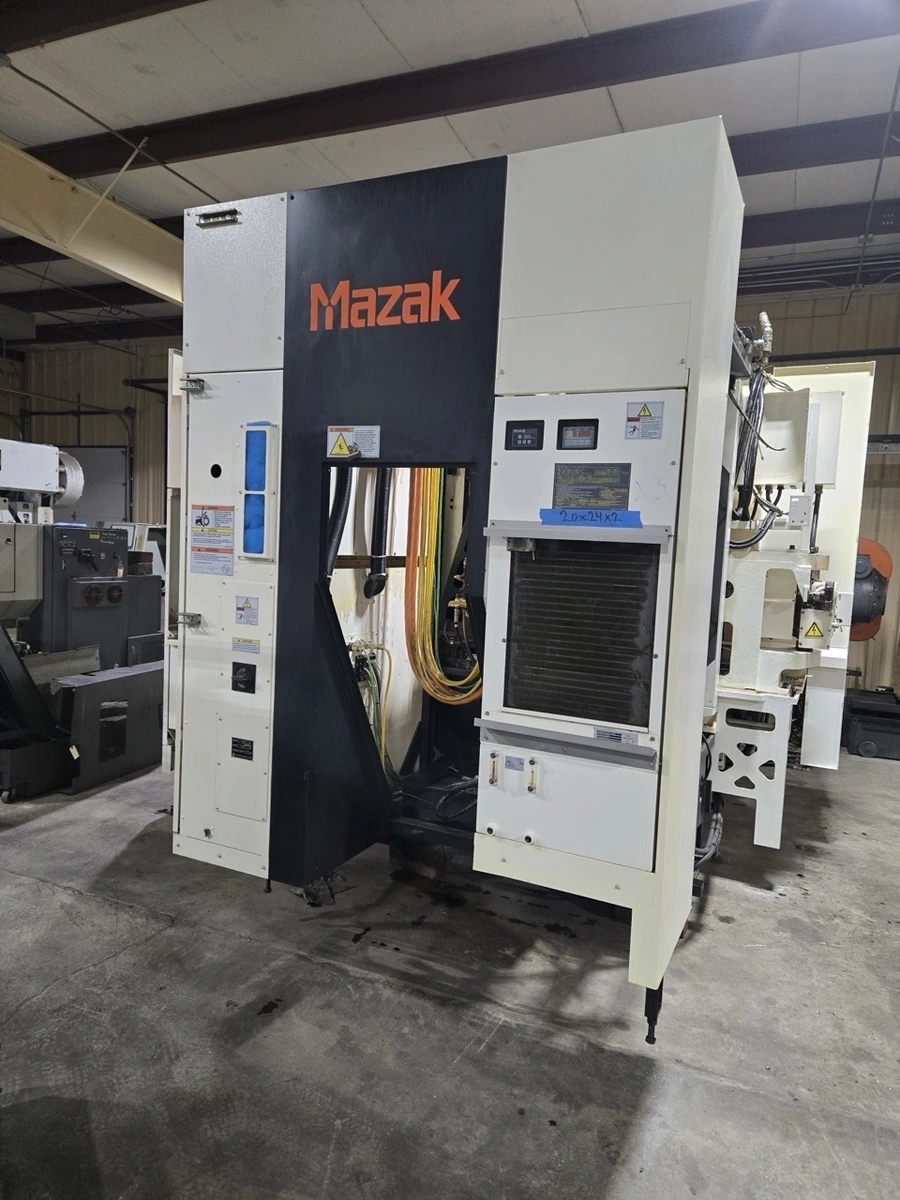

2012 MAZAK HCN-4000
Have one to sell?
ConditionUsed
1 available
Used Horizontal Machining Center, equipped with full 4th axis, CAT 40 taper, and chip conveyor. Features 22.05" X, 25.2" Y, and Z travel, 25 hp, 80-tool capacity.
CAPACITY
Maximum workpiece diameter: 24.80 inches
Maximum workpiece height: 35.43 inches
X-axis travel (column right and left): 22.05 inches
Y-axis travel (spindle up and down): 25.20 inches
Z-axis travel (table back and forth): 25.20 inches
SPINDLE (standard)
Spindle taper hole: 7/24 taper, No. 40 (standard)
Spindle speed maximum: 18,000 min⁻¹
TABLE & PALLET
Pallet width: 15.75 inches
Pallet length: 15.75 inches
ATC TOOL MAGAZINE
No. of tool pockets (standard): 40
MACHINE SIZE
Width: 87.01 inches
Length: 181.93 inches
-Full 4th Axis
-CAT 40 Taper
-Chip Conveyor
-Probing
-80 Tools
