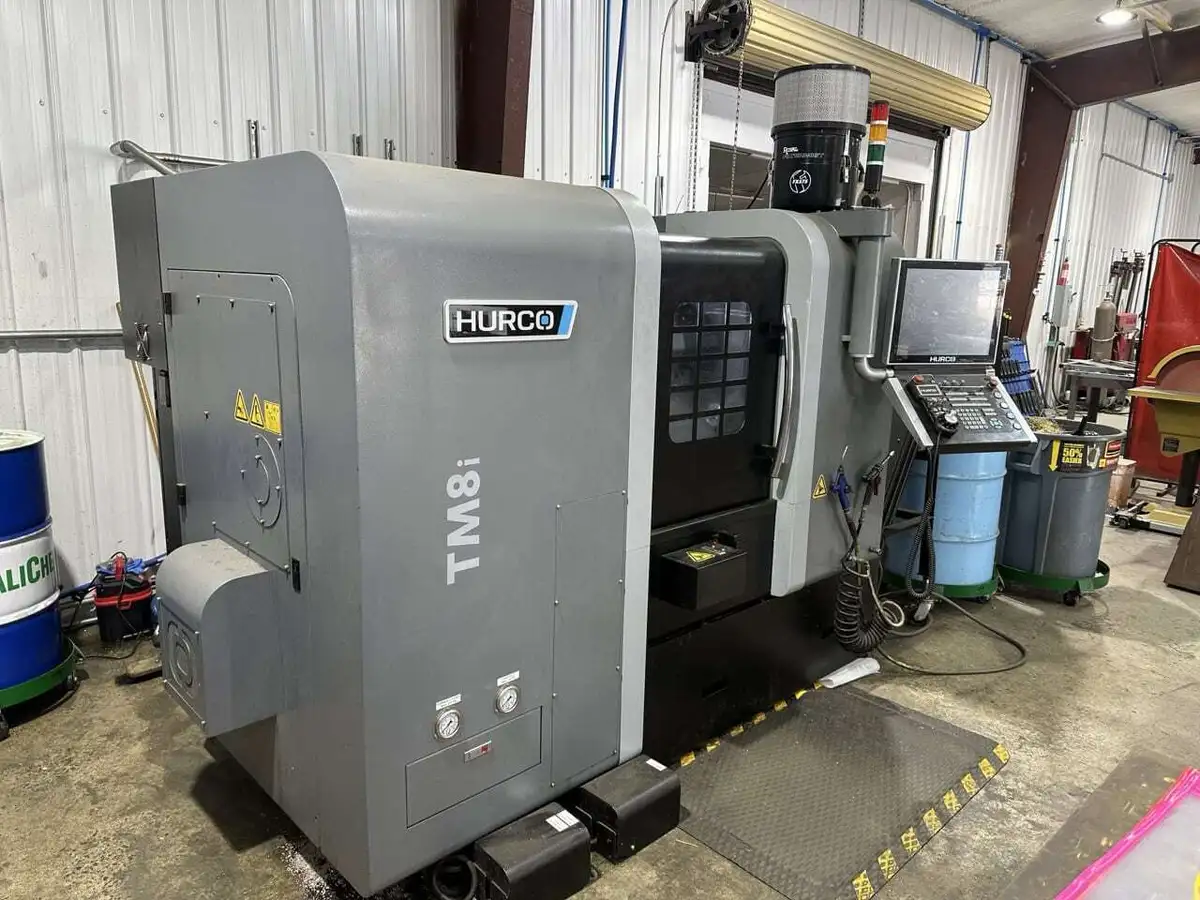

2019 HURCO TM8I

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HURCO
Model:
TM8I
Year:
2019
Stock #:
X4X3090
Status:
For Sale

Description

Used CNC Lathe, equipped with WinMax, chip conveyor, tool presetter, tailstock, parts catcher, and mist collector. Features 8" chuck, 31 hp, 4,000 RPM, and 20.7" max swing. 12-station turret, 2-axis, and 2.6" bar capacity.

Swing20.7"525.78 mm
Machining Length20.7"525.78 mm
# Axis22
Chuck Size8"203.2 mm
Bar Capacity2.6"66.04 mm
Power31 hp23.1 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia14"355.6 mm
TailstockYesYes
ControlCNC (HURCO)CNC (HURCO)
Weight8,708 LBS8,708 LBS

X Axis Travel: 8″
Z Axis Travel: 20″
Rapid Rate Z Axis: 1,181 IPM

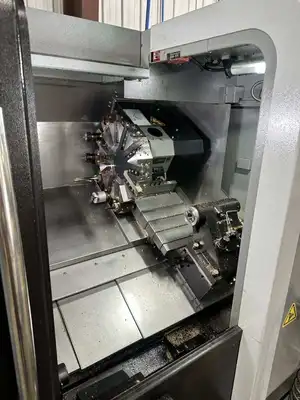

Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14″
Max Turning Length: 20.6″
Max Swing: 20.6″
Distance Between Centers 23.2″
Max torque high gear 161.9 ft. lbs
Turret Index Time .5-1.5 sec
Weight: 8,708 LBS

Hurco WinMax

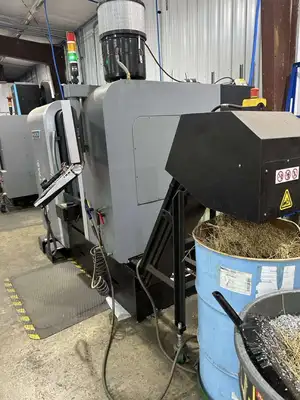

Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Mist collector
