2020 DOOSAN LYNX 2100LB with 12' LNS BARFEED
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe with 12' LNS Barfeed, 22" machining length, 2-axis, 8" chuck, and 2.64" bar capacity. Features include Doosan Fanuc i Series CNC, hydraulic chuck, chip conveyor, and tailstock. Low cutting time: 300 hrs. Original owner.
MAX CUTTING LENGTH 22"
X-AXIS TRAVEL 8.1"
Z-AXIS TRAVEL 22"
RAPID TRAVERSE RATE X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE Z-AXIS 1,181 in/min.
TURRET POSITIONS 12

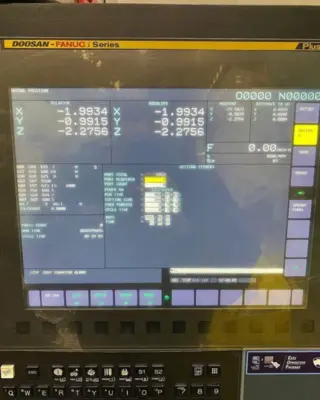

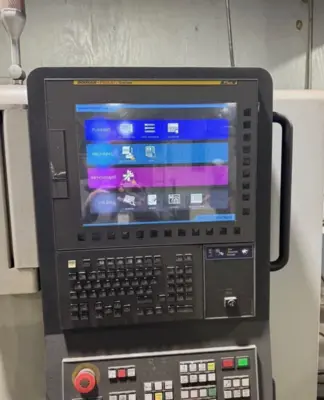

DOOSAN FANUC i SERIES CNC CONTROL

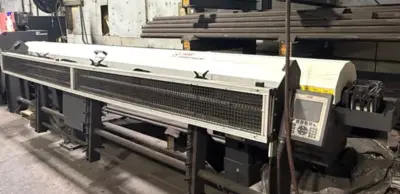

12' LNS SPRINT 565 S2 BARFEED
8" COLLET CHUCK
8” 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
** AS OF JANUARY, 2026 - CUTTING TIME: 300 HOURS
Used CNC Lathe with 12' LNS Barfeed, 22" machining length, 2-axis, 8" chuck, and 2.64" bar capacity. Features include Doosan Fanuc i Series CNC, hydraulic chuck, chip conveyor, and tailstock. Low cutting time: 300 hrs. Original owner.
Imperial
| Machining Length | 22" |
| # Axis | 2 |
| Chuck Size | 8" |
| Bar Capacity | 2.64" |
| Power | 20 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 13.78" |
| Tailstock | Yes |
| Sub Spindle | No |
| Control | CNC (Fanuc) |
| Dimensions | 102" x 63" x 66" |
| Weight | 7500 lbs |
MAX CUTTING LENGTH 22"
X-AXIS TRAVEL 8.1"
Z-AXIS TRAVEL 22"
RAPID TRAVERSE RATE X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE Z-AXIS 1,181 in/min.
TURRET POSITIONS 12
DOOSAN FANUC i SERIES CNC CONTROL
12' LNS SPRINT 565 S2 BARFEED
8" COLLET CHUCK
8” 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
TOOL PRESETTER
TAILSTOCK
PARTS CATCHER
** AS OF JANUARY, 2026 - CUTTING TIME: 300 HOURS
