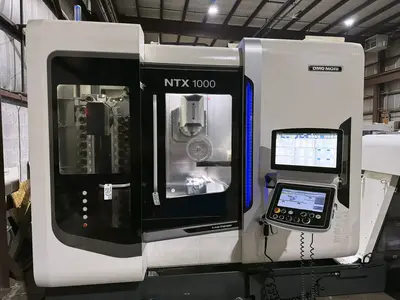

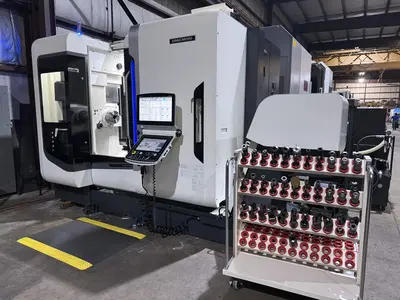

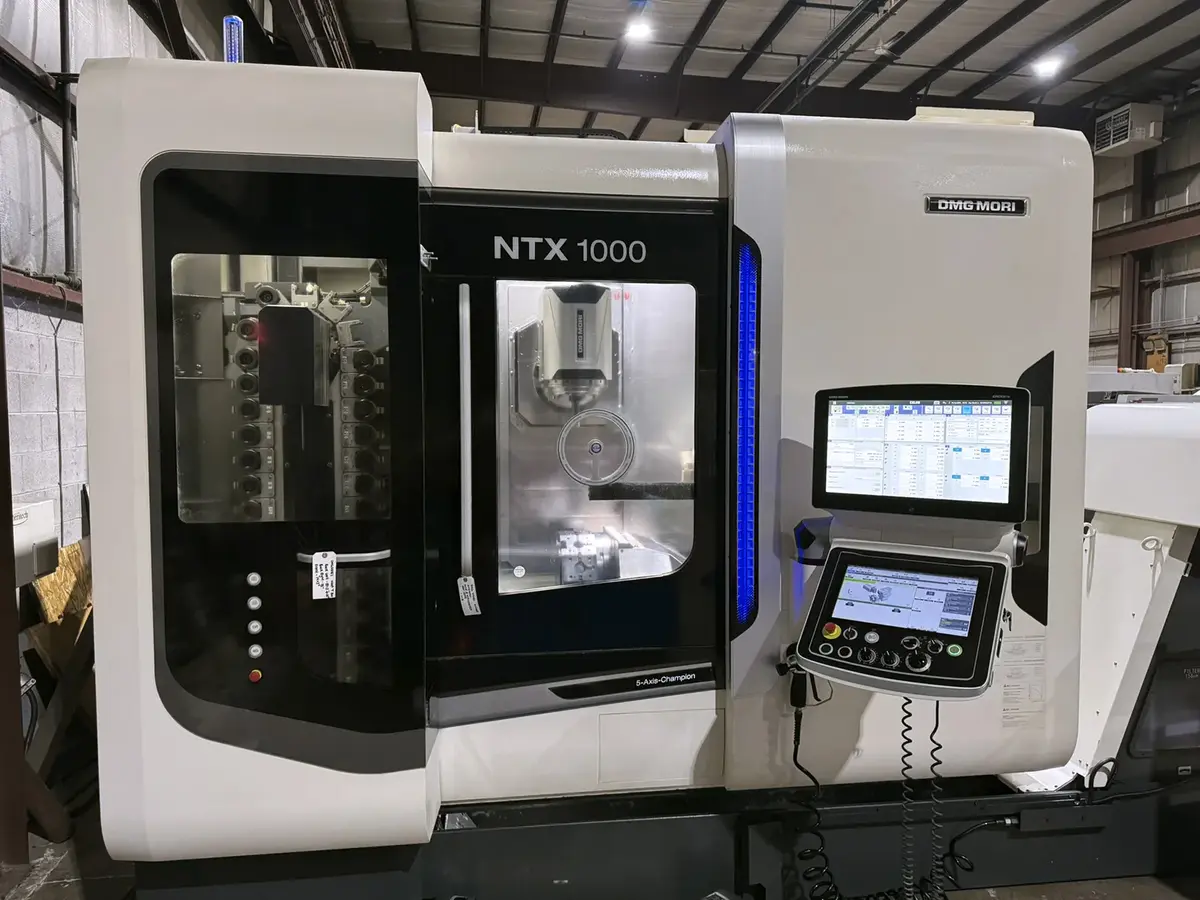

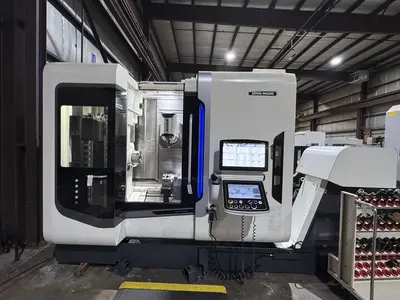

2019 DMG MORI NTX 1000
Have one to sell?
ConditionUsed
1 available
Used 5-axis CNC lathe. Features: 20,000 RPM B-axis milling, CELOS Fanuc control, 38-tool magazine, main/sub spindles with C-axis, Renishaw probe, and more.
MAX TURNING DIAMETER 16.9″
MAX TURNING LENGTH 31.5″
MAX BAR CAPACITY 2.6″
SWING OVER CROSS SLIDE 17.7″
DISTANCE BETWEEN SPINDLES 41.3″
X1 AXIS TRAVEL 17.9″
Y AXIS TRAVEL +/- 4.53″
Z1 AXIS TRAVEL 31.4″
X2 AXIS TRAVEL 6.2″
Z2 AXIS TRAVEL 28.7″
B AXIS TRAVEL 240 Degree
C AXIS 360 Degree (0.001)
X RAPID TRAVERSE RATE 1574.8 Inch Per Minute
Y RAPID TRAVERSE RATE 1574.8 Inch Per Minute
Z RAPID TRAVERSE RATE 1968.5 Inch Per Minute
MAIN SPINDLE NOSE A2-6
MAIN SPINDLE BORE 2.5″
MAIN SPINDLE SPEED 5000 RPM
MAIN SPINDLE MOTOR 15 HP
MAIN SPINDLE CHUCK 8"
SUB SPINDLE NOSE A2-6
SUB SPINDLE BORE 2.0″
SUB SPINDLE SPEED 6000 RPM
SUB SPINDLE MOTOR 15 HP
SUB SPINDLE CHUCK 6"
MILLING SPINDLE TAPER Capto C5
MILLING SPINDLE MAX SPEED 20,000 RPM
TOOL STORAGE CAPACITY 38 tools
LOWER TURRET CAPACITY 10 tools
OVERALL DIMENSIONS 178.5″ x 100.1″ x 101.8″ High
WEIGHT 25,353 lbs Approx.

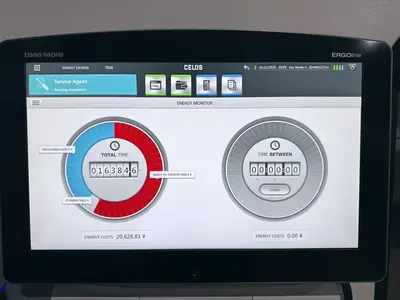

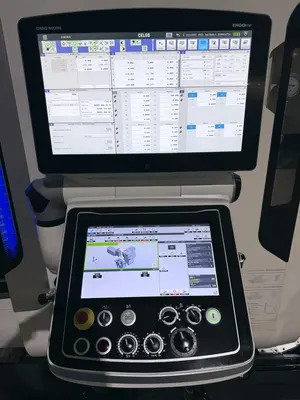

Control : CELOS Fanuc F31i B5

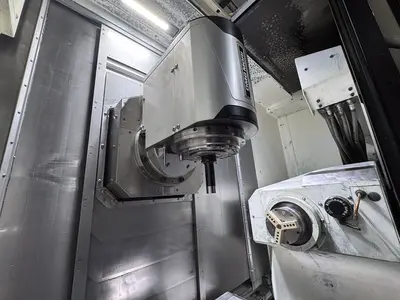

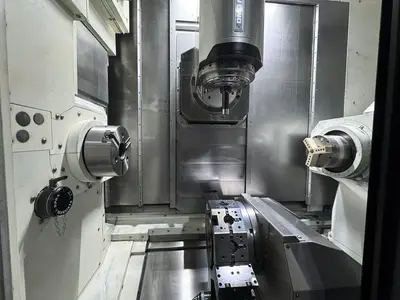

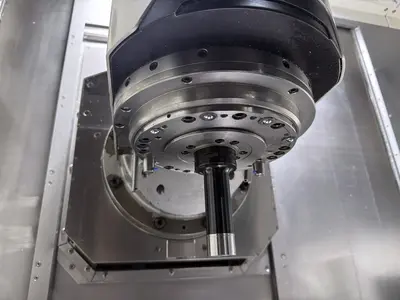

20000 RPM B-axis Milling Head
38-Station Tool Magazine
Full C-Axis on Main and Sub-Spindle
Y Axis Capability

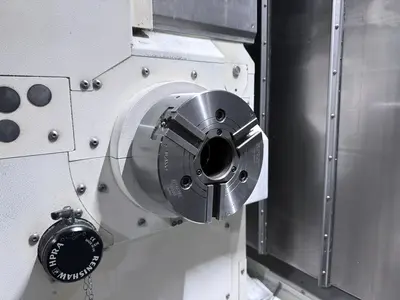

8" Main Chuck
6" Sub spindle Chuck

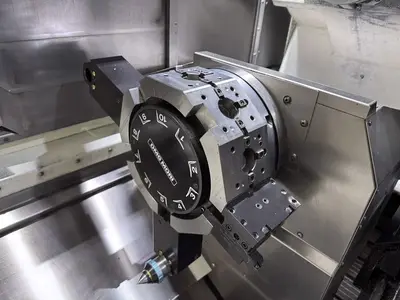

10 Station Lower Turret
Interface for Bar Feeder

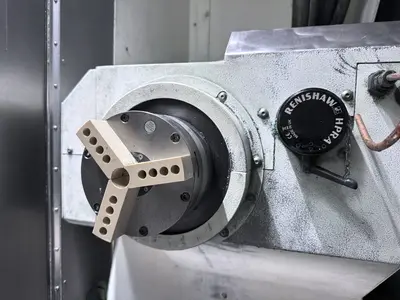

Renishaw Probe
Blum Laser Tool Setter/Monitor
3D Quick SET
Mist Collector
Rigid Tapping
High Pressure Coolant System
Coolant Chiller
Chip Conveyor
LNS Chip Blaster
Automatic Lubrication System

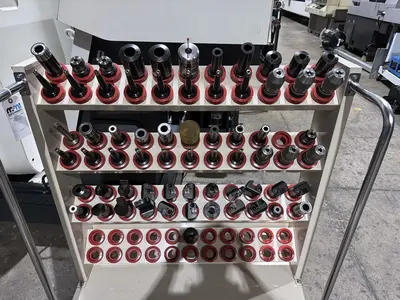

(60) Tool Holders included
