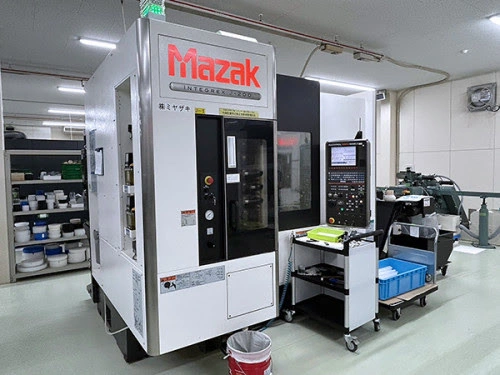

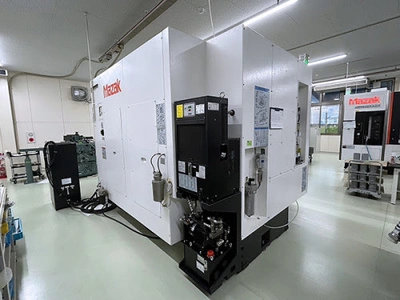

2013 MAZAK INTEGREX J200
Have one to sell?
ConditionUsed
1 available
Used Multi-Axis CNC Lathe: Swing 20.87", Max RPM 5,000, 8" Chuck, B-Axis 12,000 RPM. Equipped with MAZATROL MATRIX, Capto ATC 36, Hydraulic Chucks, and Chip Conveyor.
MAX TURNING DIAMETER 19.69"
MAXIMUM CUTTING LENGTH 19.69"
X-AXIS TRAVEL 17.72"
Z-AXIS TRAVEL 21.65"
Y-AXIS TRAVEL 7.87"
C-AXIS INDEXING 0.001 deg
MAIN SPINDLE BORE DIAMETER 3"
MAIN SPINDLE MAXIMUM BAR WORK 2.5"
MAIN SPINDLE SPEED 5,000 RPM
MAIN SPINDLE HORSEPOWER 15HP
ATC MAGAZINE CAPACITY 36
B AXIS ROTARY TOOL SPINDLE SPEED 12000 rpm
B-AXIS ROTARY TOOL SPINDLE HORSEPOWER 10 hp
B-AXIS INDEXING 1 degree
PARTS CATCHER Yes
CHIP CONVEYOR Yes
MILLING SPINDLE SYNCHRONOUS TAPPING Yes
TOOL EYE AUTOMATIC FRONT SPINDLE Yes
COOLANT THRU MILLING HEAD Yes
MULTI TAP TRANSFORMER Yes
WEIGHT 13,530 LBS
CONTROL CNC (MAZATROL MATRIX)
Hydraulic Chucks
Coolant Thru Milling Spindle
Coolant System
Intelligent Thermal Shield
NC Tail Stock
CAPTO ATC 36
Tool Eye

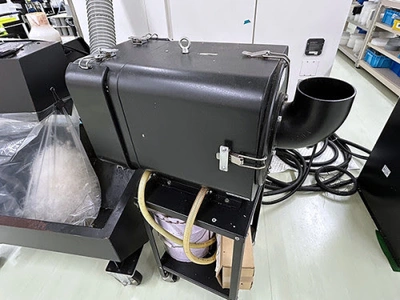

Mist Collector

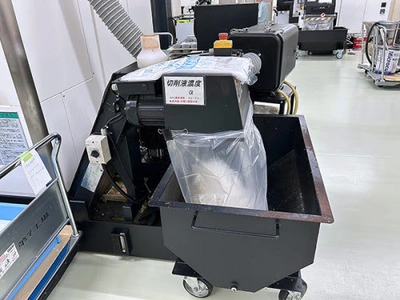

Chip Conveyor

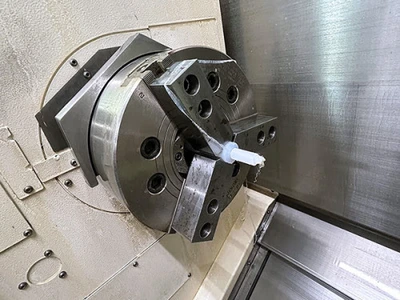

Kitagawa Chuck B210A615A (Maximum rpm 4200)
Touch Probe

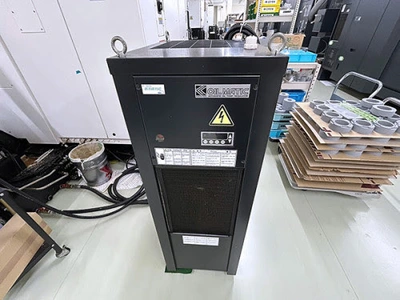

Spindle Chiller
