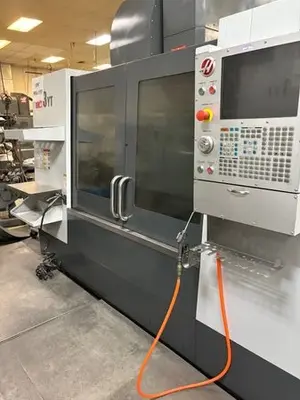

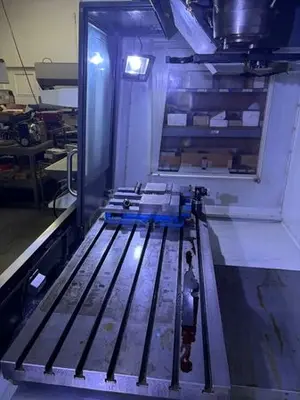

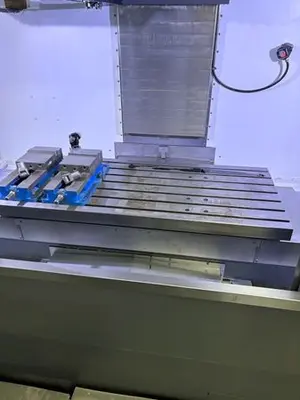

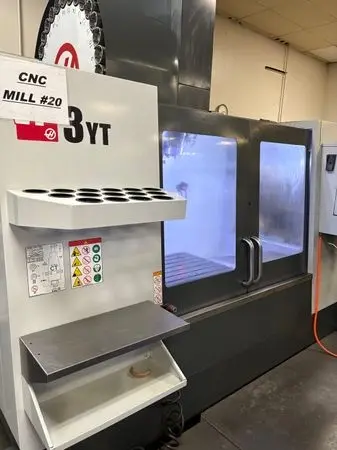

2018 HAAS VF-3YT/50
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center with 40" x 26" x 25" travels, 30 hp, 7,500 RPM spindle, and 30 ATC. Equipped with probe, 4th axis rotary table, and indexer.
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 50
Tool Changer: 30 ATC
Spindle Nose to Table: 7.9" - 32.9"
Max Torque: 340 ft-lbf
Drive System: 2-Speed Gearbox
Max Cutting: 500 ipm
Max Thrust X: 3400 lbf
Max Thrust Y: 4100 lbf
Max Thrust Z: 5600 lbf
Max Tool Weight: 30 lbs
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 6.3 s
Probe
4th Axis Rotary Table
Indexer included
