| Swing | 20.08" | 510.03 mm |
| Machining Length | 20.7" | 525.78 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 12.6" | 320.04 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 90"x72"x65" | 90"x72"x65" |
| Weight | 7,780 lbs | 7,780 lbs |
Chuck size 8" Hydraulic Chuck
Maximum Swing 20.08"
Maximum turning diameter 12.6"
Maximum turning length 20.7"
X-axis travel 6.89"
Z-axis travel 21.65"
Spindle Nose / Bore / Bar Capacity A2-6" / 2.99" / 2.6"
Spindle speed 40 - 4,000 RPM
Spindle motor 20 HP

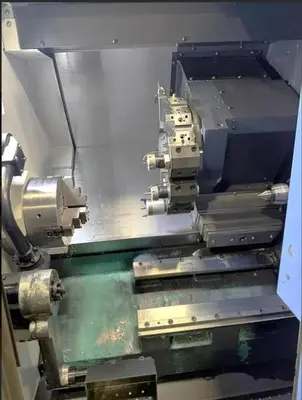

Turret type 12 Position Turret
Rapid traverse rates x, z 1181 PM / 1417 IPM
Tailstock Quill Diameter / Center 2.6" / MT #4
Machine Dimensions LxWxH 90"x72"x65"
Machine weight 7,780 lbs

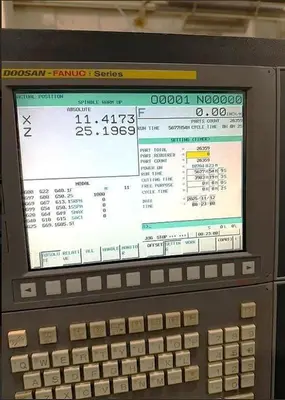

Machine Control Fanuc i Series Control

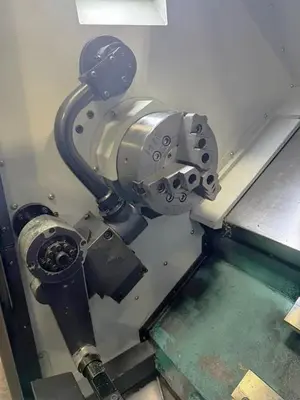

8" Samchully 3 Jaw Hydraulic Chuck
Turbo Chip Conveyor
Tailstock
Tool Pre-Setter
Parts Catcher
Barfeed Interface
Coolant System with Tank & Pump
Embedded Ethernet
64 Pairs Tool Offsets
Card Interface
RS 232 Port Interface
Miscellaneous Tool Blocks
Wired 220V Electrics
**Run Time Hours 5,677**
**Cutting Time Hours 3,983**
This equipment is currently unavailable. Similar equipment available now is shown below.
