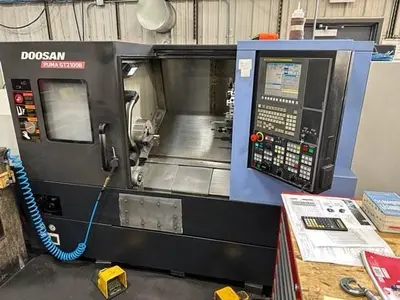

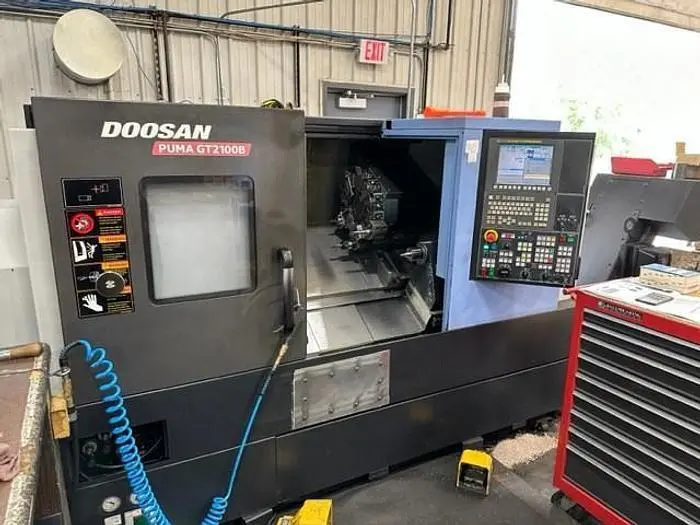

CNC Lathe, used. Features 23.6" swing, 10" chuck, 3.12" bar capacity, 25 kW power, 3,500 RPM. Equipped with Fanuc 0i-TC CNC Control, chip conveyor, tool presetter, and programmable tailstock. Ethernet & USB ports included.

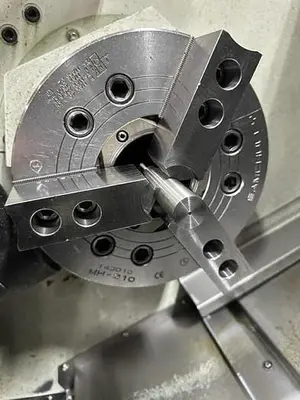

Chuck Size 10" 3-Jaw Hydraulic Chuck
Maximum Swing over Bed 23.6"
Maximum Turning Diameter 15.4"
Maximum Turning Length 21.7"
Distance Between Centers 23"
Maximum Bar Capacity 3.12"
X-Axis Travel 9.1"
Z-Axis Travel 22.8"
Spindle Nose / Spindle Bore A2-8" / 3.6"
Spindle Speeds 3,500 RPM
Spindle Motor 25 HP
Turret Type 12 Station Turret
Rapid Traverse Rates X / Z 945 IPM / 1181 IPM
Tailstock Quill Diameter / Center 3.1" / MT #4
Tailstock Quill Travel 3.1"
Machine Dimensions LxWxH 129" x 65" x 70" approximate
Machine Weight 8,377 lbs.

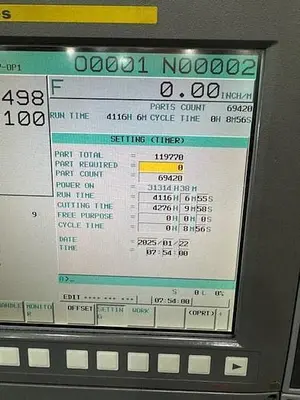

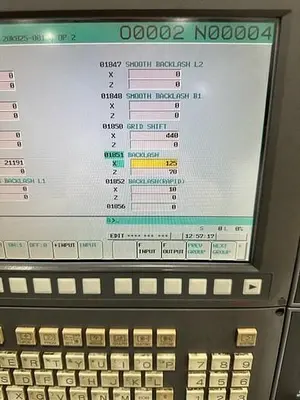

Control Fanuc 0i-TC CNC Control
3.2" Bar Capacity Big Bore Spindle Option
Programmable Tailstock with MT #4 Live Center
Chip Conveyor
Automatic Parts Catcher
Tool Presetter
High Pressure Coolant INTERFACE ONLY (CoolJet unit is not included)
64 Pairs Tool Offsets
Barfeed Interface ONLY
Macro Executer
Doosan Tool Load Monitoring System
Coolant System with Tank and Pump
Ethernet Connection
USB Port Interface
RS 232 Port Interface
Boxed Way Design
All Available Tooling
All Available Manuals
