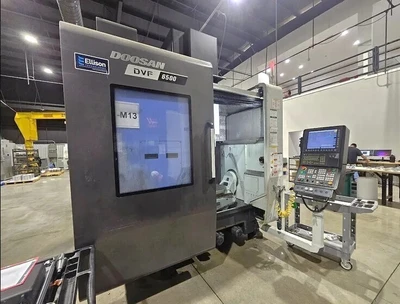

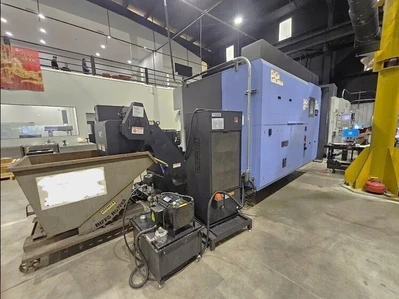

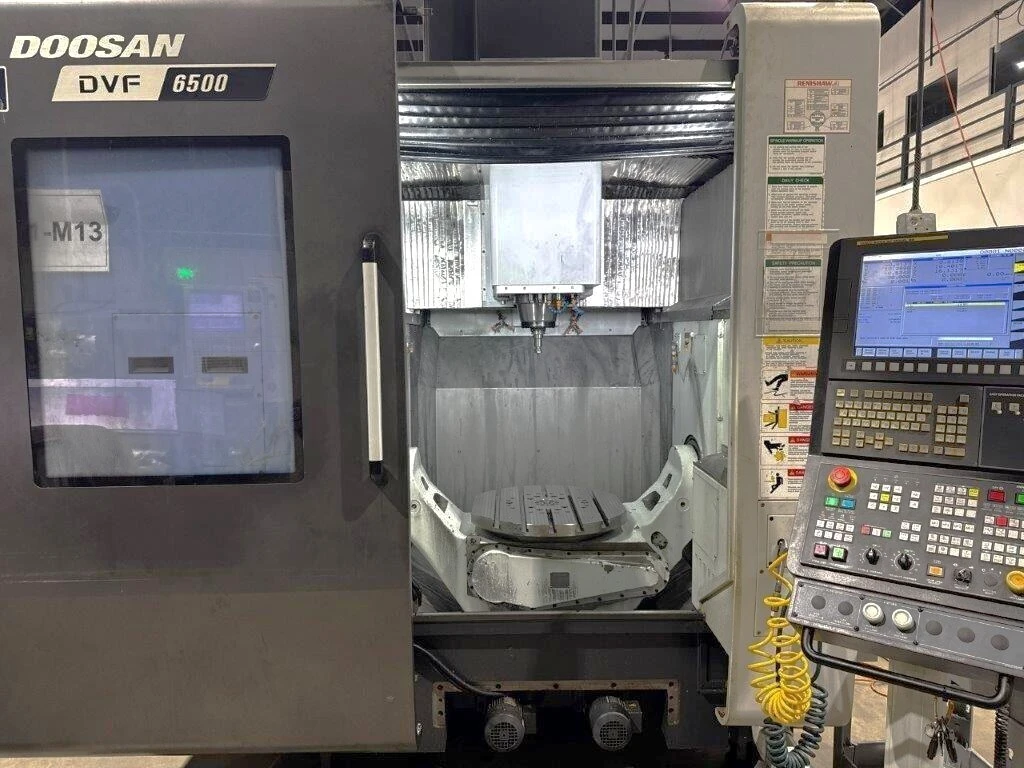

2020 DOOSAN DVF6500
Have one to sell?
ConditionUsed
1 available
Used 5-axis vertical machining center features a 30 hp, 18,000 RPM spindle, Fanuc 31i-B5 Plus control, and a 60-station tool changer. Enhance productivity with advanced tooling and probing systems.

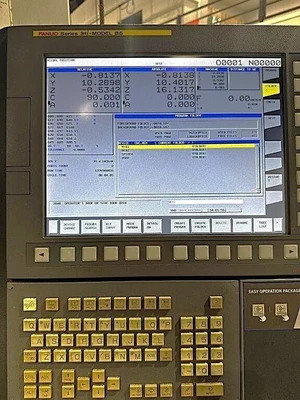

Control Fanuc 31i-B5 Plus
Table Size 25.6"
Maximum Table Load 1,323 lbs.
Maximum Workpiece Diameter 33.1"
Maximum Workpeice Height 19.7"
X-Axis Travel 29.5"
Y-Axis Travel 30.9"
Z-Axis Travel 23.6"
B-Axis Tilt Movement +110 Degrees, - 30 Degrees
B-Axis RPM 20 RPM
C-Axis Rotation .0001 Degrees
C-Axis RPM 20 RPM
Spindle Taper CAT 40 - Big Plus
Spindle Speed 18,000 RPM
Spindle Motor 30 HP
Tool Magazine Capacity 60 Station Tool Changer
Tool Change Time Tool to Tool 1.3 seconds
Tool Change Time Chip to Chip 5.3 seconds
Rapid Traverse Rates 1575 IPM
Machine Weight 32,000 lbs

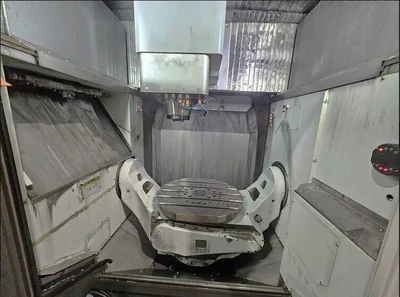

Simultaneous 5 Axis Capability with Trunnion Style Table
Coolant thru the Spindle
60 Station Tool Changer with CAT #40 Big Plus
18,000 RPM Spindle
Renishaw Tool & Part Probing

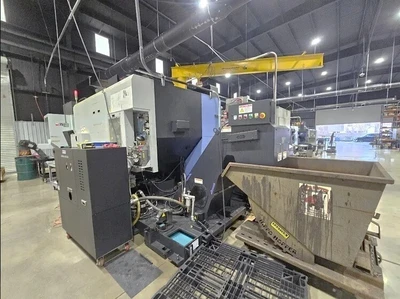

Chip Conveyor
Dual Chip Augers
Table Equipped with 6 Rotary Ports for (4) Hydraulic/(2) Air Through Table
Operator Panel for Hydraulic Fixturing
Hydraulic Pump for Fixture Interface (200 Bar)
Flood Coolant
Bed Flushing Coolant
Air Gun
Thermal Compensation Sensor (Spindle & Structural)
Remote Jog Handle

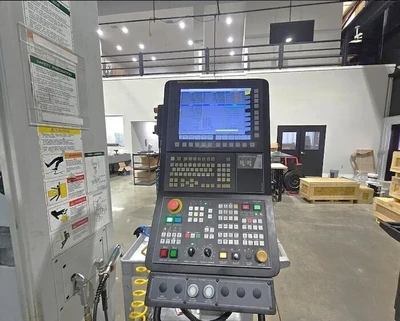

15" Touch Screen Control
All Available Manuals
