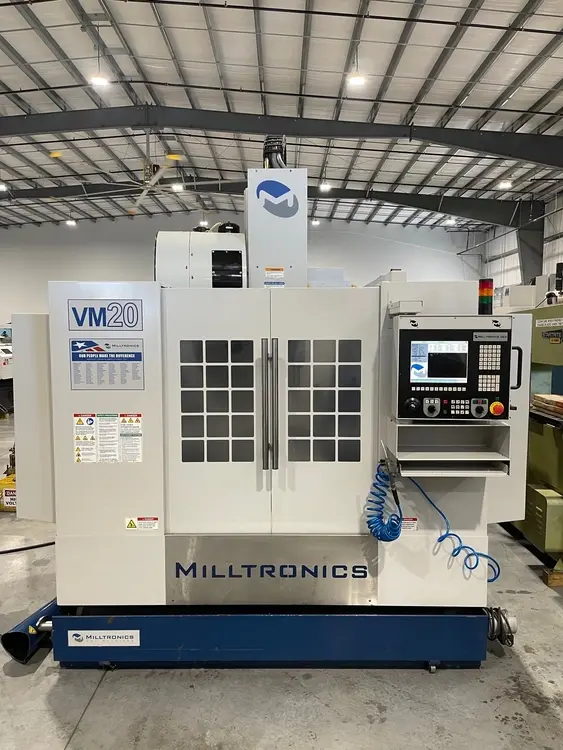

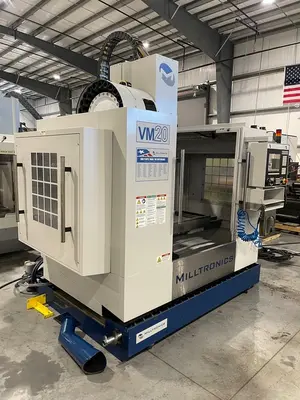

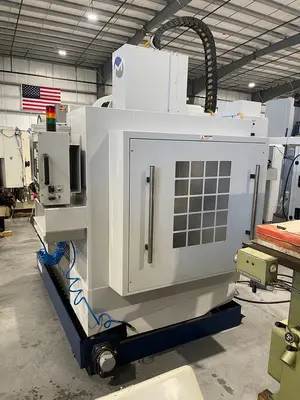

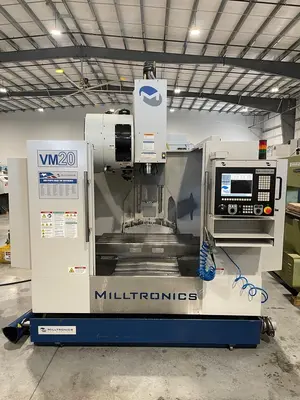

2011 MILLTRONICS VM20
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center with 40" x 20" x 26" travel, 24 hp spindle at 15,000 RPM, CAT 40 taper, and 24 ATC. Features Milltronics 8200 CNC, chip auger, and 50-gallon coolant tank. Max table load 2000 lbs, wired for 220V 3 phase.

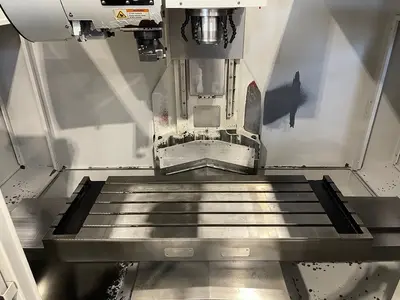

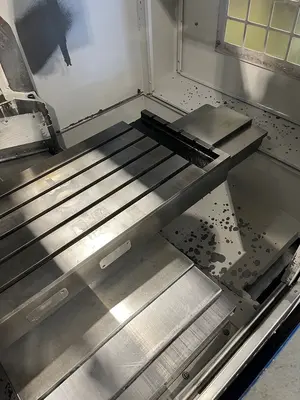

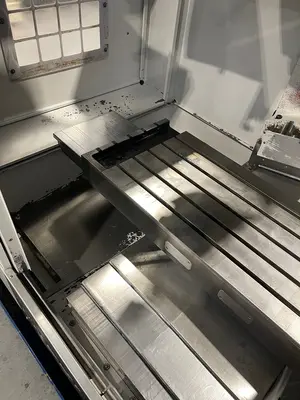

Table size- 34” x 20”
Maximum table load- 2000 Lbs.
Throat distance / Spindle to column- 21”
Spindle to table- 4” / 30” Min/Max
Tool change time- 8 seconds
X,Y,Z, Rapids- 1000 I.P.M.
Max feedrate- 500 I.P.M.

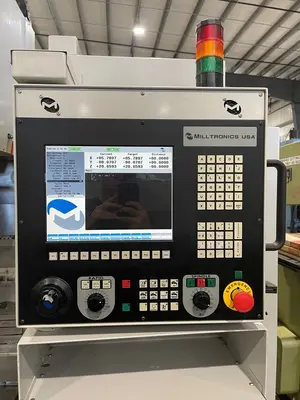

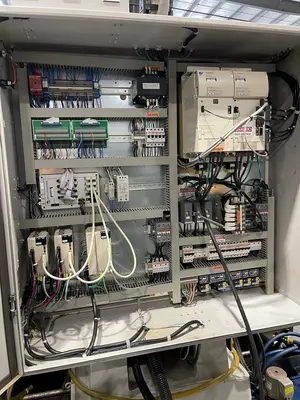

Milltronics 8200 Series CNC Control USA & Memory stick port

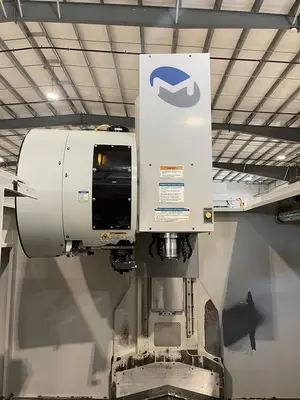

Chip auger
Coolant tank 50 gallon capacity & (2) pumps
(6) Leveling pads
24/15 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 10,000 Lbs.
Machine dimensions- 92” x 92” x 109” H
