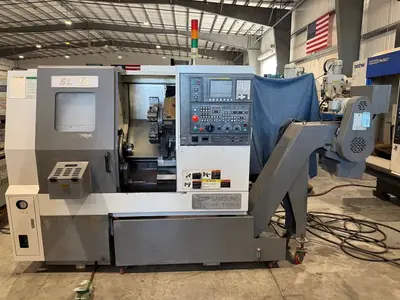

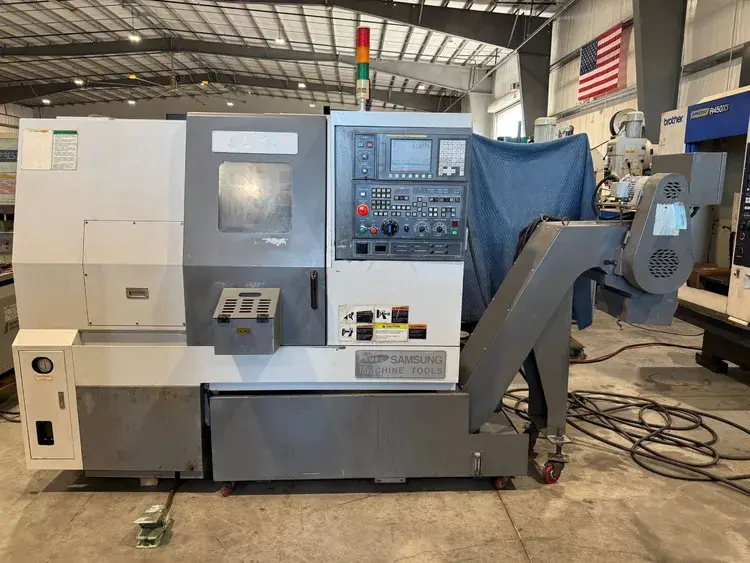

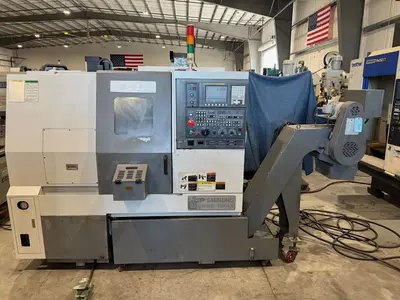

Used CNC Lathe: Max swing 17.37”, 10-station turret, and 6,000 RPM spindle. Equipped with FANUC Oi-TF control, tool presetter, Royal chuck, tailstock, and chip conveyor. Dimensions 133” x 60” x 82”, 8250 lbs. 20 HP motor.
Max swing over bed- 17.37”
Max swing over carriage- 11.81”
Max distance between centers- 11.81”
X axis travel- 7.09”
Z axis travel- 13”

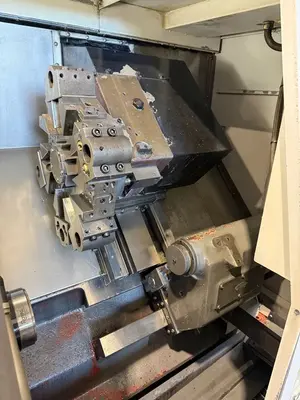

Turret capacity- 10 station
Spindle nose- A2-5
Spindle bore- 2.09”
Spindle speeds- 6,000 R.P.M.

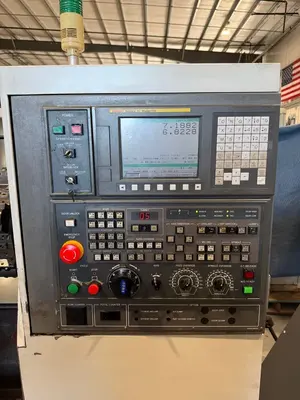

FANUC Oi-TF CNC Control
Run time- 6,896
Tool preseter

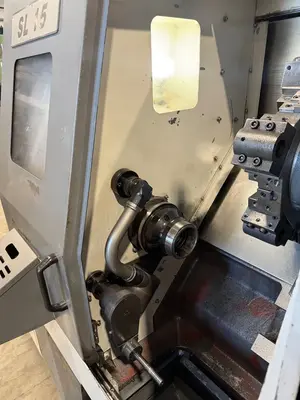

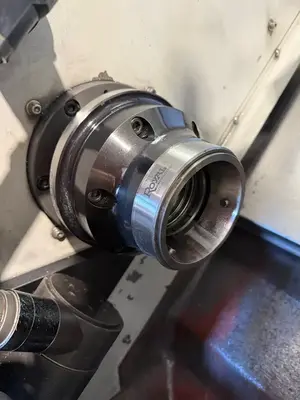

ROYAL Collet chuck “Quick Grip 65”
Tailstock
Chip conveyor
Coolant tank & pump
20 H.P Spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 8250 Lbs.
Machine dimensions- 133” x 60” x 82” H
