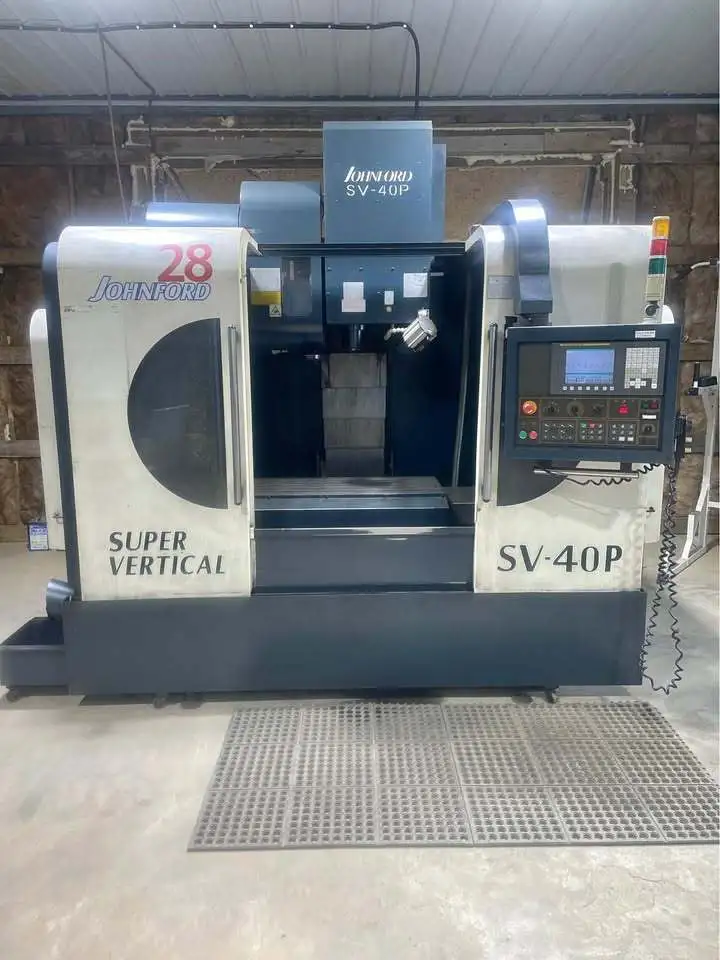

2008 JOHNFORD SV-40P
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center. Features 41" x 19.7" x 24" travel, 15 HP spindle, up to 10,000 RPM, CAT 40 taper, and Fanuc Oi-MC control. Equipped with chip auger, coolant pump, automatic lube system, and more. Cutting hours: 4660.
-40 taper (CAT)
-X axis travel 41.3”
-Y axis travel 19.7”
-Z axis travel 24”

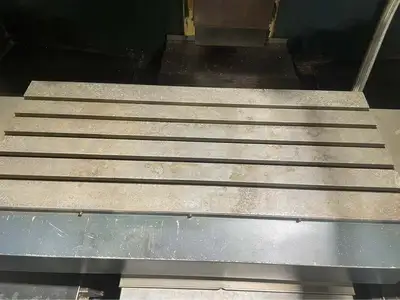

-Table working surface W X L, 19.7” X 47.2”
-Spindle motor 15 HP (30-minute 20 HP)
-Table load capacity 1320 lbs
-Distance spindle face to table MAX 28”
-Distance spindle face to table MIN 3.94”
-Distance spindle center to column 21.7”
-Spindle speeds range 60- 10,000 RPM
-Power rapid traverse (X,Y axis) 1181 IPM
-Power rapid traverse (Z axis) 787 IPM
-Torque rating (X,Y,Z axis) 96.6 IN/ LBS
-3 phase/ 220 v
-Overall dimensions L X W X H, 115” X 87” X 119”
-Weight 12,125 lbs

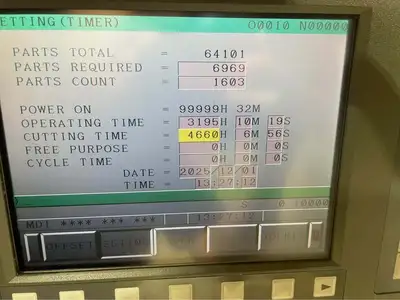

-Cutting hours 4660

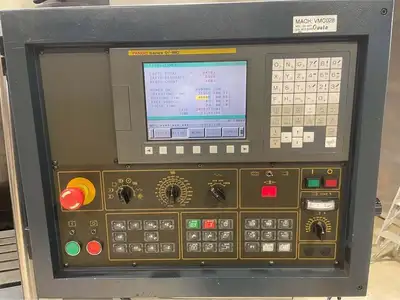

-Fanuc Oi- MC control
-PCMCIA card
-Chip auger
-Coolant pump and tank
-Jog pendent
-Automatic lube system

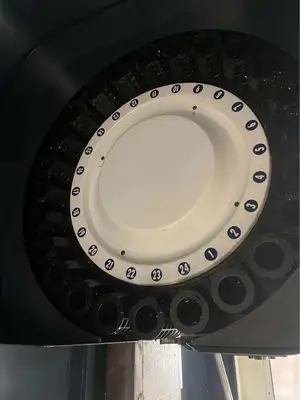

-24 station side mount tool changer (twin- arm cam-type)

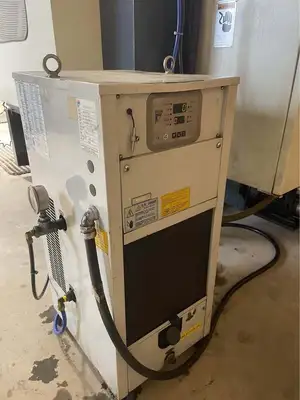

-Spindle oil chiller Harbor Precise
