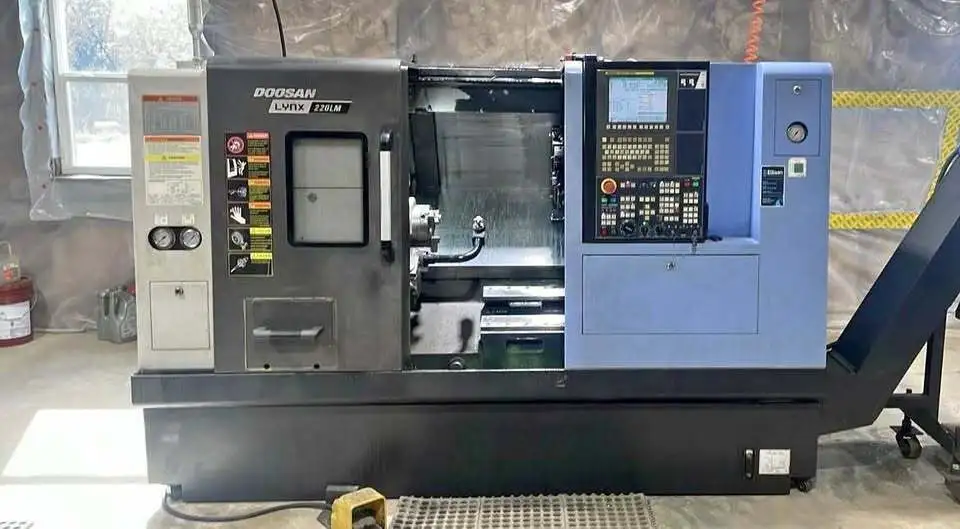

2015 DOOSAN LYNX 220LMA
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe: Max RPM 6,000, 20 hp, 3-axis, 6.5" chuck, bar capacity 2". Equipped with tool presetter, Fanuc control, chip conveyor, and more. 4458 cutting hours.
-Axis travels X= 6.9”, Z= 21.7”
-C axis 360 degrees full rotational control w/ .001” minimum indexing angle
-4458 cutting hours

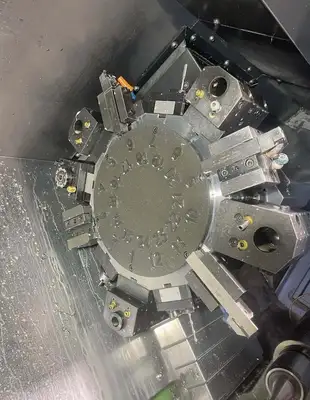

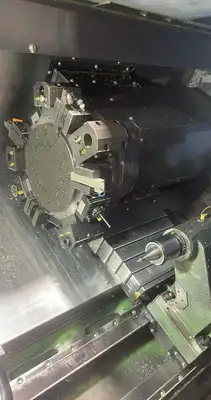

-24 Station Turret
-A2-5 Spindle nose

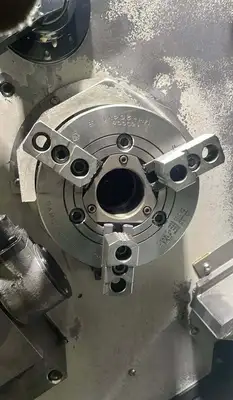

-6.5” Three jaw Samchully hydraulic chuck
-Max RPM 6,000 Spindle
-Max RPM 6,000 Live tool
-Power: 220v, 15 HP, 3 phase
-Maximum turning diameter 10”
-Distance between centers 24”
-2.05” Thru spindle bore
-3/4” OD tool shank
Machine dimensions: L X W X H
101” X 64” X 67” (without conveyor)
-Tool presetter
-MT 4 tailstock w/ live center

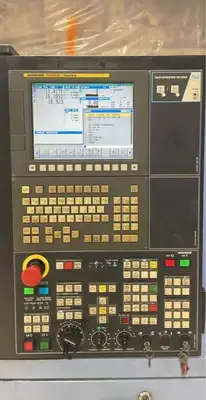

-Fanuc i series Control
-USB port

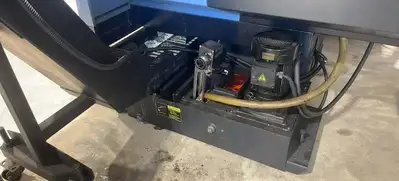

-Hennig Chip conveyor
-High pressure Coolant pump with tank
-KEM Oil skimmer
-Auto lube
-Original manuals
-Static tool holders included for OD and ID
-Live tool holders: 2 radial, 1 axial
