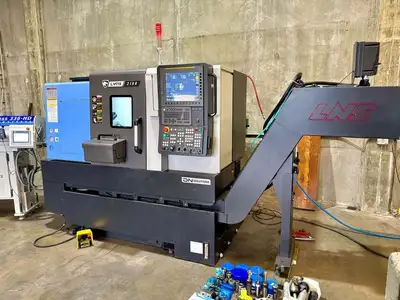

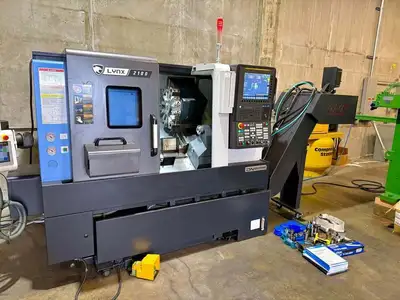

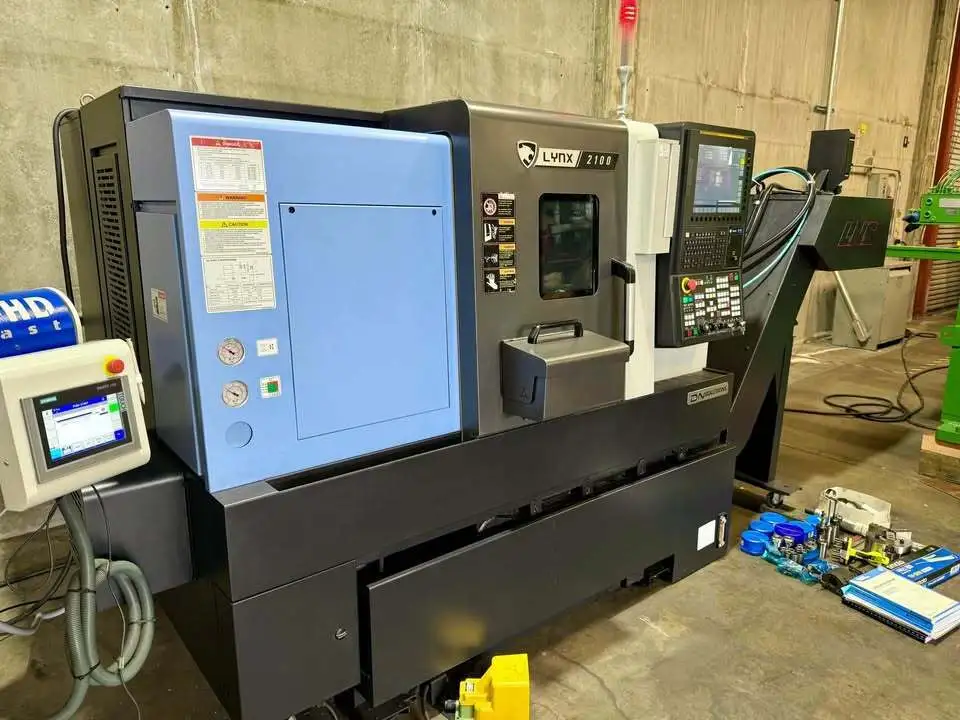

2022 DN SOLUTIONS Lynx 2100A
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, used but packed with high-end features: 6,000 RPM spindle, 15 HP motor, 12-station turret, touchscreen control, chip conveyor, and more. Includes IEMCA Boss 552/37 HD Bar Feeder.
Bar Capacity: 2"
Main Chuck Size: 6"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Wired 220 volts 3 PH
X Axis Travel: 8"
Z Axis Travel: 13"
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Turret Tools: 12 Station
Turret Index Time: 0.11 Seconds
Tool Size (OD/ID): 1" / 1"
Max Turning Dia: 13.7"
Max Turning Length: 13"
Max Swing Over Bed: 23"
Swing Over Cross Slide: 15.7"
Tailstock:
Quill Diameter: 2.56"
Travel Distance: 14.1"
Taper Size: MT#4
Dimensions
L 144" W 62" H 72"
Weight 6,900 lbs

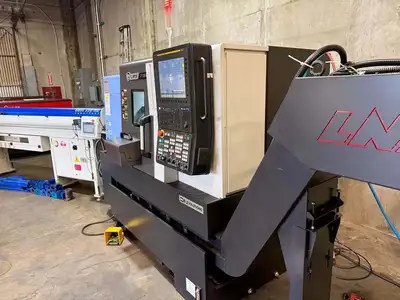

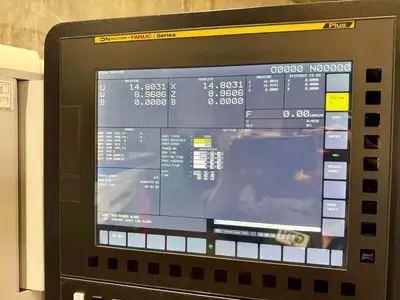

DN Solutions Fanuc i Series Plus Touch Screen Control

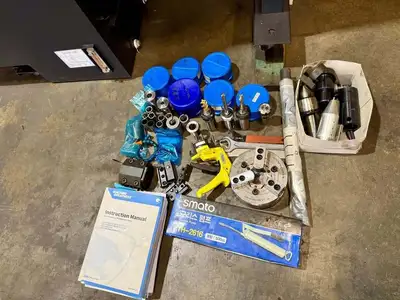

Royal Quick-Grip Collet Chuck with Collets
6" Chuck
12 station Automatic Turret
LNS Chip Conveyor
Parts Catcher
Programmable Tailstock
Tool Presetter
USB Port & RS-232 Port
PCMCIA Card Interface
Coolant System

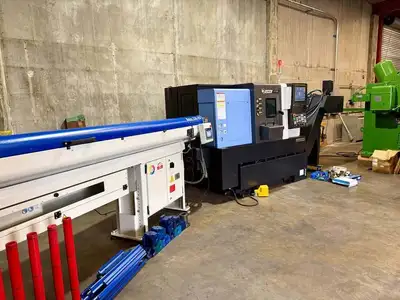

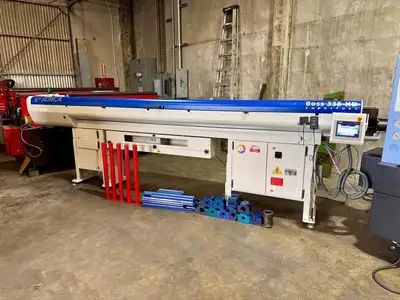

2022 IEMCA Boss 552/37 HD Bar Feeder with Tools
Foot Switch
