2023 DOOSAN PUMA 5100B
Have one to sell?
ConditionUsed
1 available

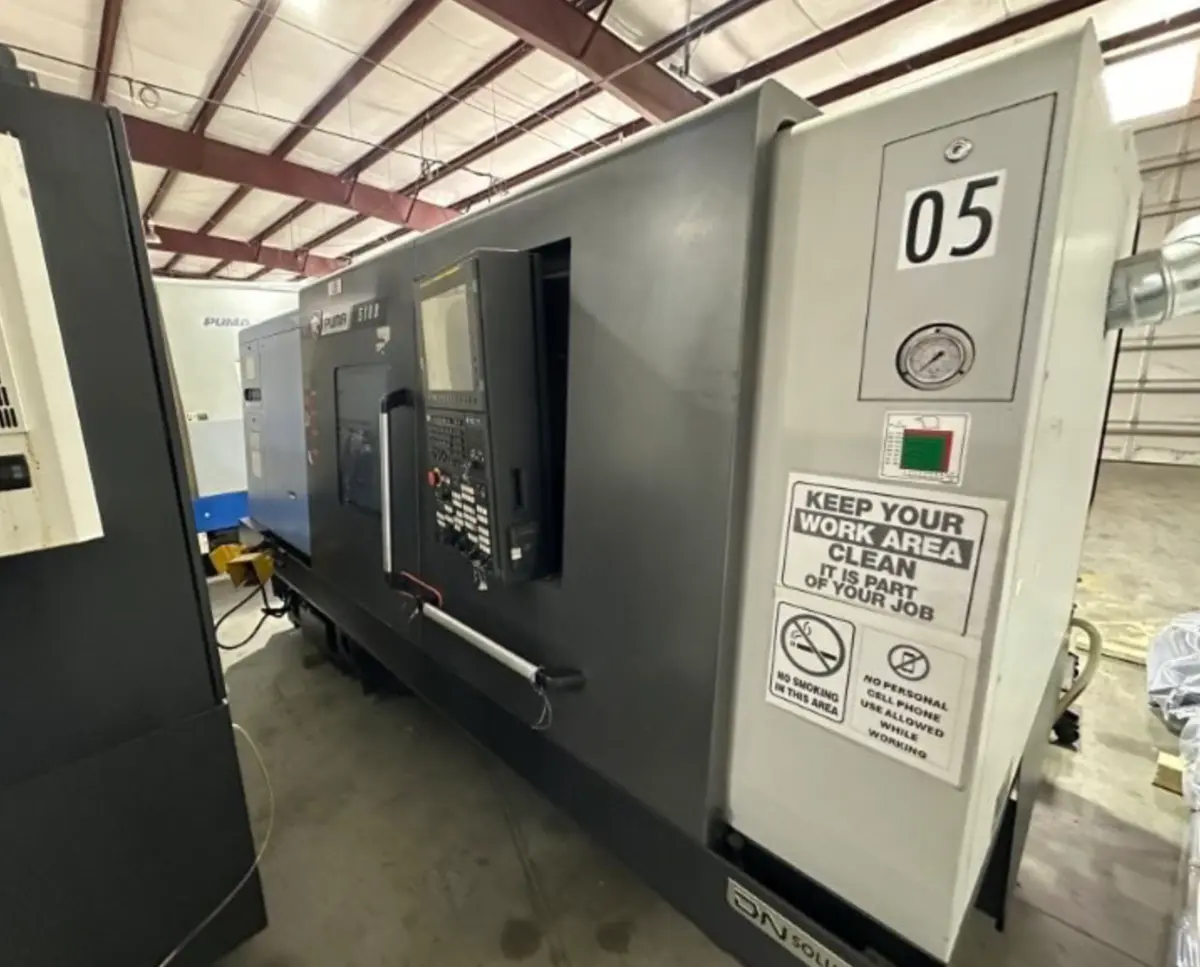

Used CNC Lathe available; offers a 24" chuck, 6.6" bar capacity, and 60 HP power. Achieve up to 1,500 RPM with a 26" turning diameter.
Chuck Size: 24″
Max Turning Diameter: 26″
Max Turning Length: 39″
Spindle Bore / Bar Capacity: 6.6 in bore (167 mm)
Spindle & Performance
Spindle Power: 60 HP (45 kW)
Max Spindle Speed: 1,500 RPM
Turret Stations: 12
Size & Weight
Approx Weight: 23,369 lbs (10,600 kg)
Machine Footprint: ~87″ L × 81″ W × 86″ H
