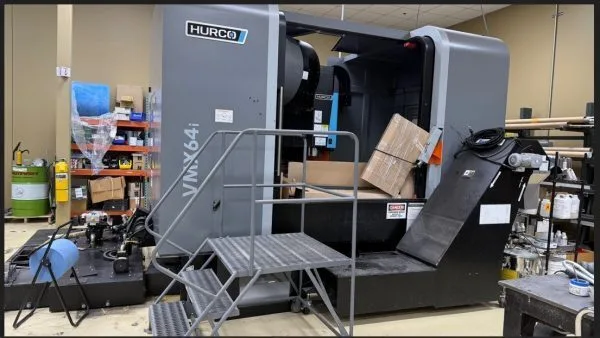

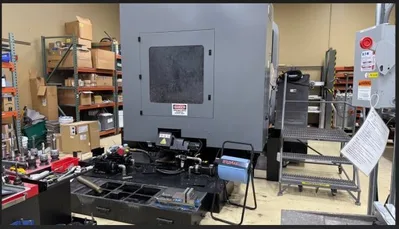

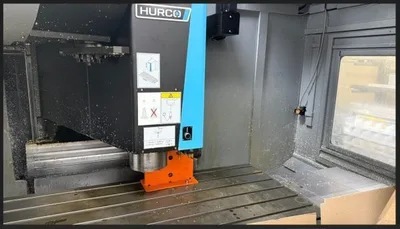

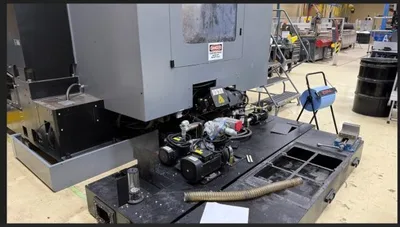

Used Vertical Machining Center: 64"x34"x30" travel, 66"x35" table, 12,000 RPM spindle, 24 hp, 30 tool ATC, and advanced features like WinMax Control, coolant through spindle, and Renishaw probing.
X-Axis Travel: 64″
Y-Axis Travel: 34″
Z-Axis Travel: 30″
Table Size (L x W): 66″ x 35″
Maximum Weight on Table: 6,000 lbs
Spindle Speed: 12,000 RPM
Spindle Taper: CAT 40/Big Plus
Spindle Power: 24 hp
Tool Changer: 30 ATC
Approx. Machine Weight: 35,000 lbs
Approx. Dimensions: 249.5″ x 177.0″ x 131.3″
WinMax Control
Coolant Through Spindle
Renishaw Tool & Part Probing (OMP40/OTS)
Tool and Material Library
NC/Conv Merge
2D DXF Import
Ultipocket, Insert Pocket, Helical Ramp
Rigid Tapping
Ultimotion
