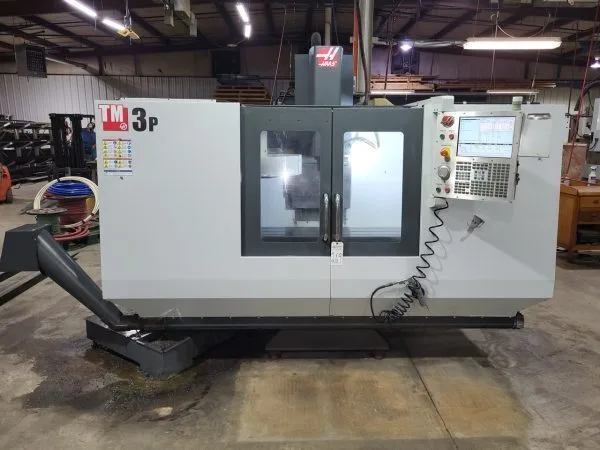

2012 HAAS TM-3P

X-AXIS: 40”
Y-AXIS: 20”
Z AXIS: 16”
SPINDLE NOSE TO TABLE ~ MAX.: 20”
SPINDLE NOSE TO TABLE ~ MIN.: 4”
TABLE
LENGTH: 57.75”
WIDTH: 14.5”
T-SLOT WIDTH: 5/8”
T-SLOT CENTER DISTANCE: 4.92”
NUMBER OF STD T-SLOTS: 3
MAX. WEIGHT ON TABLE: 1000 LBS.
SPINDLE
MAX. RATING: 7.5 HP
MAX. SEED: 6000 RPM
MAX. TORQUE: 33 FT-LB @ 1200 RPM
DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE
TAPER: CT 40
FEEDRATES
MAX. CUTTING: 400 IN/MIN
RAPIDS ON X: 400 IN/MIN
RAPIDS ON Y: 400 IN/MIN
RAPIDS ON Z: 400 IN/MIN
AXIS MOTORS
MAX. THRUST X: 2000 LBS
MAX. THRUST Y: 2000 LBS
MAX. THRUST Z: 2000 LBS
TOOL CHANGER
TYPE: CAROUSEL
CAPACITY: 20
MAX. TOOL DIAMETER (FULL): 3.5”
MAX. TOOL WEIGHT: 12 LBS
TOOL-TO-TOOL (AVG): 5.7 SEC
CHIP-TO-CHIP (AVG.): 6.5 SEC
