2004 HANWHA XD-20H
Have one to sell?
ConditionUsed
1 available

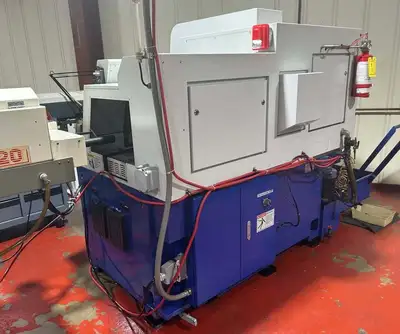

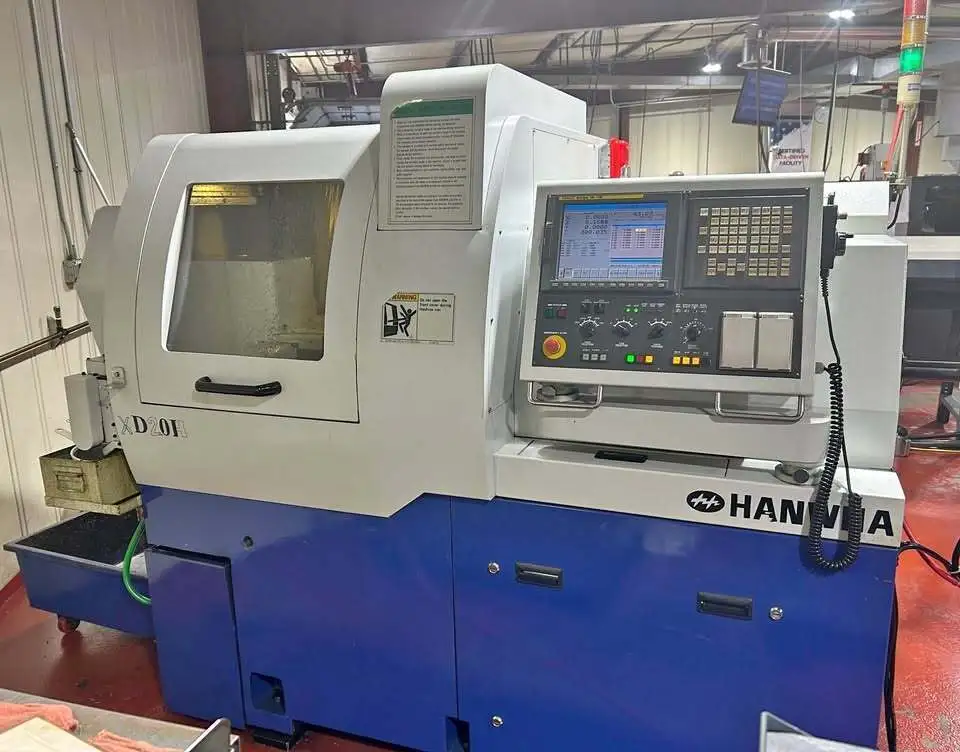

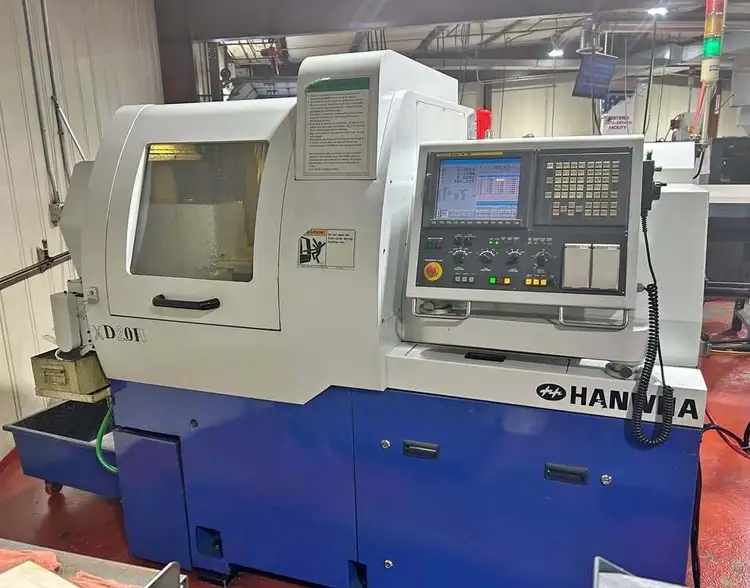

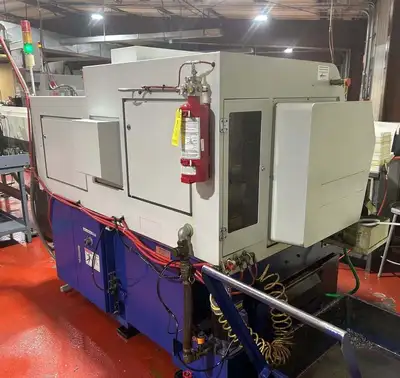

Swiss Type Automatic Screw Machine in used condition. Features a 0.787" spindle hole diameter, main and sub spindles with full “C” axis, spindle speeds up to 10,000 RPM, and equipped with Fanuc 18i-TB control, bar feed, and fire suppression system.
Max Material capacity: 20 mm

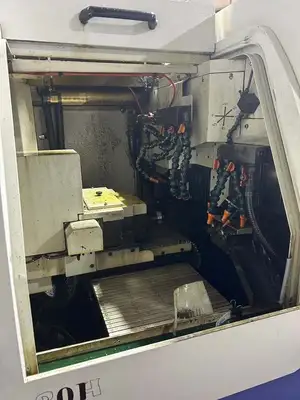

Main spindle is full “C” axis
Sub spindle full “C” axis
Main spindle speed: 200-10,000 RPM
Sub Spindle speed: 200-10,000 RPM

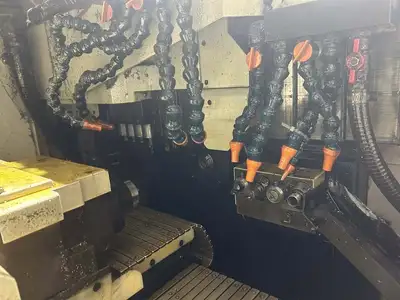

Live tools speed: 200-8000 RPM
Main and sub collets: TF25
Main guide bushing: TD25NS
Power on time: 27,410 Hrs
Cut time: 11,237 Hrs
Weight: 2580kg (5687 Lbs)
Bar Diameter 4 mm – 20 mm
FireTrace Fire Suppression System

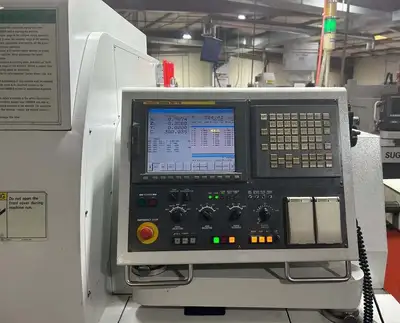

Control: Fanuc 18i-TB

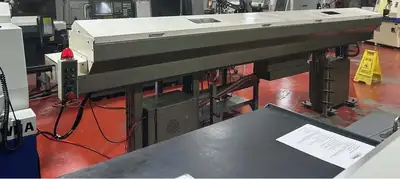

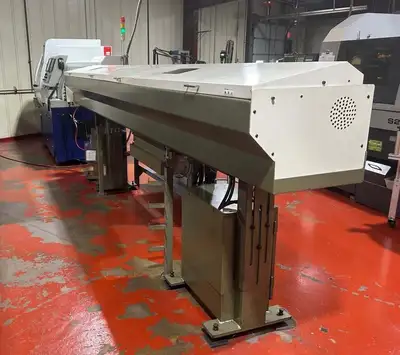

Bar Feed
FEDEK HM series
Weight 760kg (1675 lbs)
