2018 DOOSAN LYNX 2100LSYB
Have one to sell?
ConditionUsed
1 available

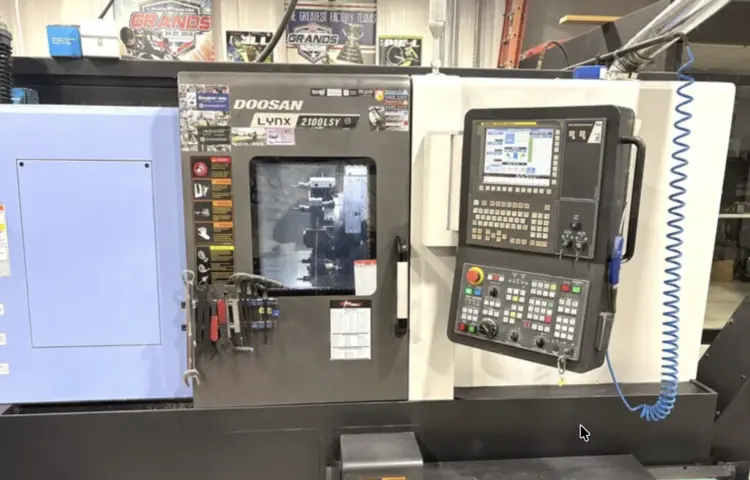

2018 DOOSAN LYNX 2100LSYB CNC Lathe features 4-axis operation with a 20 hp motor and max RPM of 4,500. Equipped with FANUC i-Series CNC Control, touchscreen, new 8" & 5" chucks, live tooling, subspindle.
SWING OVER BED 23.6"
MAX CUTTING DIAMETER 11.8"
MAX CUTTING LENGTH 20.1"
X-AXIS TRAVEL 8.1"
Y-AXIS Yes
Y-AXIS TRAVEL 4.1
Z-AXIS TRAVEL 22"
C-AXIS INDEXING FULL C-AXIS
CHUCK SIZE 8"
BAR CAPACITY 2.6"
SPINDLE BORE 3"
SPINDLE NOSE A2-6
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE - X-AXIS 1,181 in/min.
RAPID TRAVERSE RATE - Y-AXIS 393 in/min.
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 5"

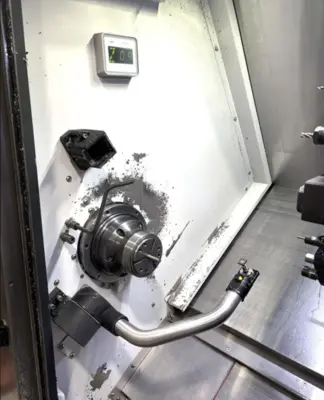

SUB SPINDLE - SPINDLE BORE 1.7"
SUB SPINDLE - SPINDLE MOTOR 5 hp
SUB SPINDLE - SPINDLE SPEED 6,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 22"

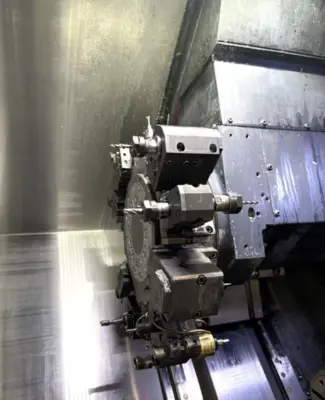

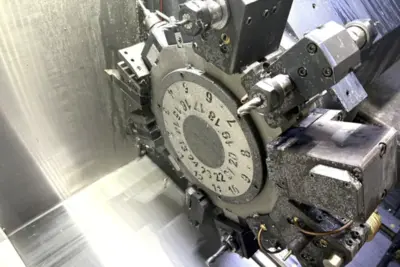

TURRET CAPACITY 24 tool positions
TURRET TYPE BMT45
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM

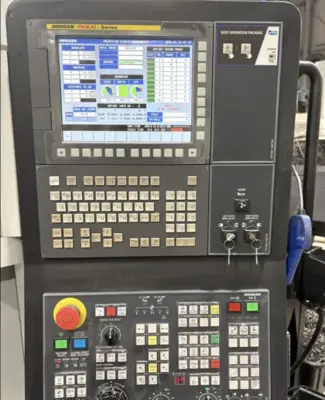

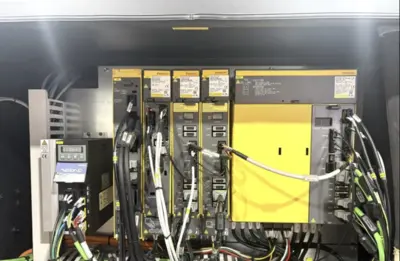

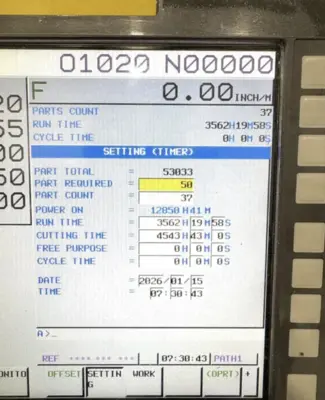

FANUC i-SERIES CNC CONTROL WITH TOUCHSCREEN
SUB SPINDLE
Y-AXIS
LIVE MILLING
8" MAIN SPINDLE CHUCK (NEW)
5" SPINDLE CHUCK (NEW)

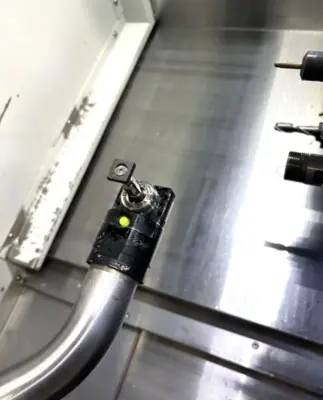

TOOL PRESETTER
PARTS CATCHER

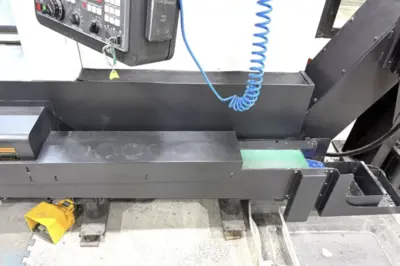

EXTERNAL PARTS CONVEYOR

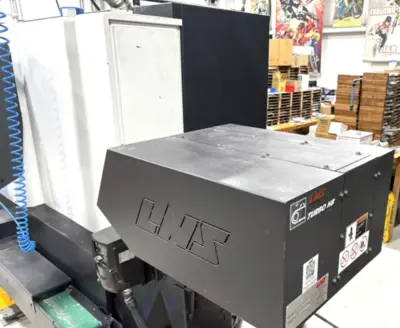

LNS TURBO HB SIDE DISCHARGE CHIP CONVEYOR
COOLANT SYSTEM
WORK LIGHT
USB
