MEUSER L
Have one to sell?
ConditionUsed
1 available

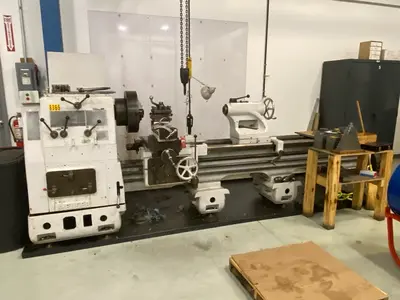

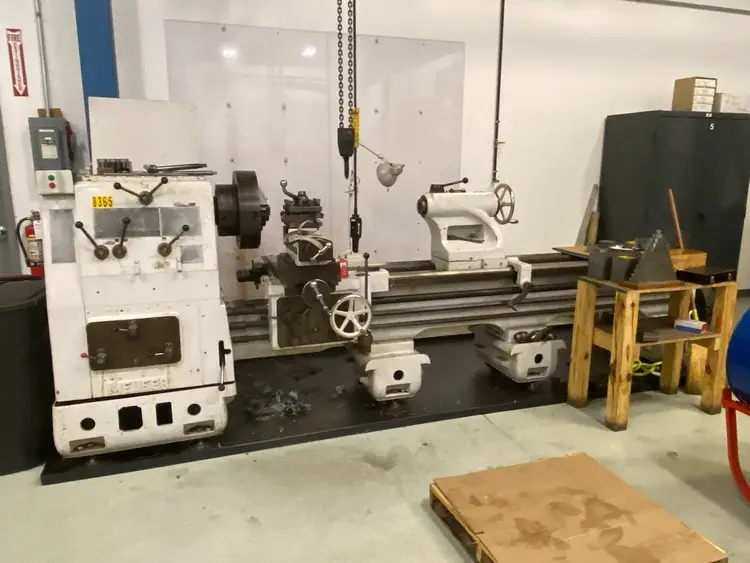

Used Engine Lathe. Key specs include 32" swing, 100" centers, 3" spindle bore, 20 HP motor, and max RPM of 900. Features taper attachment and threading capability. Approx. weight 12,700 lbs. Comes with 18" 3-jaw chuck and tooling.
Hole Thru Spindle 3"
Swing Over Bed Ways, Rated 32"
Swing thru Gap 45"
Swing Over Cross-Slide 23.75"
Center Distance, Maximum 100"
Gap Length 16"
Gap Length, Front of Faceplate 11"
Cross-Slide Cross-Feed Travel 18.5"
Top-Slide Cross-Feed Travel 8"
Tailstock, Quill Diameter 5"
Tailstock, Spindle Travel 9.5"
Tailstock, Spindle Taper #6 MT
(12) Spindle Speeds, Range 10 to 900 RPM
(88) Carriage Longitudinal Feeds .00138 to .31496 IPR
(88) Cross-Slide Cross Feeds .00035 to .07874 IPR
(86) Thread Changes, Range 1/2 to 152 TPI
(60) Metric Thread Changes, Range .50 to 76 MM
(82) Diametral Pitch Changes, Range 1 to 176 DP
(35) Module Threads, Range .25 to 21
Motor Horsepower 20 HP
Electrical System 220-440/3/60
Weight, Approximately 12700 LBS

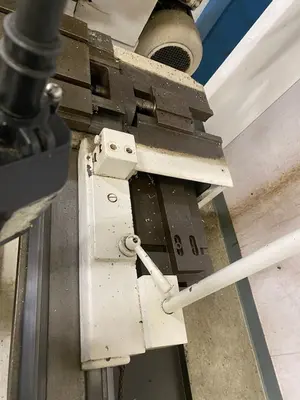

Taper Attachment
Threading (Inch-Metric Full-Length Lead Screw)

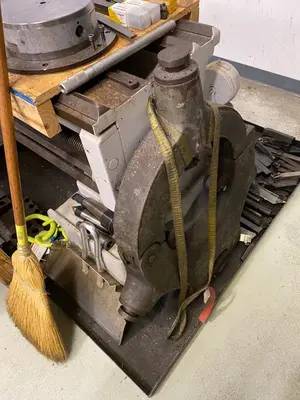

18" 3-Jaw Chuck w/Jaws - 4-Way Tool Post
Hardened & Ground Bed Ways
Power Rapid Traverse (Inoperable)

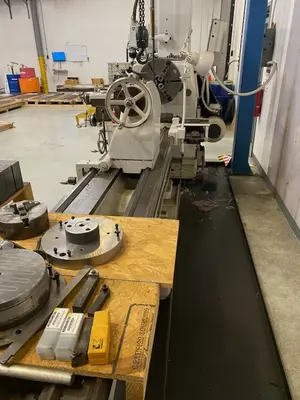

Centers - Small Amount Of Tooling
