LODGE & SHIPLEY Rxe2516
Have one to sell?
ConditionUsed
1 available

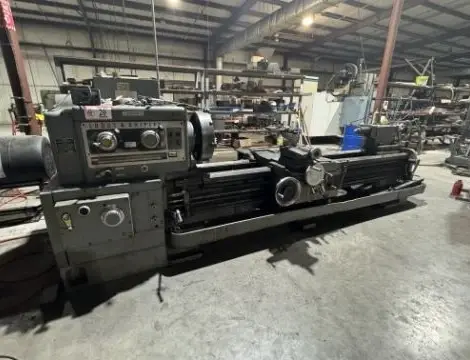

Lodge & Shipley Rxe2516 used lathe. Features include a 26.5" swing, 96" centers, 2.5" spindle bore, and 30 hp. Equipped with a 20" 4-jaw chuck, steady rest, and full coolant system.
Hole Thru Spindle 2.5"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 26.5"
Swing Over Carriage Wings 26.5"
Swing Thru Gap 40"
Length Of Gap 20"
Swing Over Cross-Slide 20"
Distance Between Centers 96"
Cross-Slide Cross-Feed Travel 18.5"
Top-Slide Cross-Feed Travel 5.25"
Tailstock, Spindle Diameter 4"
Tailstock, Spindle Travel 11"
Tailstock, Spindle Taper #5 MT
(24) Spindle Speeds Range, Forward 18 to 1000 RPM
(16) Spindle Speeds Range, Reverse 18 to 250 RPM
(55) Carriage Longitudinal Feeds .0025 to .160 IPR
(55) Thread Changes, Range 1 to 64 TPI
Main Motor, Horsepower/RPM 30 HP/1750 RPM
Floor Space Required, L x D 16'2" x 5'7"
Weight, Approximately 13500 LBS

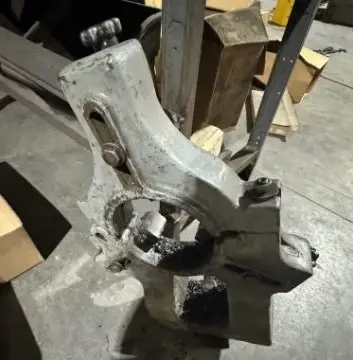

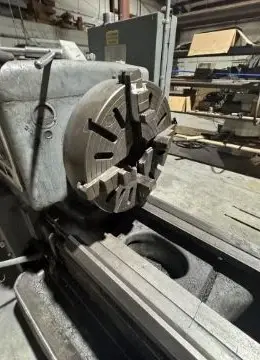

20" 4-Jaw Chuck w/Jaws - Steady Rest - 8"-D1 Spindle Nose
Gap Block & Gap Carriage
Replaceable Hardened & Ground Bed & Crosslide Ways
Quick Change Gear Box and Threading Dial
Full Length Coolant-Chip Pan and Coolant System
Two-Speed Heavy-Duty Tailstock
