2006 OKUMA HERITAGE ES-L6II
Have one to sell?
ConditionUsed
1 available

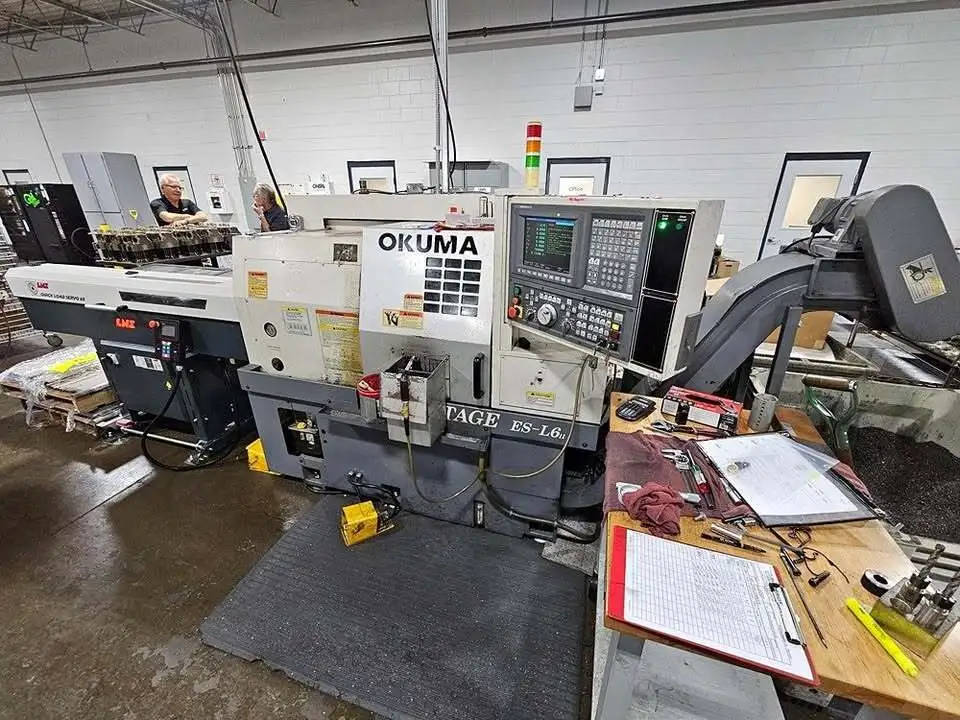

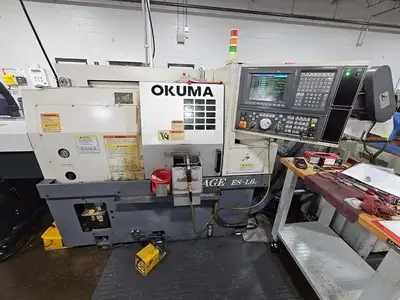

Used CNC Lathe. Features OSP-U10L CNC control, 12-position turret, programmable tailstock, and more. Specs: 8.27” turning diameter, 11.81” length, 7.5 HP, 133-6000 RPM spindle. Includes parts catcher, chip conveyor, LNS bar feed.
Swing/Carriage: 13.78”
Swing/Cross Slide: 11.81”
Max. Turning Diameter: 8.27”
Max. Turning Length: 11.81”
X Axis Travel: 6.1”
Z Axis Travel: 12.6”
Sindle Bore: 2.09”
Bar Capacity: 1.63”
Spindle Speeds: 133-6000 RPM
Rapids: 590 IPM X Axis, 787 IPM Z Axis
Spindle Nose: Type 140 Flat
Tailstock Taper: MT #4
Tailstock Travel: 3.15”
Spindle HP: 7.5 HP

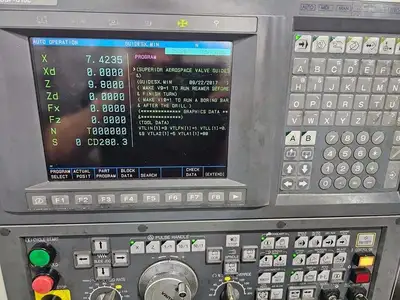

OSP -U10L CNC Control
Royal 16C Collet Nose
12 Position Turret
Programmable Tailstock
Parts Catcher
Chip Conveyor

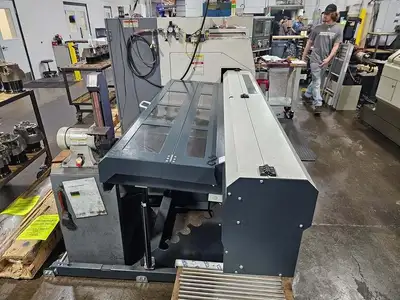

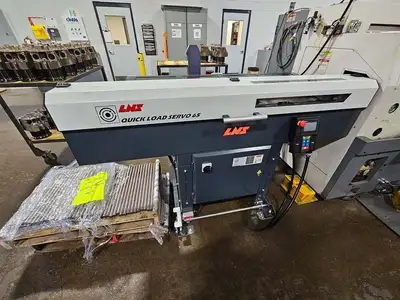

LNS Model Quick Load Servo 65 Magazine Bar Feed (*NEW 2024)
Approx. Weight: 6170 LBS.
