| Swing | 24" | 609.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Tailstock | Yes | Yes |
| Control | CNC (MAZATROL PC FUSION 640T) | CNC (MAZATROL PC FUSION 640T) |
CAPACITY:
Max Turning Diameter : 13.78″
Max Turning Length : 20.16″
Max Swing Over Bed: 24.02″
Max Bar Capacity : 2.60″
TRAVELS:
X Axis Travel : 7.50″
Z Axis Travel : 21.13″
FEEDRATE:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1299 IPM
SPINDLE:
Spindle Bore: 3.0″
Spindle Nose: A2-6
Spindle Speed: 5,000 RPM
Spindle Power: 35 HP
TURRET:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
TAILSTOCK:
Tailstock Taper: MT-5
Tailstock Quill Diameter : 4.33″
Tailstock Quill Travel : 3.93″
GENERAL:
Power Source: 40 kva / 208v / 50/60 Hz / 3-Phase
Overall Dimensions: 137″ X 80″ X 80″ High Approx.
Weight: 11,000 lbs. Approx.

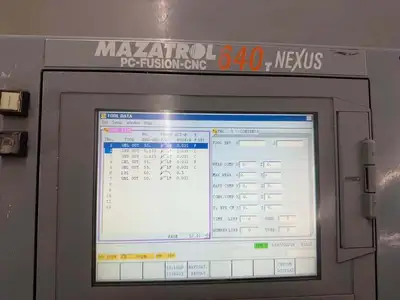

Mazatrol 640T CNC Control
8″ 3- Jaw Kitagawa B208 Chuck
12 Stations Automatic Turret
Automatic Tool Presetter
Tailstock
Rigid Tapping
Automatic Lubrication System
Foot Operated Control for Chuck
Coolant System
Chip Conveyor
Tool Holders (Mounted on Turret as Shown in the images)
This equipment is currently unavailable. Similar equipment available now is shown below.
