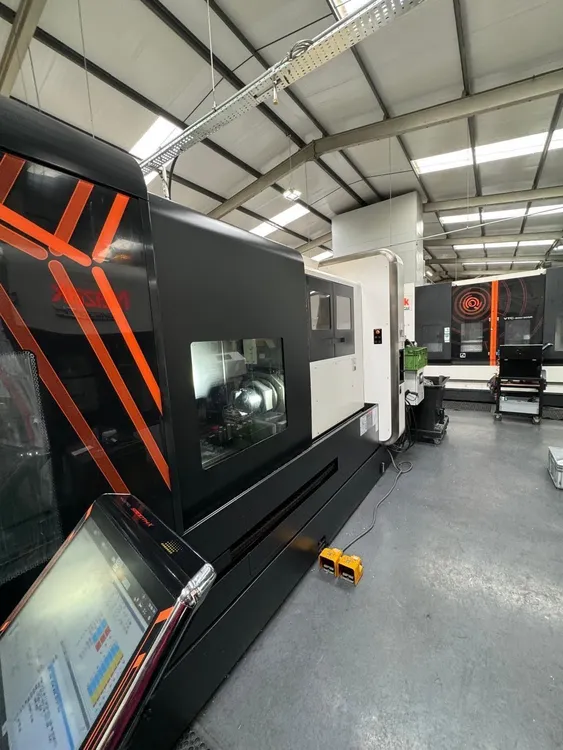

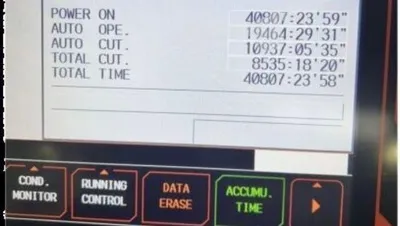

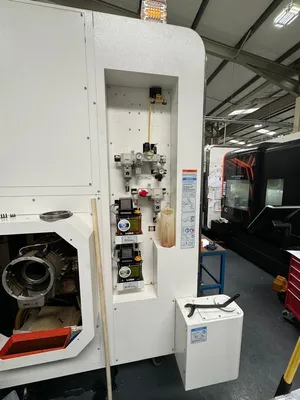

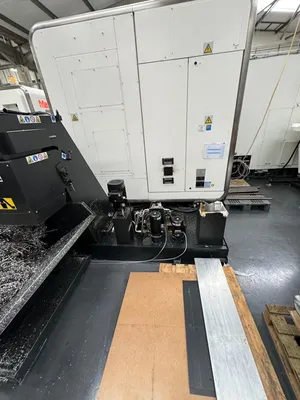

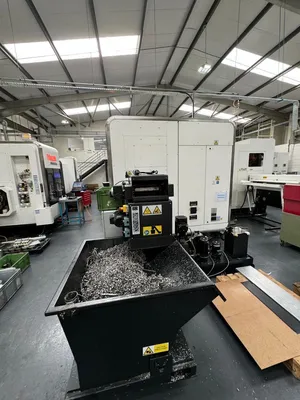

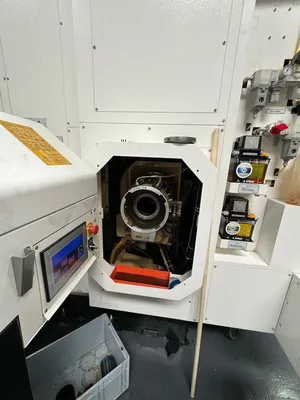

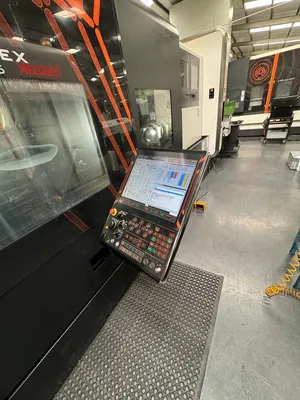

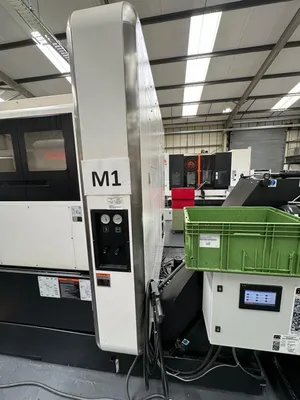

2018 MAZAK INTEGREX I-400S-2500U

General Capacity
Max swing over cross slide: Ø658 mm (25.9")
Max machining diameter (upper turret): Ø658 mm (25.9")
Max machining length: 2,497 mm (98.31")
Max bar work capacity: Ø102 mm (4.02")
Axis Travels
X-axis travel: 615 mm (24.21")
Y-axis travel: 260 mm (10.24")
Z-axis travel: 2,563 mm (100.91")
W-axis travel (sub-spindle): 2,175 mm (85.63")
B-axis indexing range: -30° to +210°
B-axis minimum indexing increment: 0.0001°
Main Spindle
Chuck size: 12"
Spindle speed: 1 – 3,300 rpm
Spindle nose: A2-8
Spindle bore: Ø112 mm (4.41")
Bearing ID: Ø150 mm (5.91")
Minimum spindle indexing increment: 0.0001°
Second (Sub) Spindle
Chuck: 10" hydraulic through-hole chuck (B-210A0815X)
Spindle speed: 1 – 4,000 rpm
Spindle nose: A2-8
Spindle bore: Ø91 mm (3.58")
Bearing ID: Ø130 mm (5.12")
Minimum indexing increment: 0.001°
Milling Spindle
Type: Spindle turret with ATC
Max speed: 12,000 rpm
Max torque: 120 Nm (88.5 ft-lbs)
Tooling & ATC
Tool holder shank: HSK-A63 (T63)
Tool storage capacity: 72 tools
Max tool diameter:
Ø90 mm (3.54")
Ø125 mm (4.92") with adjacent pockets empty
Max tool length (from gauge line): 400 mm (15.75")
Max tool weight: 12 kg (26.46 lbs)
Tool Sizes
Turning tool shank height: 25 mm (1")
Boring bar shank diameter: Ø40 mm (1.5")
Rapid Traverse Rates
X-axis: 50 m/min (1,969 ipm)
Y-axis: 40 m/min (1,575 ipm)
Z-axis: 40 m/min (1,575 ipm)
W-axis: 30 m/min (1,181 ipm)
