2012 JOHNFORD BMC-110

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Horizontal Table Type Boring Mills
Manufacturer:
JOHNFORD
Model:
BMC-110
Year:
2012
Stock #:
X3X2916
Status:
For Sale

Description

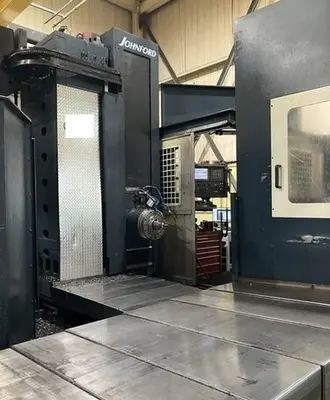

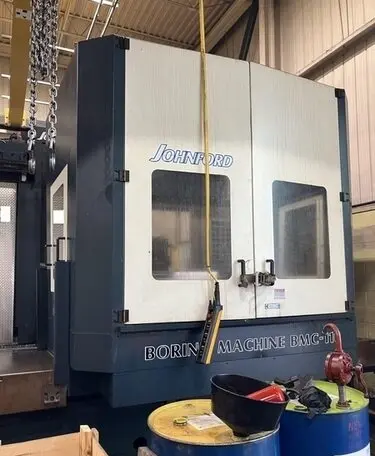

2012 Johnford BMC-110 Horizontal Table Type Boring Mill featuring a 4.33" spindle, Fanuc 31iMB control, and full “B” axis rotary table. Enjoy 78.7" X travel, 70.8" Y travel, and 35 hp power. Includes 300 PSI coolant and chip conveyor.

Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table78.7"1,999 mm
Y-Vert Tvl of Head70.8"1,798.3 mm
Power35 hp26.1 kW
RPM3,000 RPM3,000 RPM
Table-W55"1,397 mm
Table-L63"1,600.2 mm
Spindle Tvl.21.65"549.91 mm
ControlCNC (Fanuc)CNC (Fanuc)

Fanuc 31iMB Control
CAT 50 Spindle Taper, 2
Step Spindle Speed, 2
Speed Gearbox
Linear Scales
Full “B” Axis Rotary Table w/ Scale

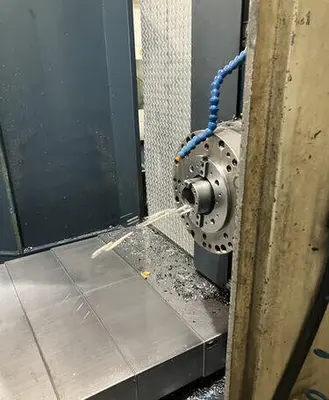

300 PSI Coolant Thru Spindle

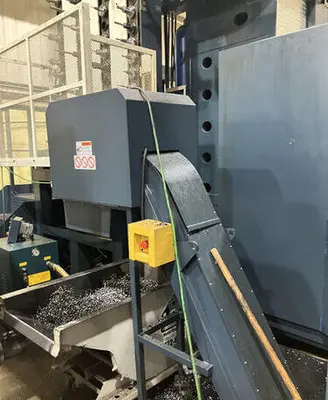

Chip Conveyor
Spindle and Gearbox Cooler
