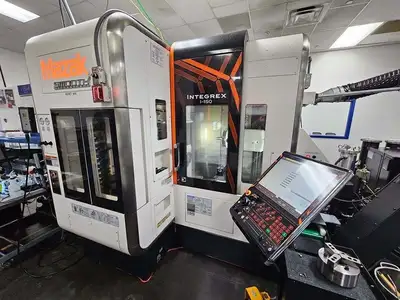

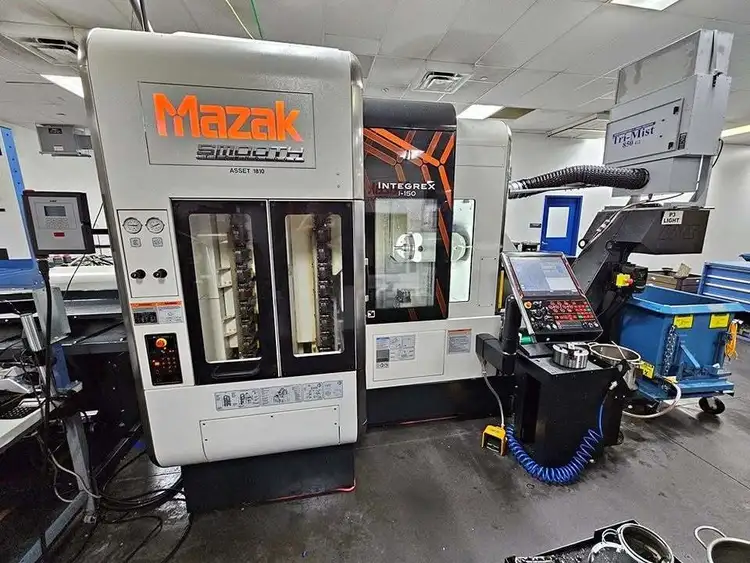

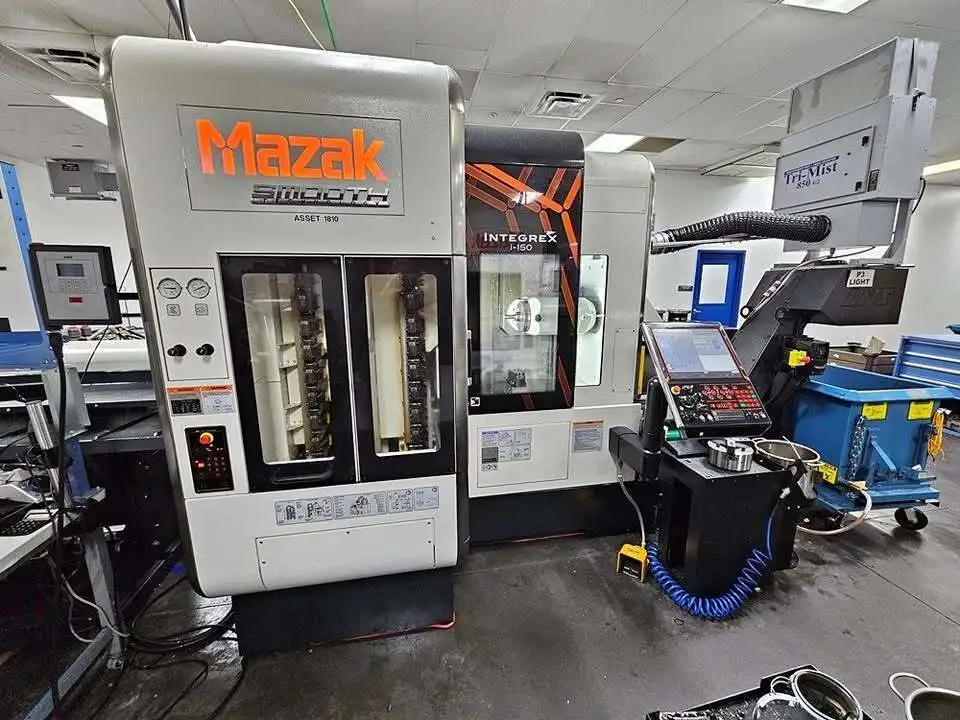

Used 2018 MAZAK INTEGREX I150 | 5-Axis or More CNC Lathes
Have one to sell?
ConditionUsed
1 available
MAZAK Integrex I150, 2018, used 5-axis CNC lathe with 15 HP, 5,000 RPM spindle. Specifications include a 15.75" swing, 15.16" machining length, 8" hydraulic chuck, Mazatrol Smooth CNC control, and high-speed machining options. Equipped with LNS S80 barfeeder.
X-Travel: 14.67″
Z-Travel: 17.13″
Distance Between Centers: 16″
Max Swing Over Bed: 16.76″
Max Turning / Cutting Length: 15.16″
Max Cutting / Turning Diameter: 13.39″

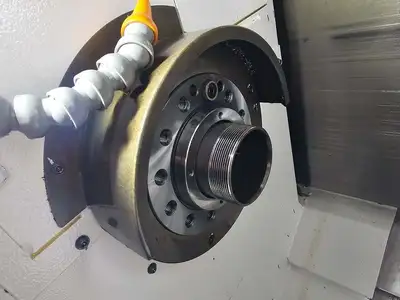

Spindle:
Bar Capacity: 2.50″
Chuck Size: 8.0″
Chuck Type: Hydraulic
Spindle Bore: 2.65″
Spindle Speed: 5,000 RPM
Spindle Motor: 15 HP

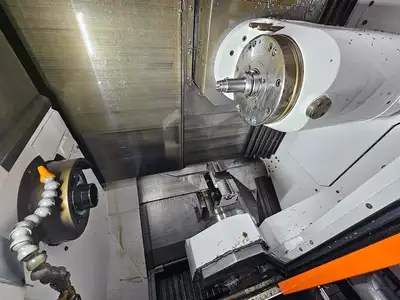

Second Spindle B Axis:
Total Spindles: 2
Work Hand Turret/ 2 Functions Tailstock & Vise
ATC, Tool Positions: 72
Live Milling Max RPM: 20000 RPM
Control Make/Model: Mazatrol Smooth CNC Control
Control Options: High Speed Machining;Synchronized Tapping;Inch/Metric Conversion;Rotation and Scaling;EIA/ISO Code Input Function;Expanded Memory
Additional Control Options:
High Smoothing Control
Spiral
EIA 3D Comp
Geometric Ext-Data I/O
Shape Comp
Thread
Inverse Time
Dynamic Compensation – Floating ZERO
3D Co-Or Rot
Polar Coordinates Input
Comparison Stop
Spline
Work Setting Error Compensation – G-54.1
Rot-Axis Shape
G00 Slope
EIA Herical Tap Cycle
EIA Pattern Cycle
2nd AUX Function
Tilted Working Plane
5-Axis Tool Comp
Tool Center Point Control
20 Gigs of Program Storage
32 Megs of Ram
Absolute Encoders
5-Axis Machining Package (Software For Full Contouring)
F-Tool Radius 5-Axis Software
Tailstock / Steadyrest
Tailstock: Equipped With
Programmable Tailstock: Equipped With
Options
Machine Options: Parts Catcher;Tool Presetter;Automatic Tool Length Measurement System;Tool Eye
Additional Machine Specs: Y-Axis Stroke: 8.27″
HSK-63

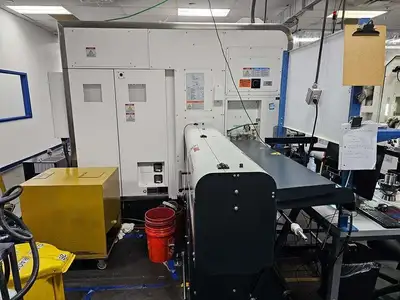

LNS S80 Barfeeder
Coolant Through the Mill-Head
Tail Center attachment
5 Axis machining Pkg (software for full contouring)
lower unit with tailstock and vise configuration
Preparation for 1,000 PSI Coolant Pressure
2″ Spindle Liner

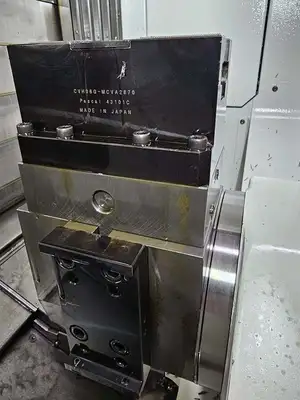

Work Hand (2-Jaw Vice)
Work unloading hand – parts catcher
Y-Axis Ballscrew Cooling Package
Workpiece Cleaning Coolant
Turret Air Blast
Magazine Side Tool Breakage Detection
Chip Conveyor Side Discharge
Mist Collector Preparation
F-Tool Radius 5 Axis Software
Dynamic Compensation – Floating ZERO
Work setting error compensation G 54.1
Signal Tower 3-Colors
MT-Connect Adaptor
Coolant Types: High Pressure Coolant
Coolant PSI: 1,000 PSI
High Pressure Coolant PSI: 1,000 PSI
Chip Removal: Chip Conveyor
Probe Make/Model: Renishaw RMP600 Probe with Inspection Plus
Barfeeder Make/Model: LNS S80 Barfeeder
