2011 HAAS VM-3
Have one to sell?
ConditionUsed
1 available

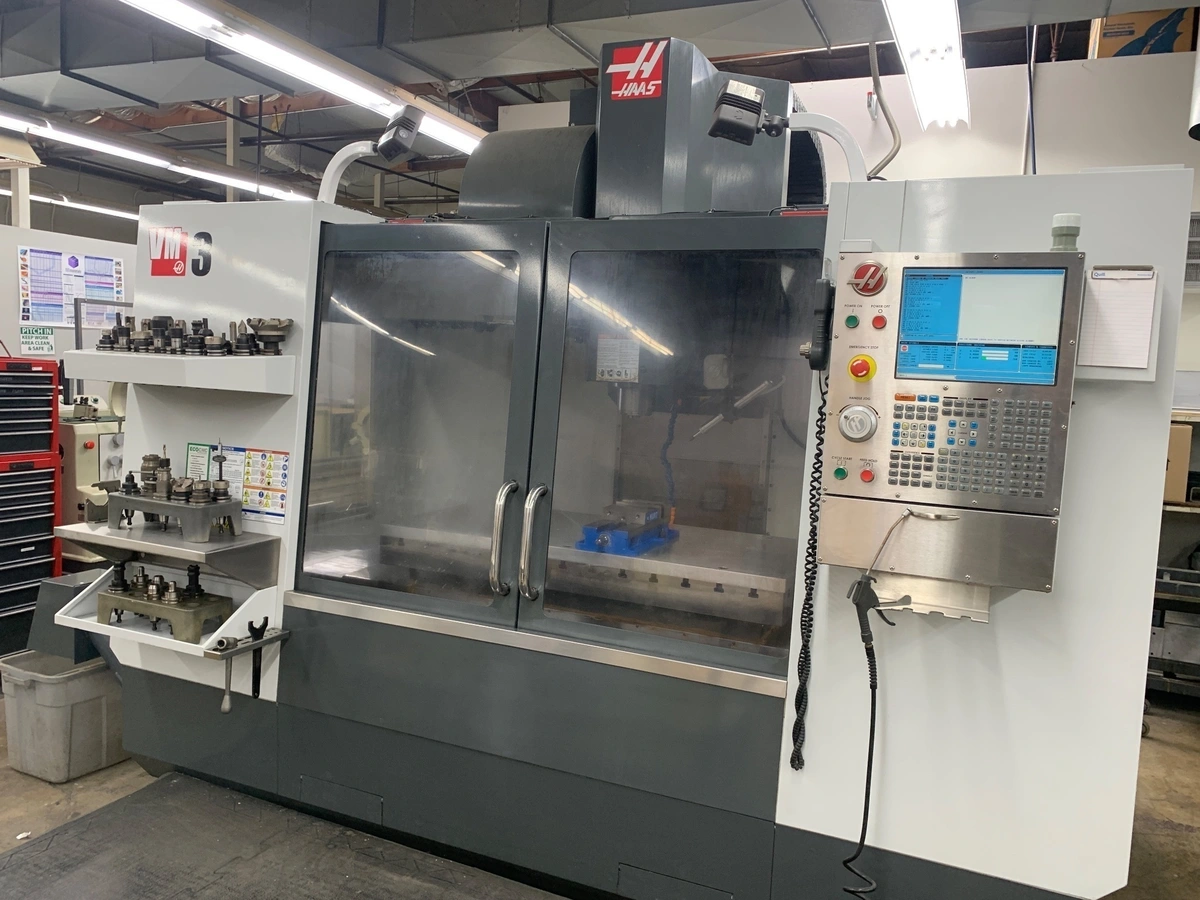

Used Vertical Machining Center: 40x26x25" travels, 30 hp, 12,000 RPM, CT 40 taper, 24 ATC. Features include wireless probing, programmable coolant, high-intensity lighting, and 4th axis ready. Equipped with Haas HRT 210 Rotary, KURT Vise, and more.
X 40"
Y 26"
Z 25"
Power 30 hp
RPM 12,000 RPM
# ATC 24
Taper CT 40
Table-W 25"
Table-L 54"
# Axis 3
- Wireless Intuitive Probing
- Programmable Coolant
- High Intensity Lighting
- 4th Axis Ready
- Automatic Airgun
- Toolholders shown in pictures

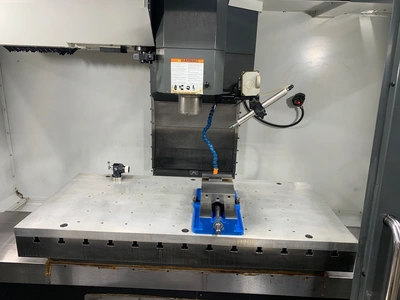

- KURT Vise shown in pictures
- Fixture plate shown in pictures
- Haas HRT 210 Rotary
- Bison 8" Manual Chuck
- TBS-210-20 The Haas Tooling Block System is made from 6061-T6 aluminum alloy, and can be machined to meet your requirements.
The system includes the aluminum tooling block, an outboard A-frame support and a steel mounting plate. Tooling block measures
20" (508 mm) long × 4.5" (114 mm) square.
