Used 2013 MATSUURA VX-1000 | Vertical Machining Centers

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
VX-1000
Year:
2013
Stock #:
X2X2871
Status:
For Sale

Description

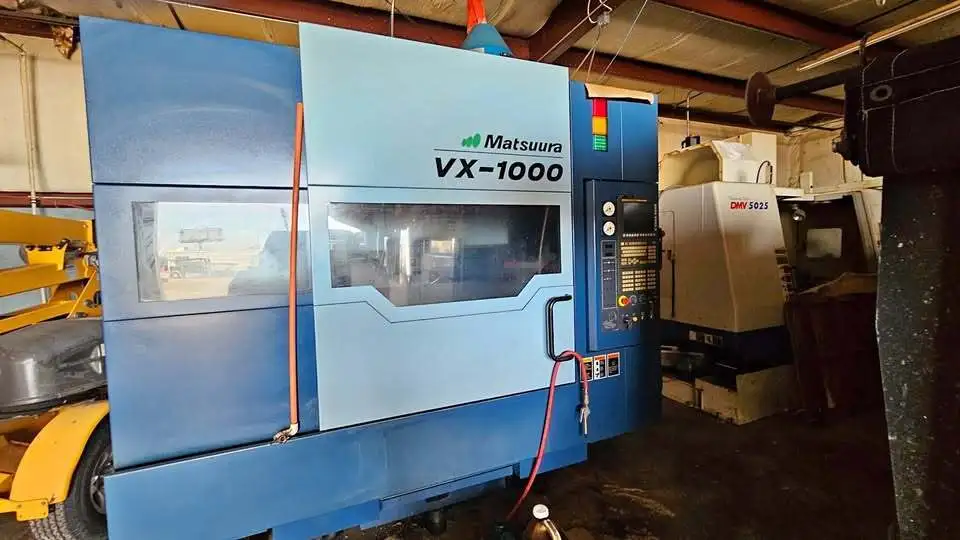

2013 MATSUURA VX-1000, equipped with FANUC FS31iB, features a 20,000 RPM spindle, and a Big Plus CAT 40 taper. It has a 1,020 mm x 610 mm work area and supports up to 1,100 lb. Includes spindle chiller and chip conveyance system.

X1,020 mm40.158"
Y610 mm24.016"
Z610 mm24.016"
RPM20,000 RPM20,000 RPM
# ATC3030
TaperBig Plus CAT 40Big Plus CAT 40
Table-W600 mm23.622"
Table-L1,200 mm47.244"
# Axis33
ControlCNC (Fanuc)CNC (Fanuc)

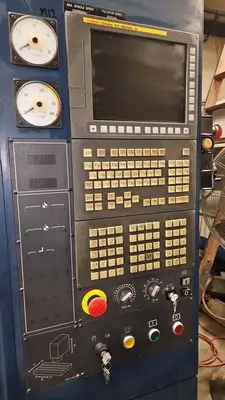

FANUC FS31iB control
1100 lb. loading capacity

Thru spindle air blow
300 psi thru spindle coolant capable
Spindle chiller
Data server package - 1000 block look ahead MMU package and nano smoothing
Twin under table chip augers, coolant wash down
Lift up chip conveyor
Manuals

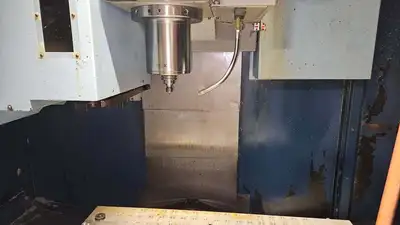

New (20K RPM) Maxia spindle
New X axis ball screw assembly and linear ways

Used exclusively for aluminum vacuum molds which typically ran from 24 hours up to over 100 hours per mold.
